Saturn
>>
2004
>>
L Series L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Lock Actuator Position Sensor
Power Trunk / Liftgate Lock Actuator Position Sensor

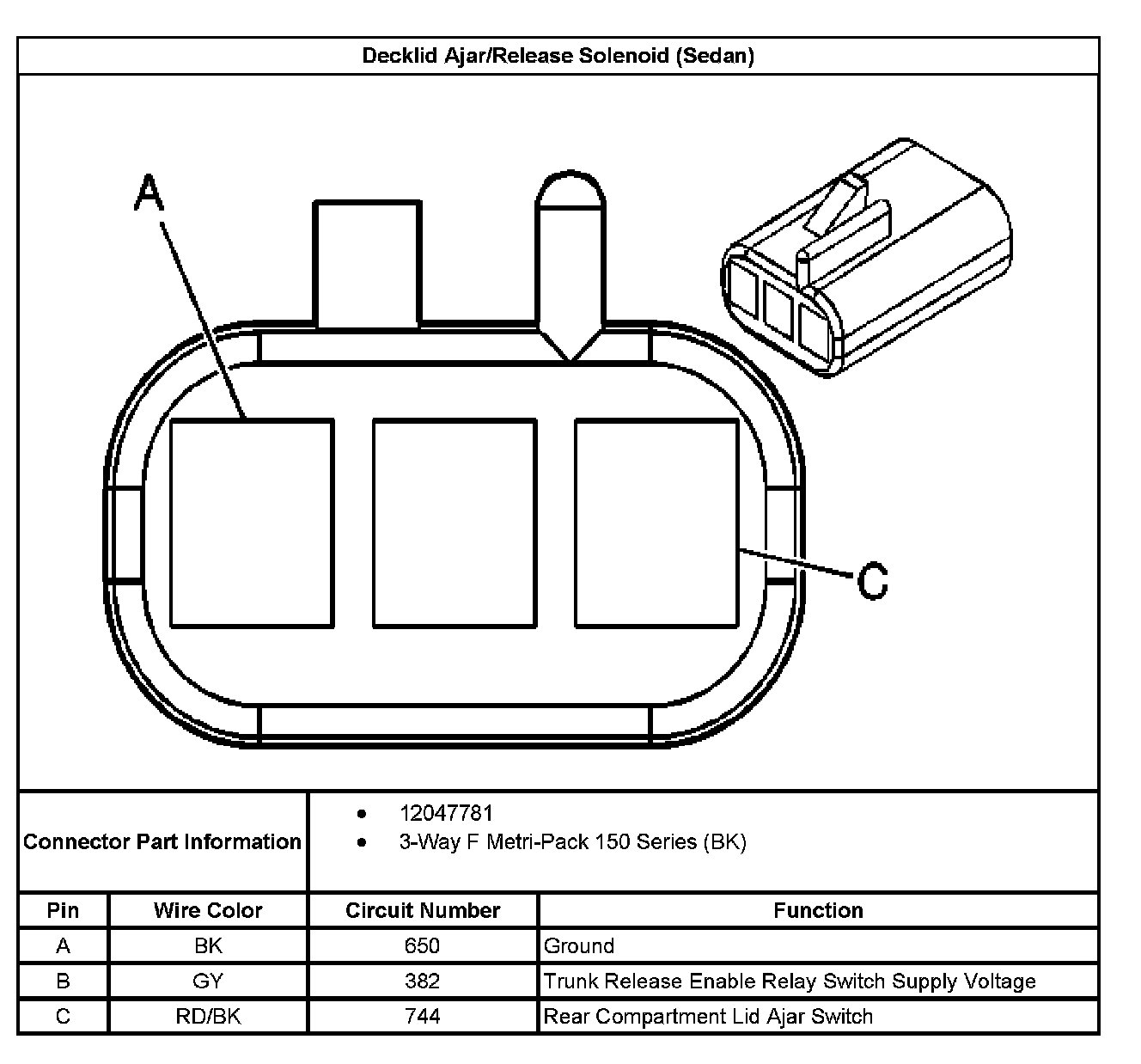

Decklid Ajar/Release Solenoid (Sedan):
