Impact Sensor

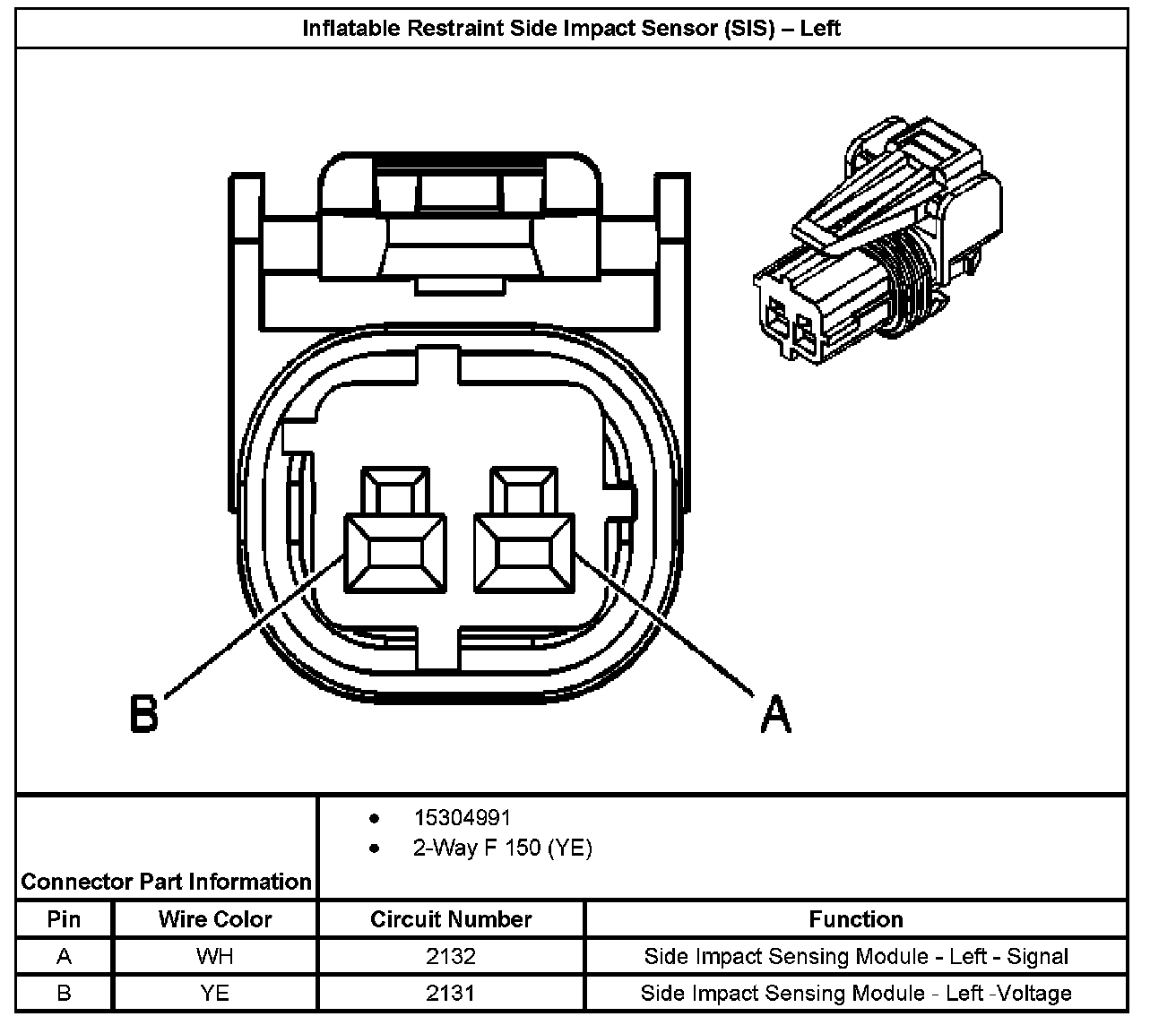

Inflatable Restraint Side Impact Sensor (SIS) - Left:

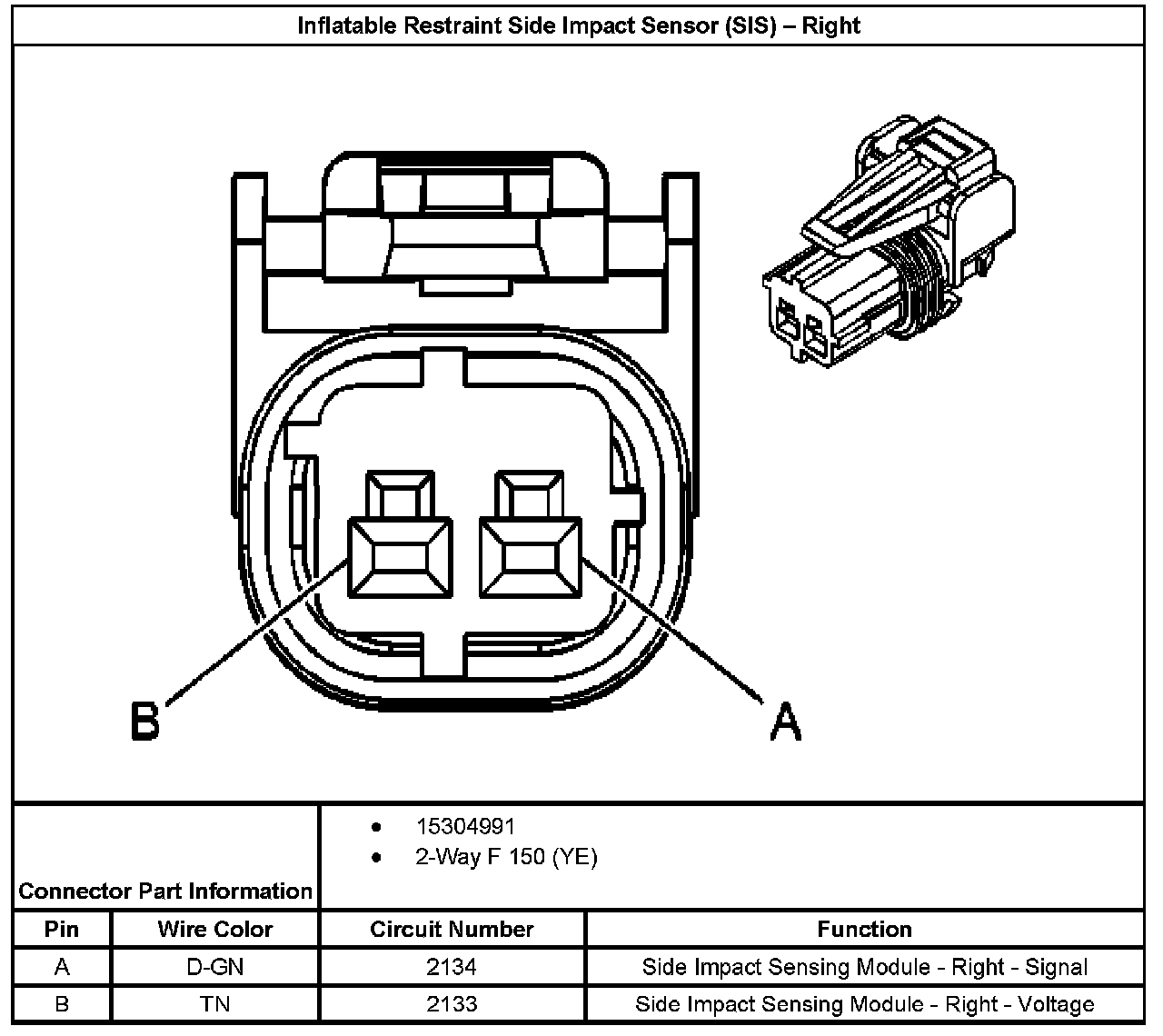

Inflatable Restriant Side Impact Sensor (SIS) - Right:
