Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dome Lamp

Dome Lamp

Dome Lamp:

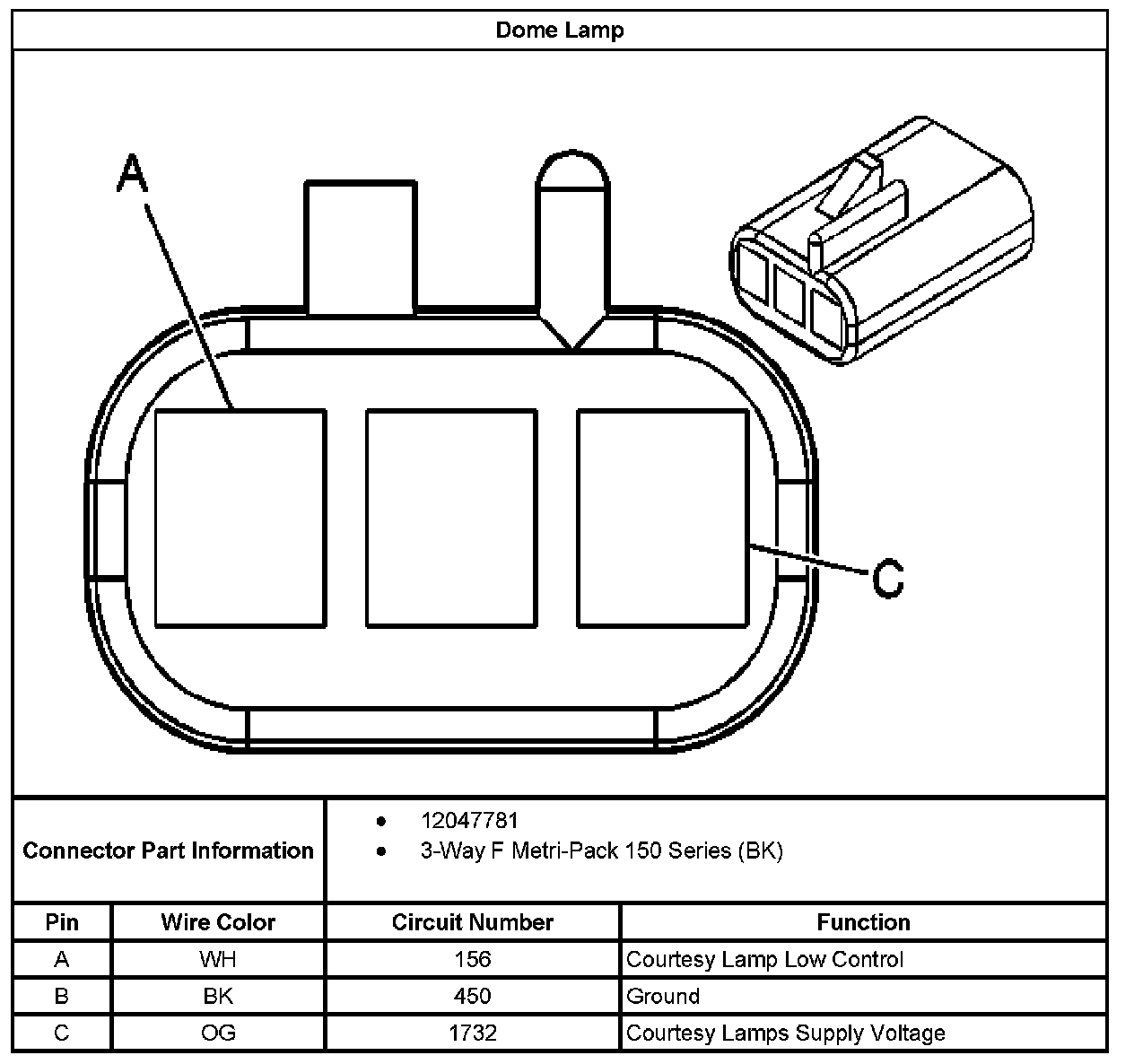

Dome Lamp - (Sedan):

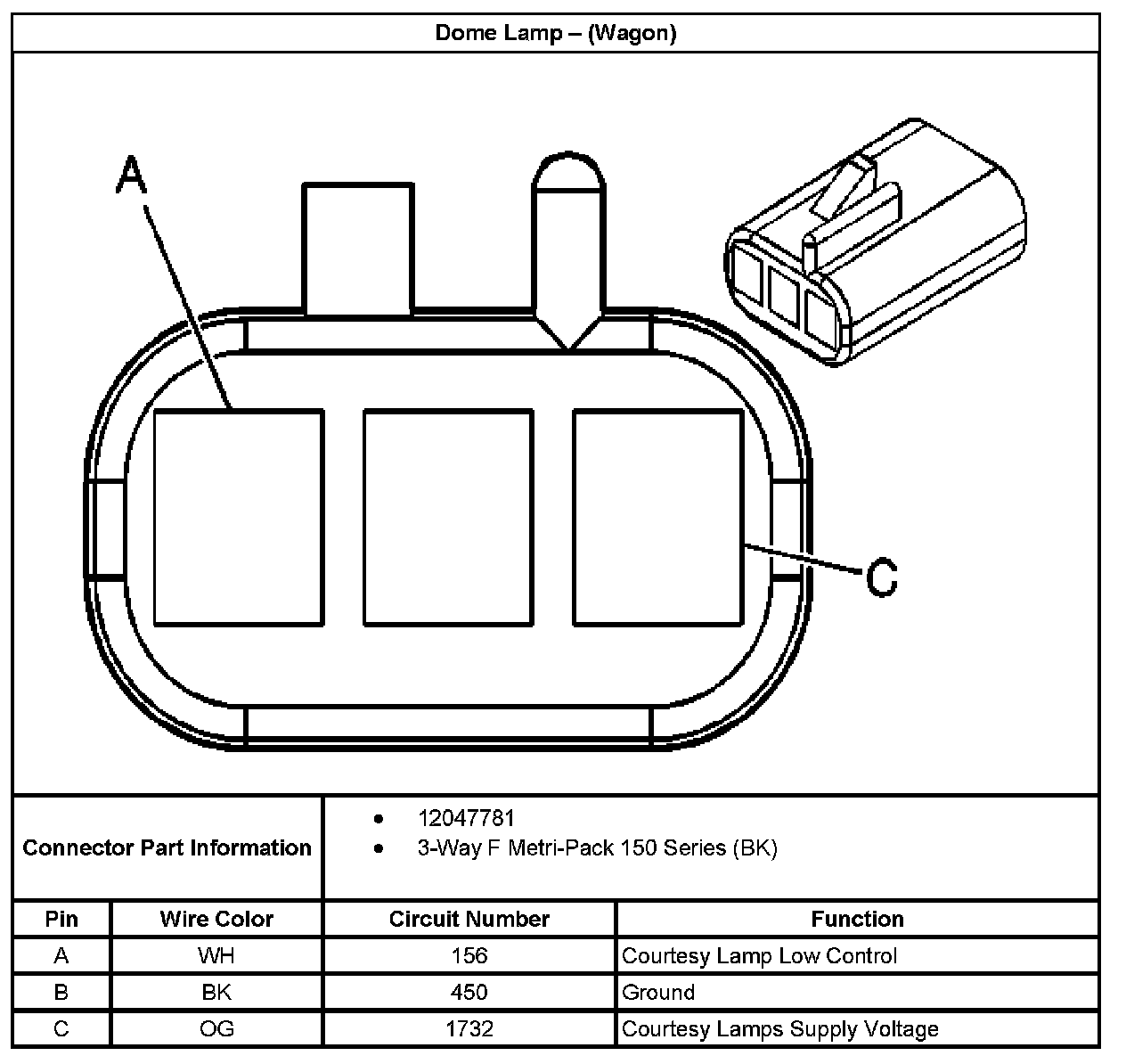

Dome Lamp - (Wagon):
