AF23-5 Automatic Transaxle
>>
Module Power, Ground, DLC, PNP Switch Signals...
Module Power, Ground, DLC, PNP Switch Signals...

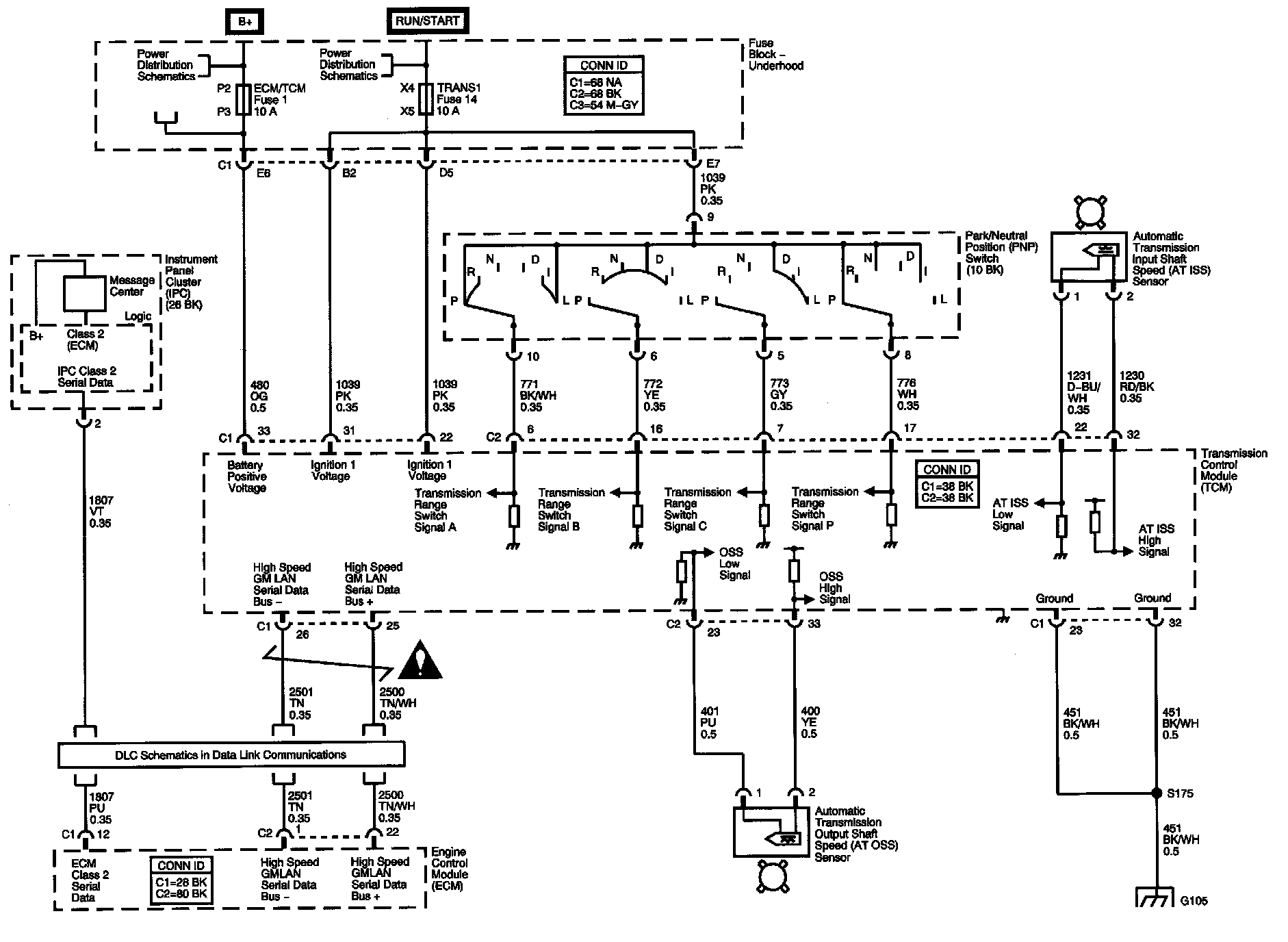

Automatic Transmission Controls Schematics (Module Power, Ground,
DLC
, PNP Switch Signals, Speed Signals, and Low Center Control
