Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Output Gear Assembly

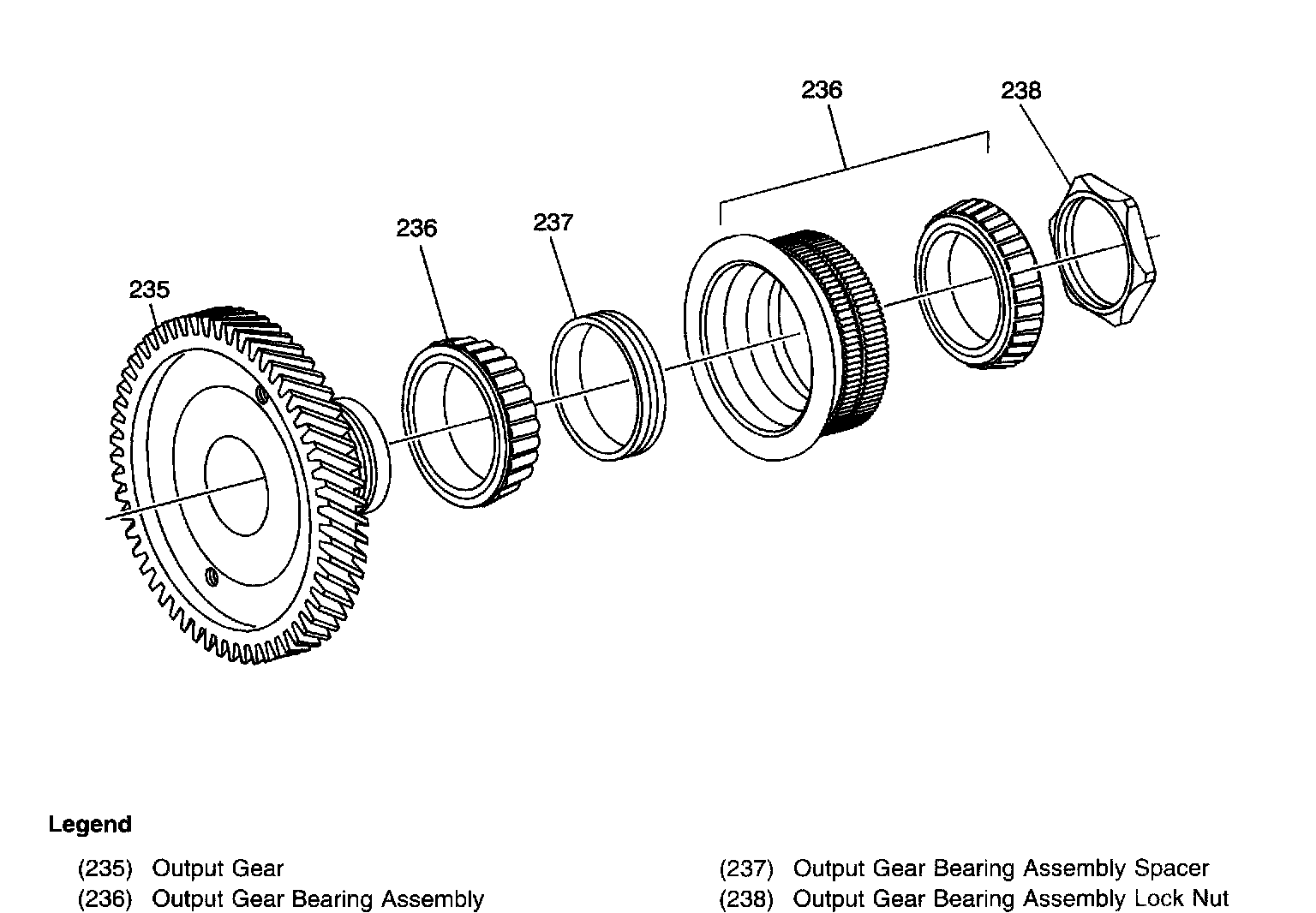

Output Gear Assembly

Output Gear Assembly
