Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Front Differential Assembly

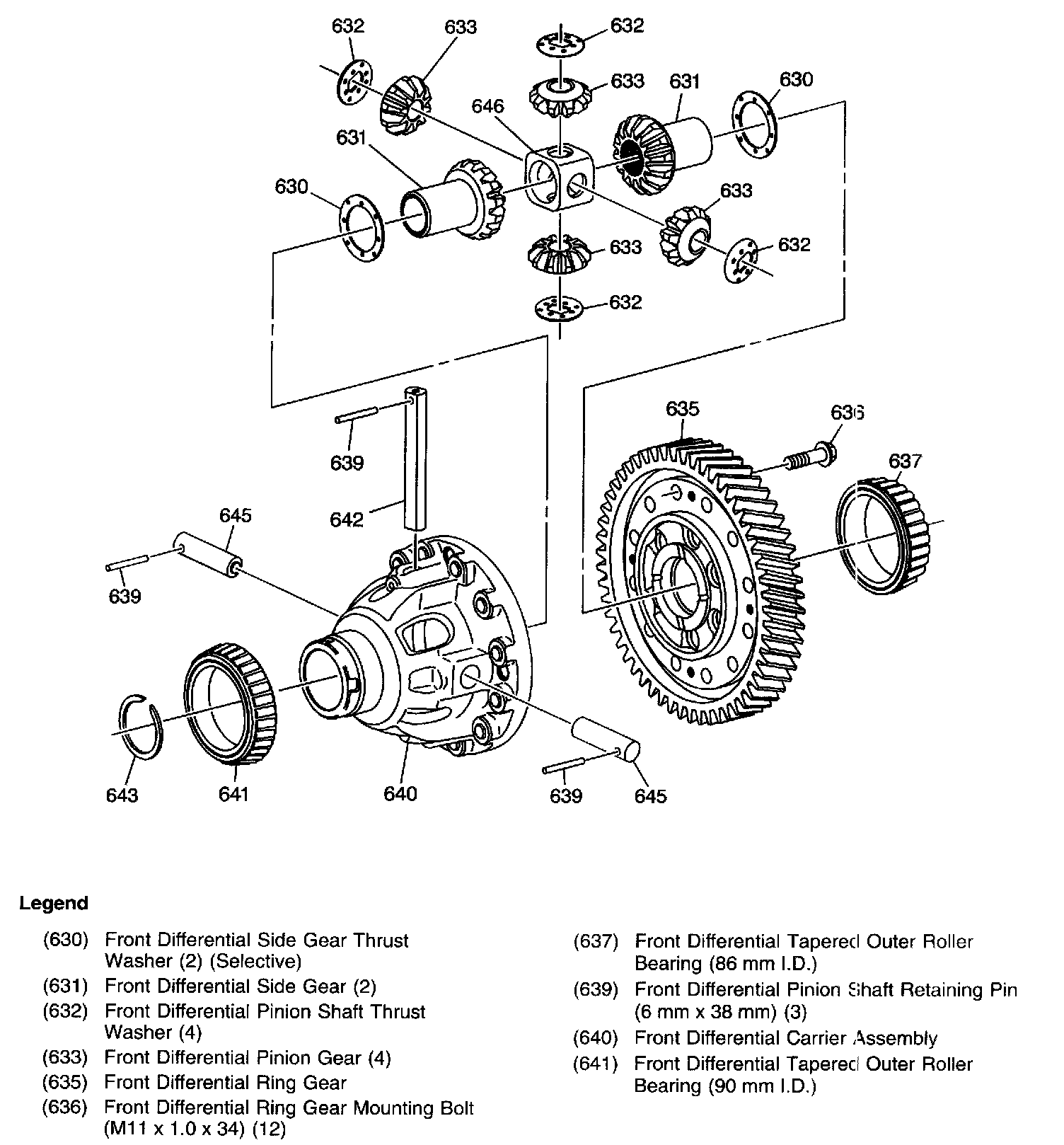

Front Differential Assembly

Front Differential Assembly
