Automatic Transmission Controls Schematics (Module.........
Automatic Transmission Controls Schematics (Module.........

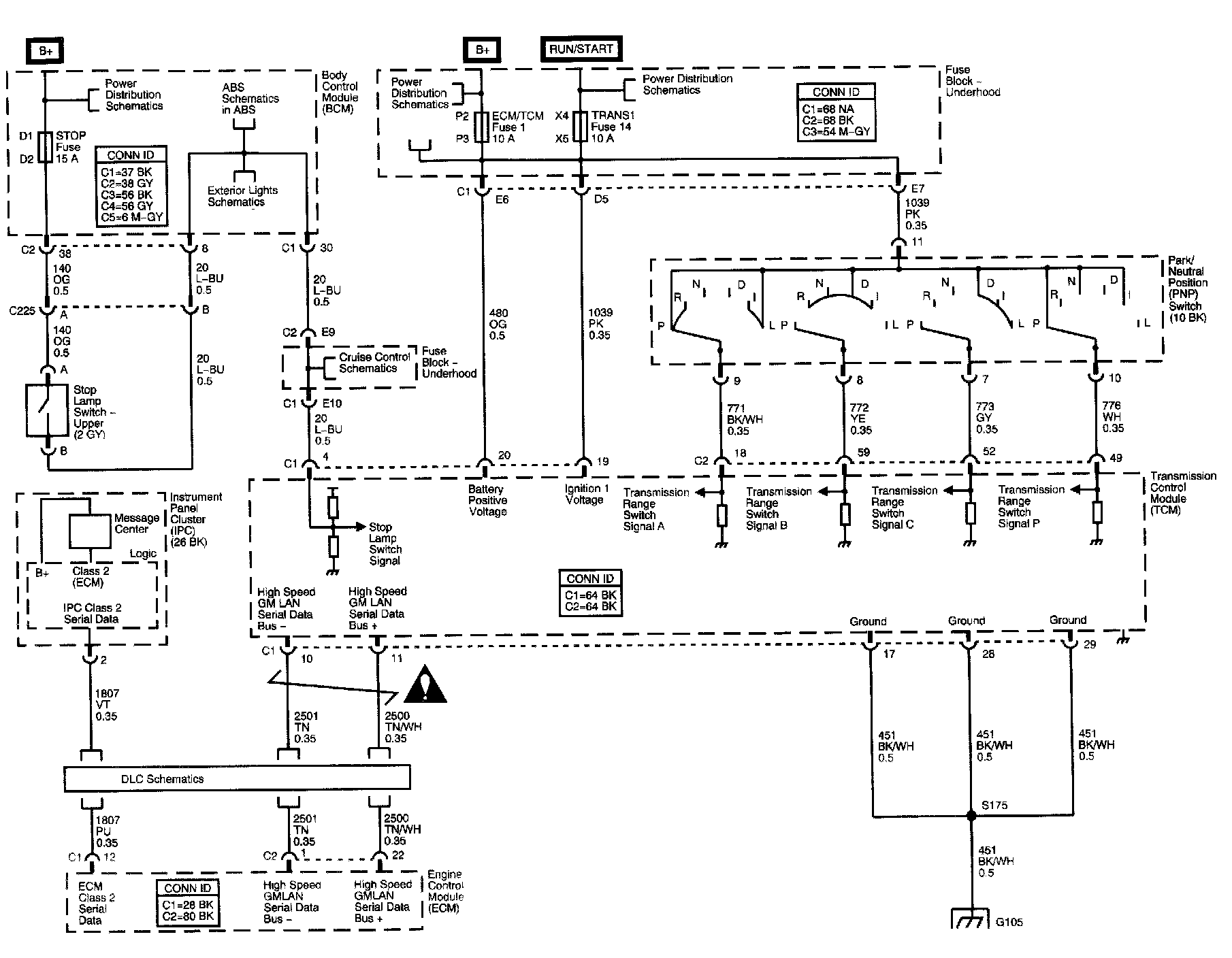

Automatic Transmission Controls Schematics (Module Power, Ground,
DLC
, PNP Switch Signals and Message Center Controls)
