Saturn
>>
2004
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Systems
Body Control Systems

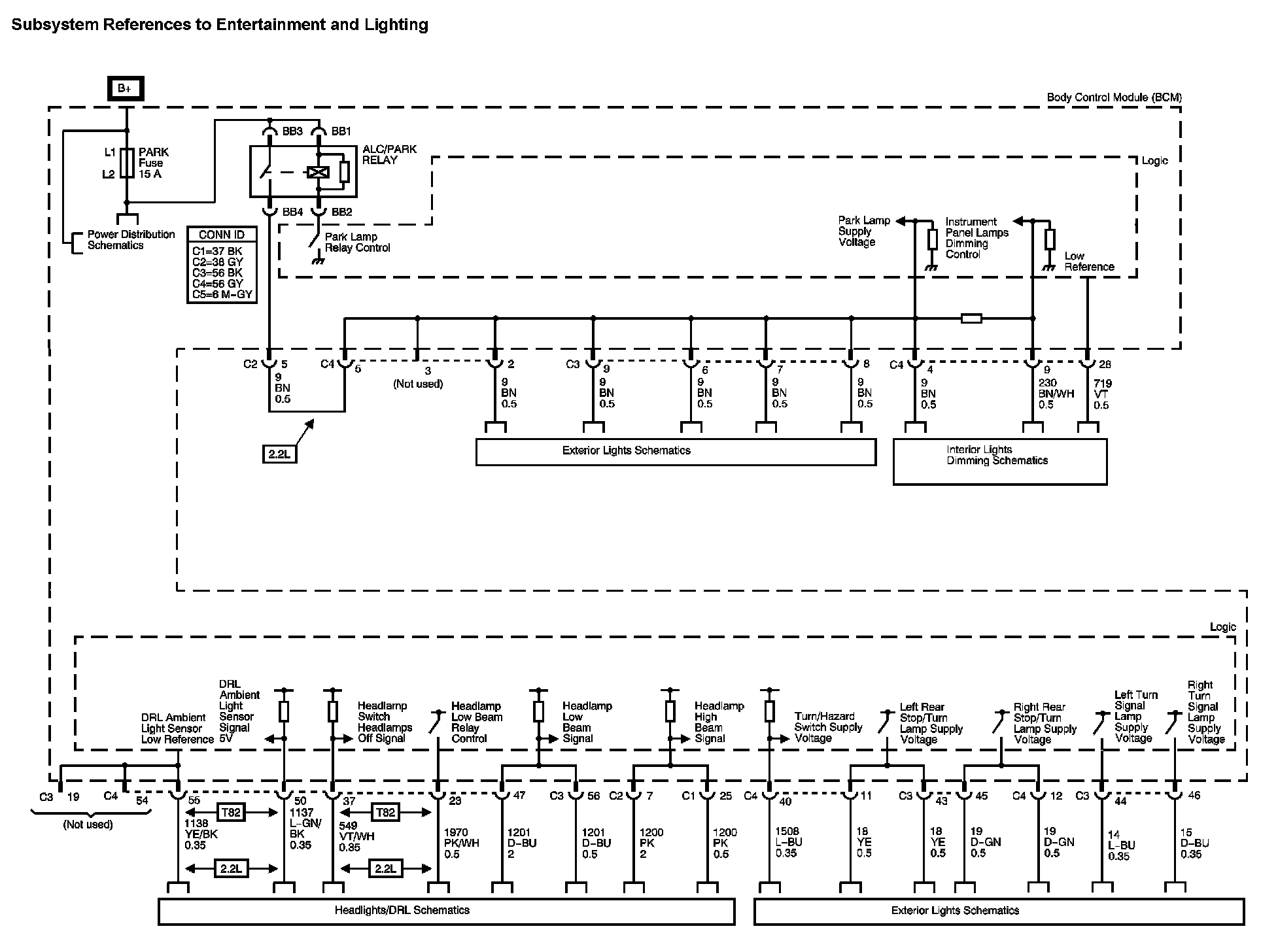

Body Control System Diagram 1:

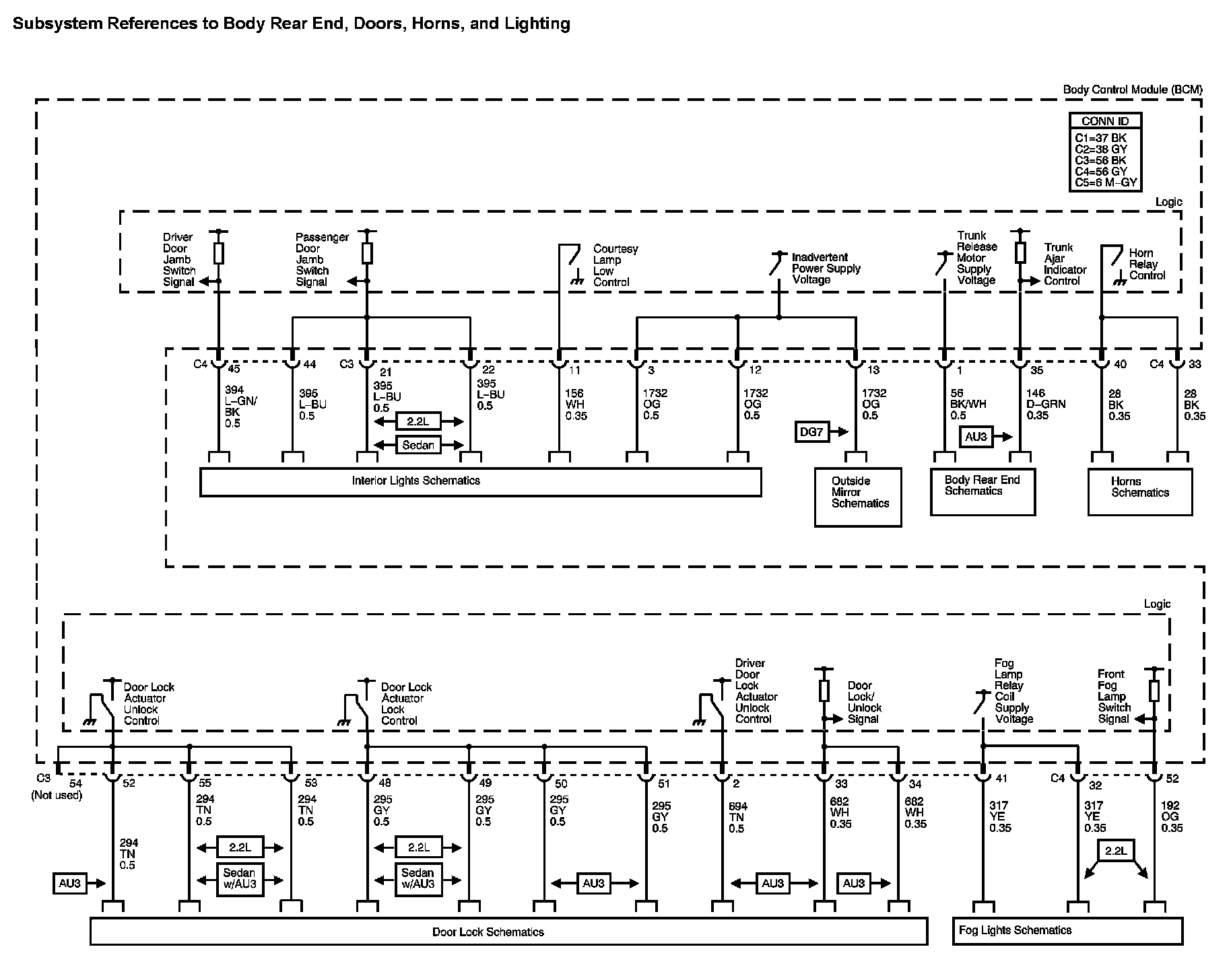

Body Control System Diagram 2:

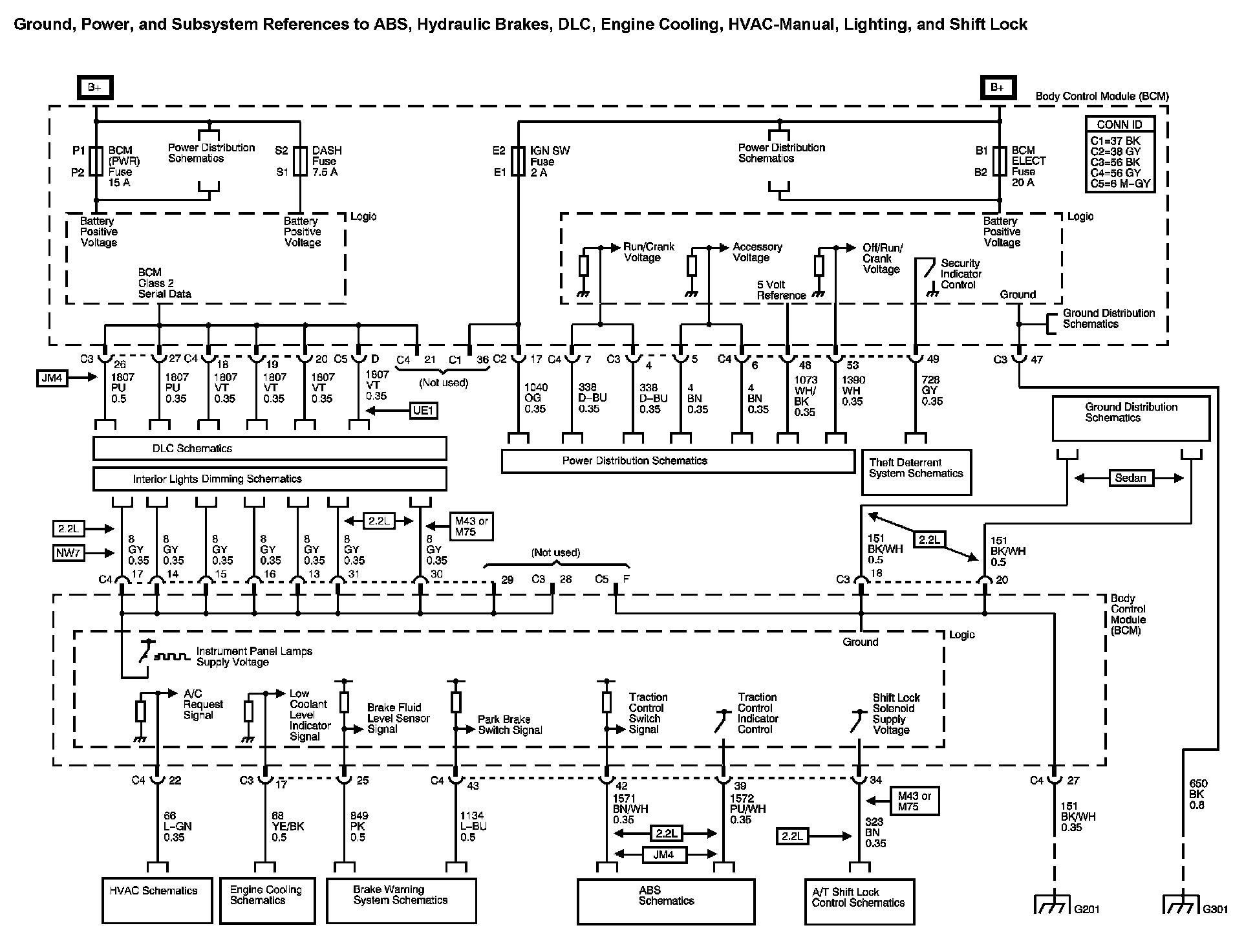

Body Control System Diagram 3:
Body Control System Diagram 4:
