Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System

Amplifier, Sound System

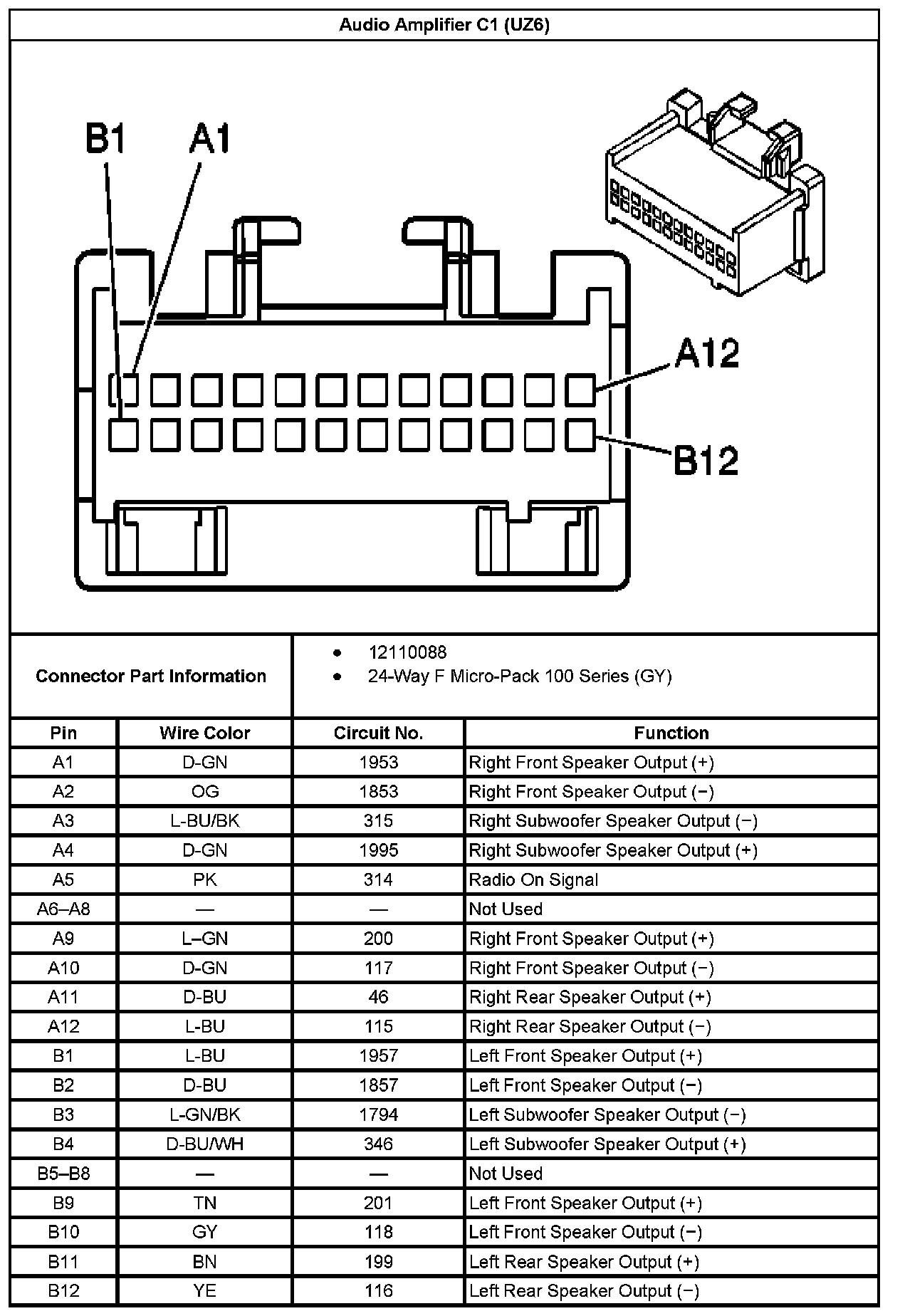

Audio Amplifier C1 (with RPO Code UZ6):



Audio Amplifier C2 (with RPO Code UZ6):
