Saturn
>>
2003
>>
VUE V6-3.0L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C1
C1

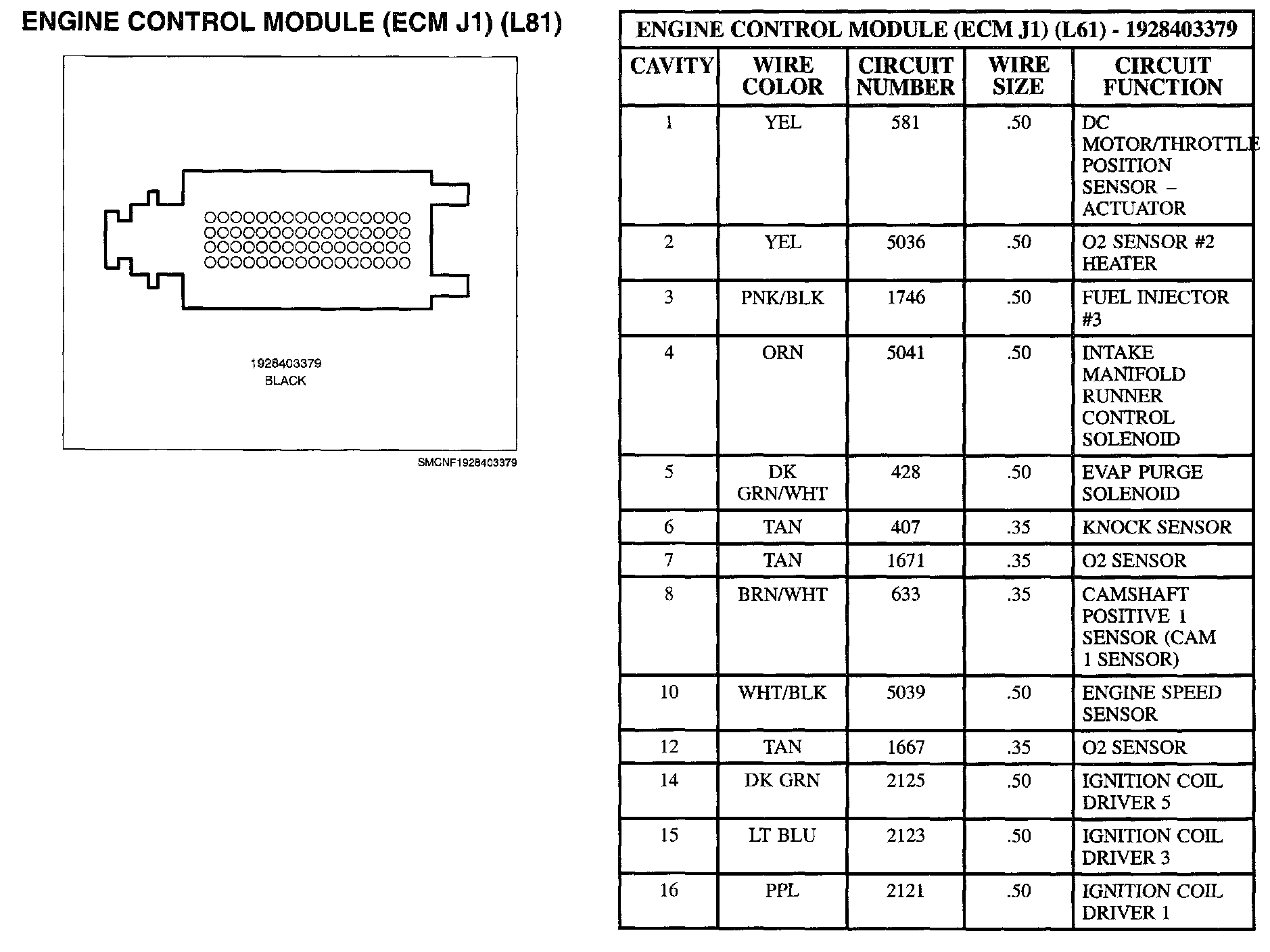

Engine Control Module (ECM J1) (L81) Part 1:

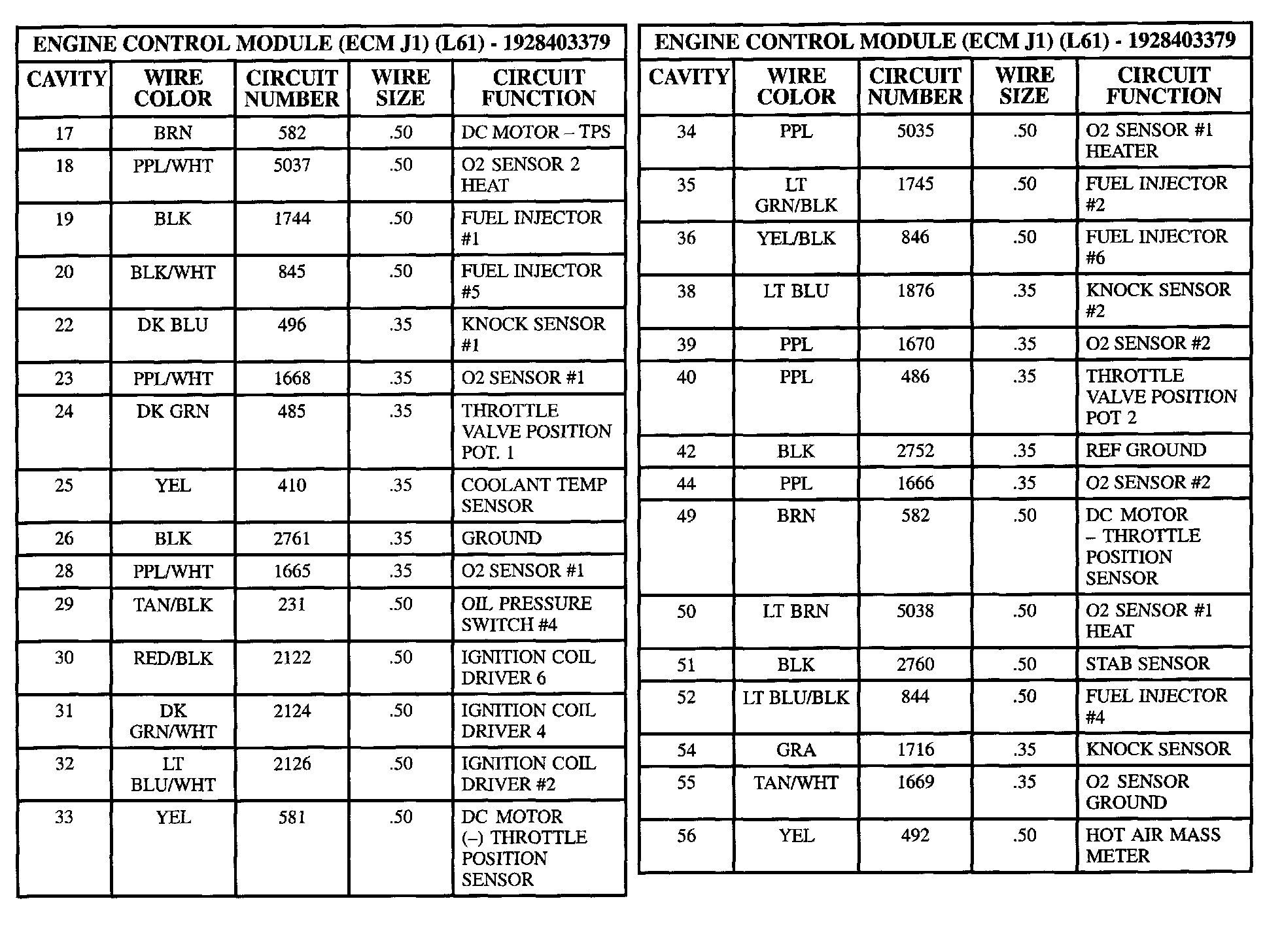

Engine Control Module (ECM J1) (L81) Part 2:

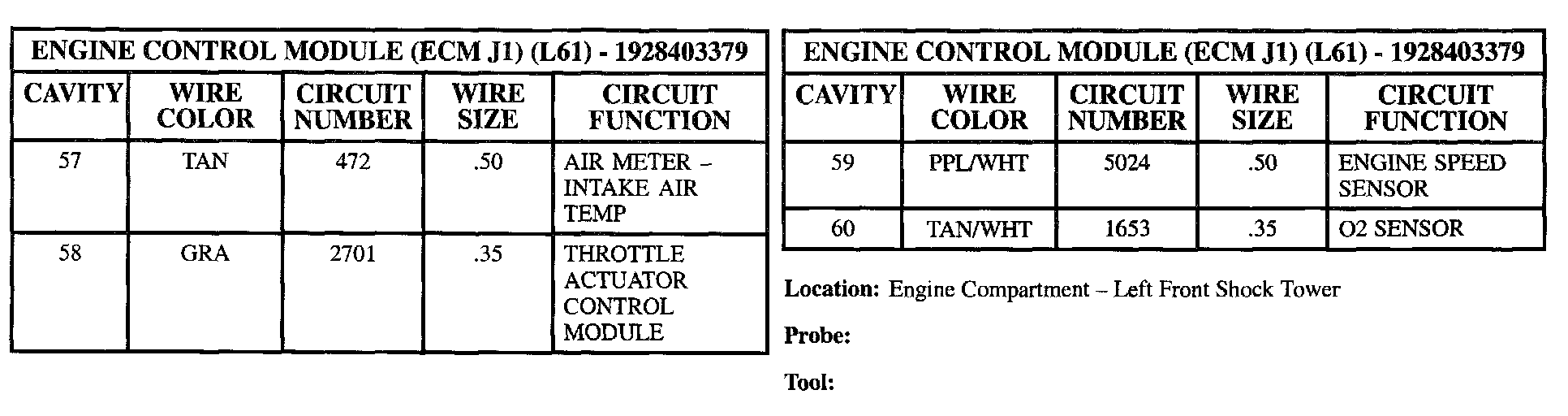

Engine Control Module (ECM J1) (L81) Part 3:
