Home >> Saturn >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams

Vehicle Speed Sensor: Diagrams

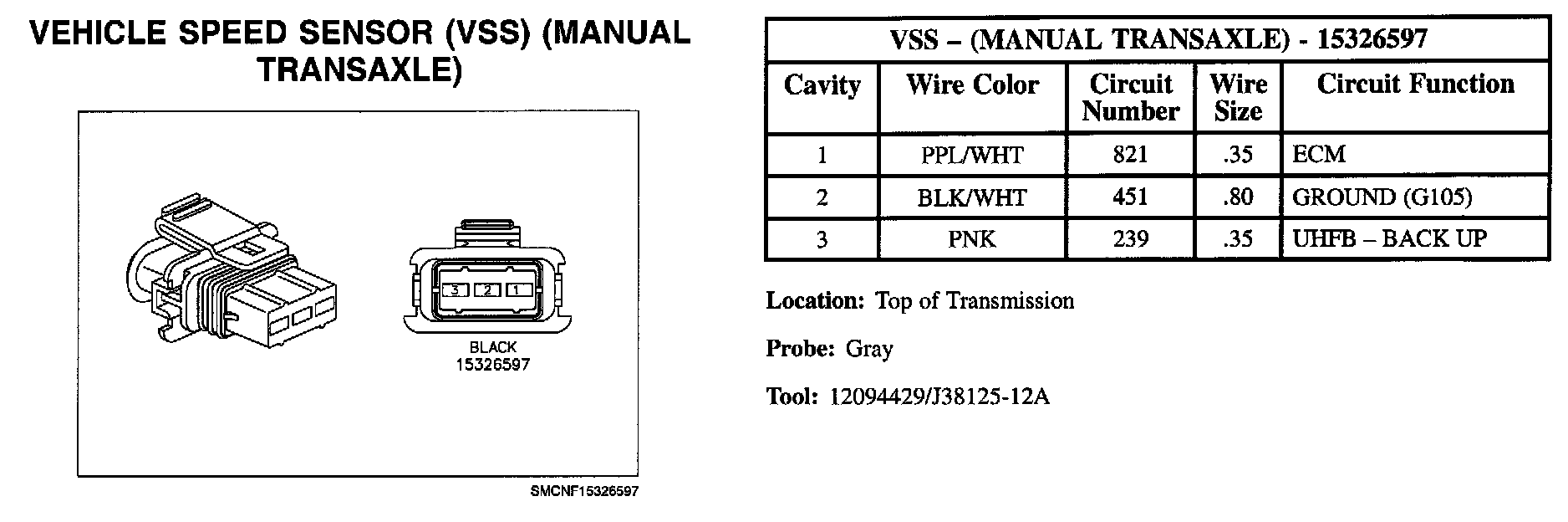

Vehicle Speed Sensor (VSS) (Manual Transaxle):
