Compressor Does Not Operate

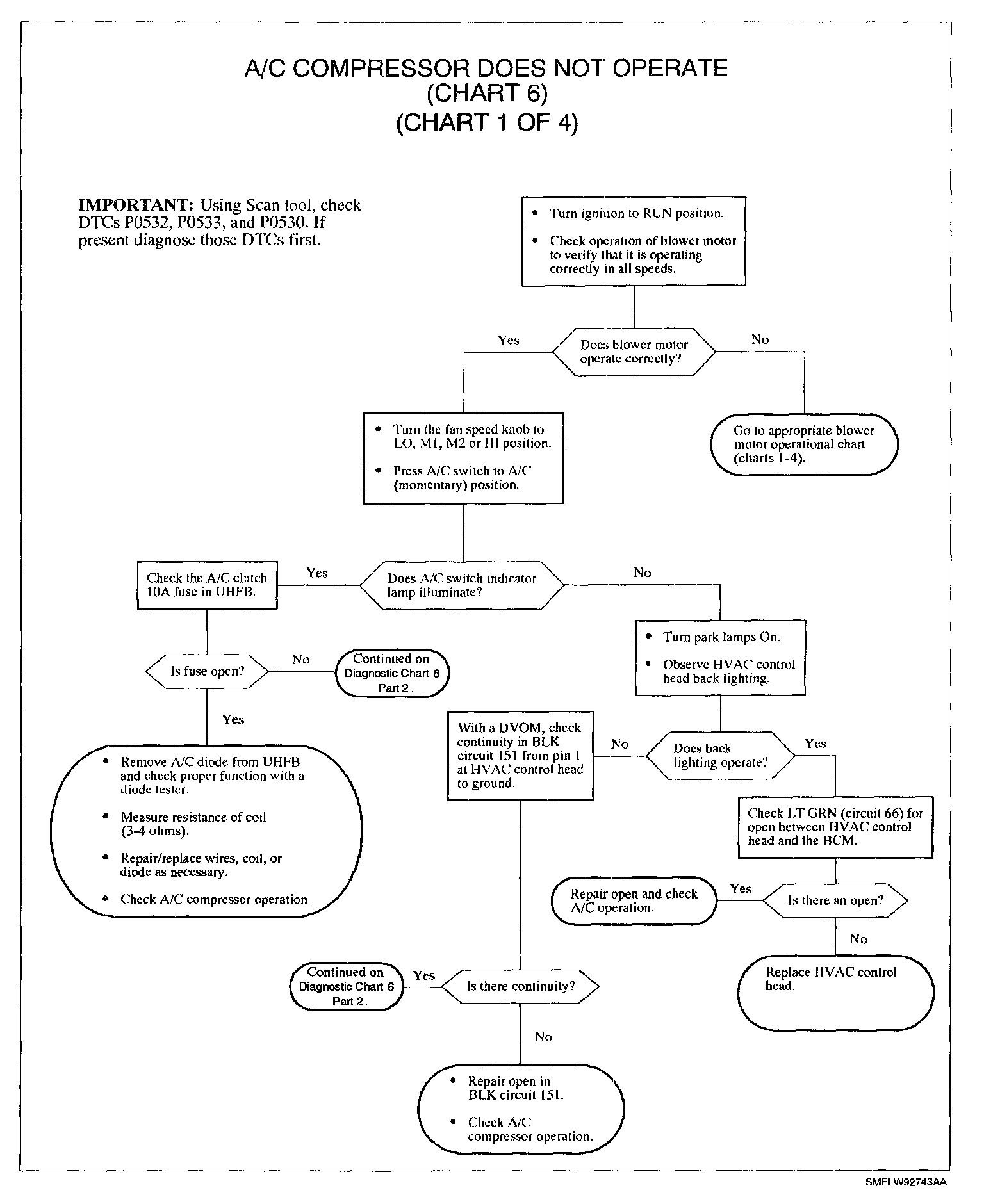

Diagnostic Chart 6 Part 1:

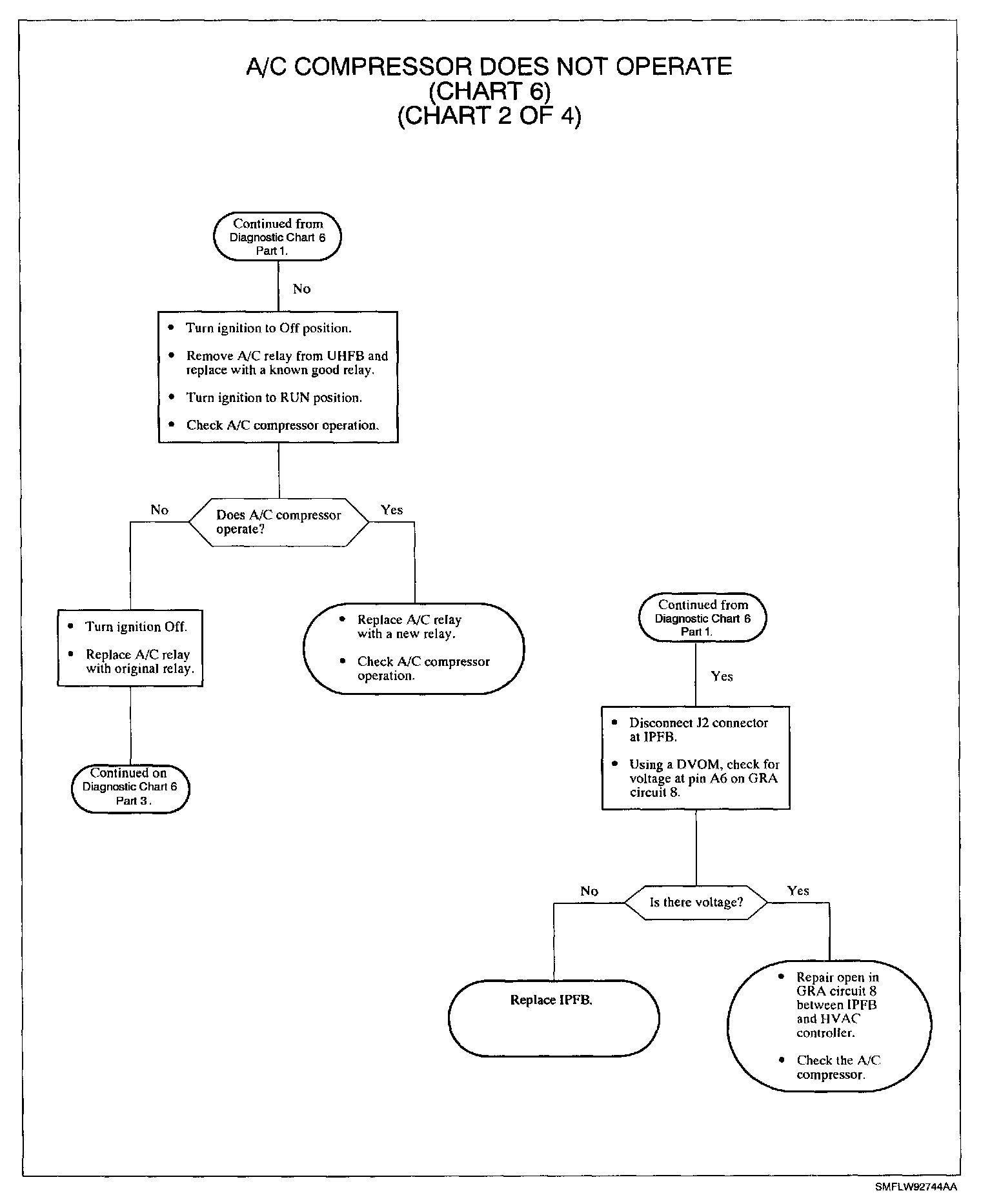

Diagnostic Chart 6 Part 2:

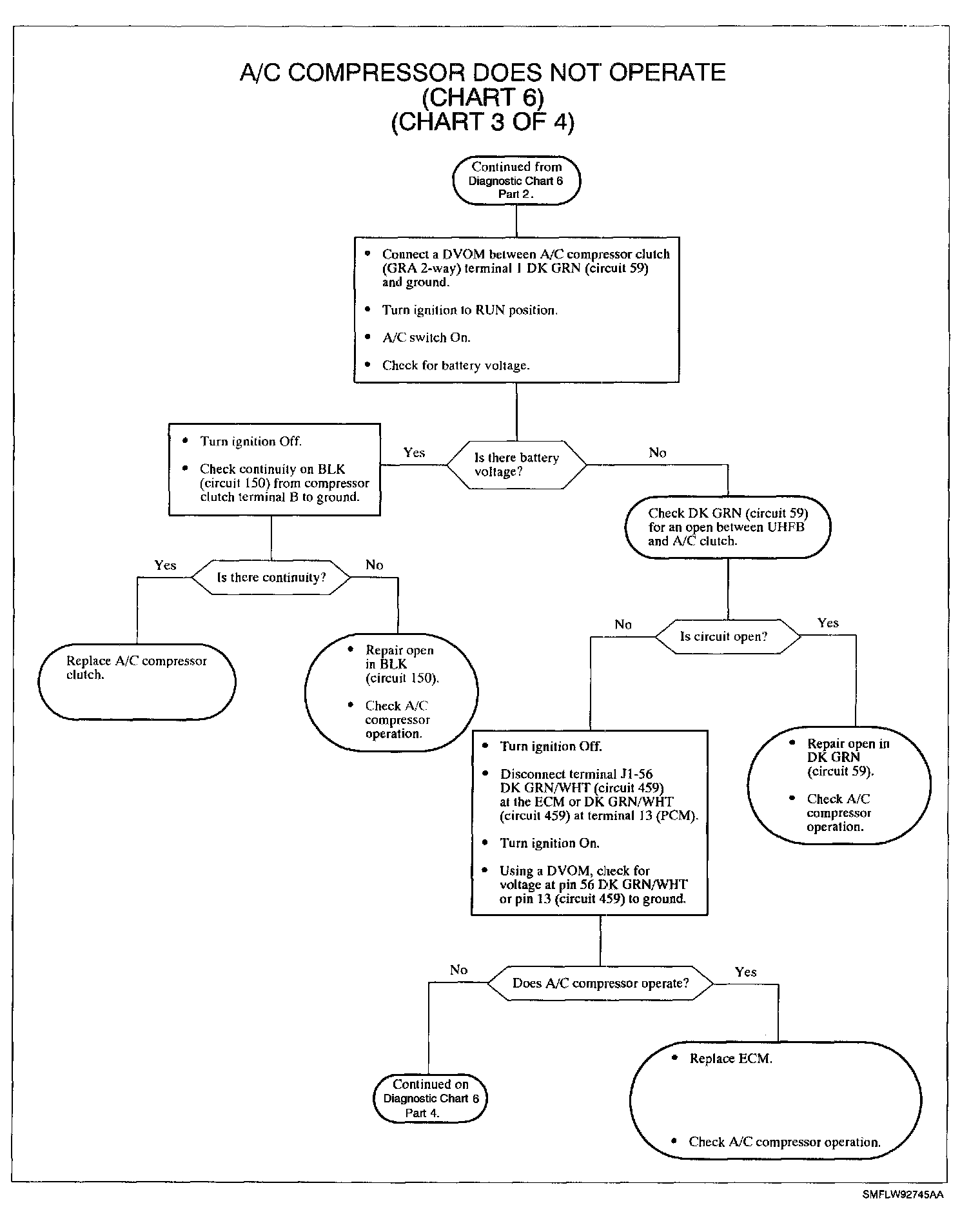

Diagnostic Chart 6 Part 3:

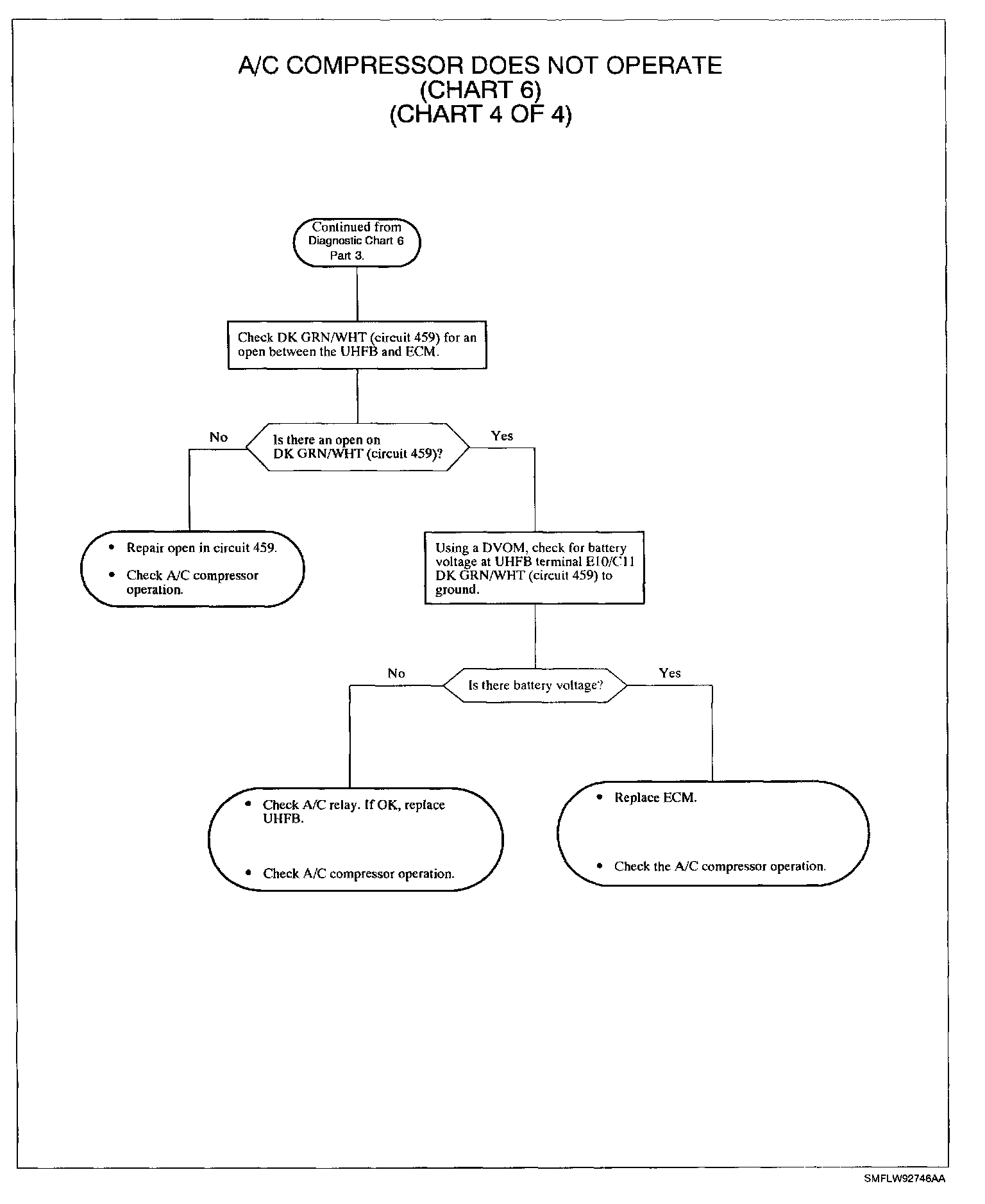

Diagnostic Chart 6 Part 4:
