Home >> Saturn >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> System Diagram

System Diagram

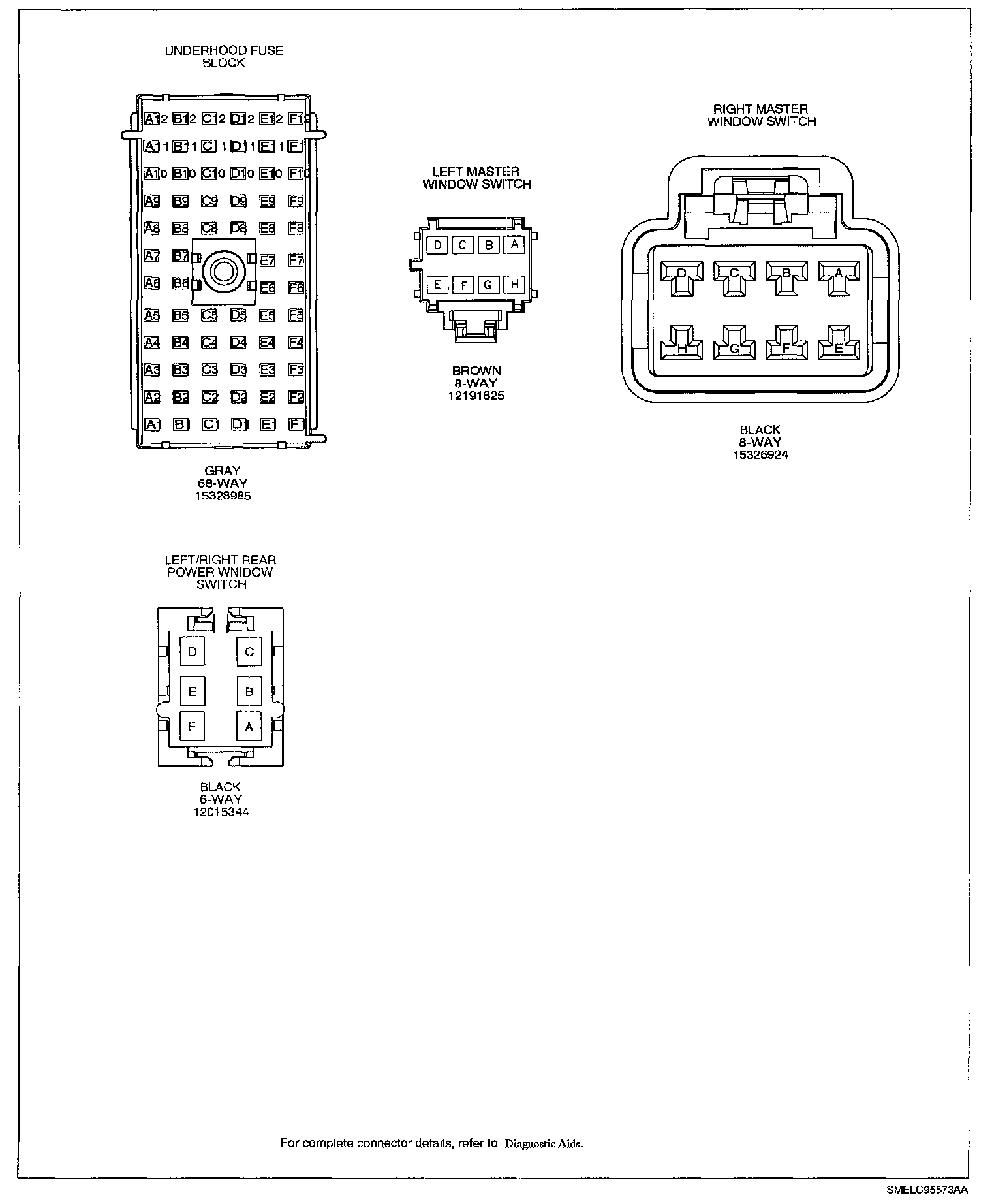

Power Window Connector Face Views:
