System Diagram

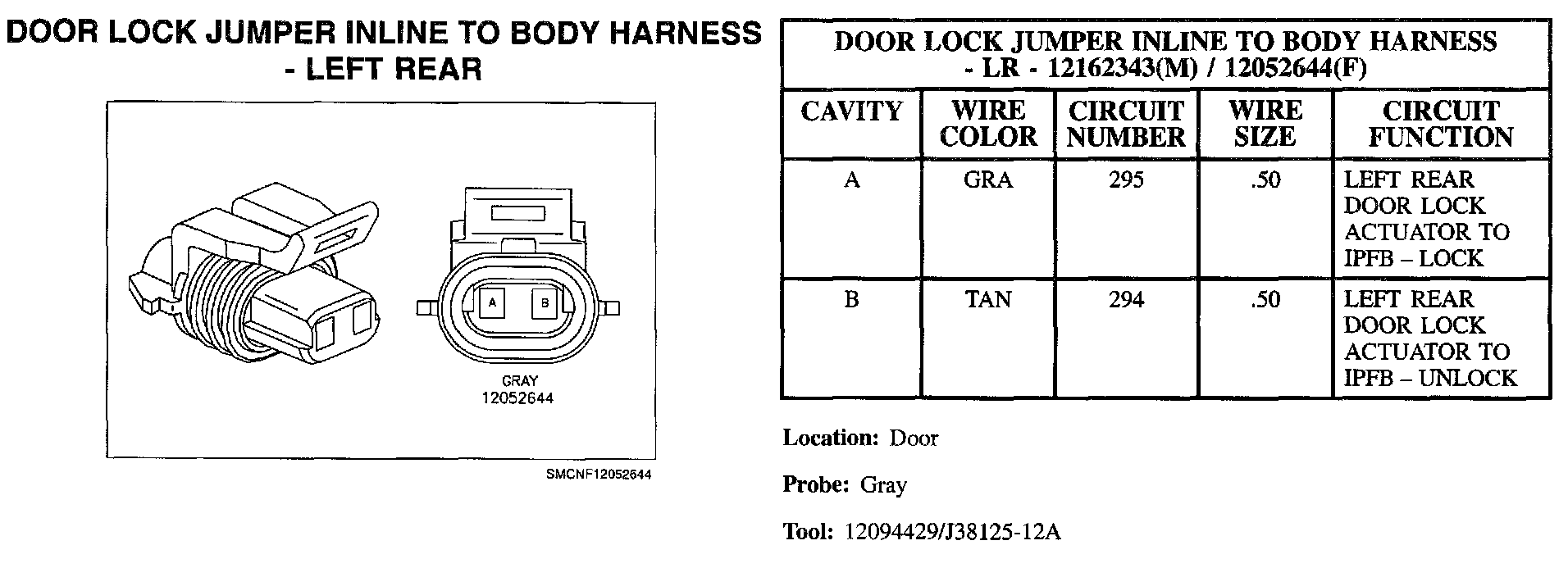

Door Lock Jumper Inline To Body Harness - Left Rear:

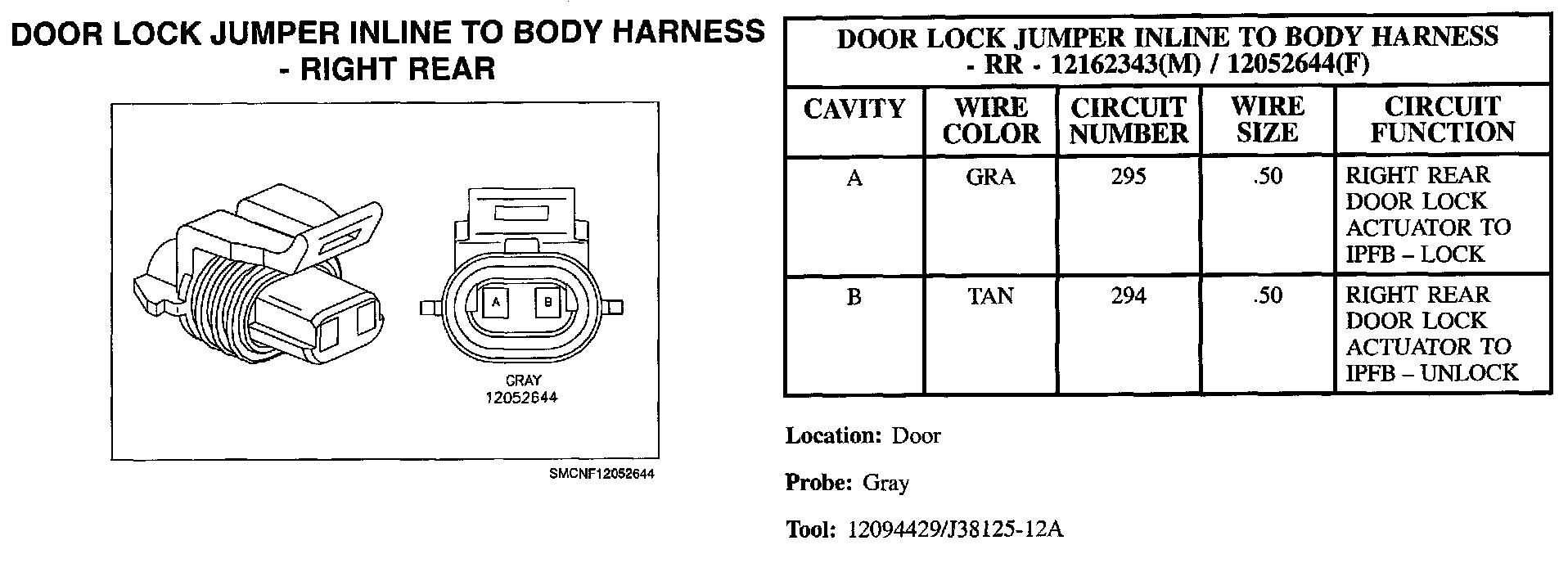

Door Lock Jumper Line To Body Harness - Right Rear:
