Home >> Saturn >> 2003 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry

Keyless Entry

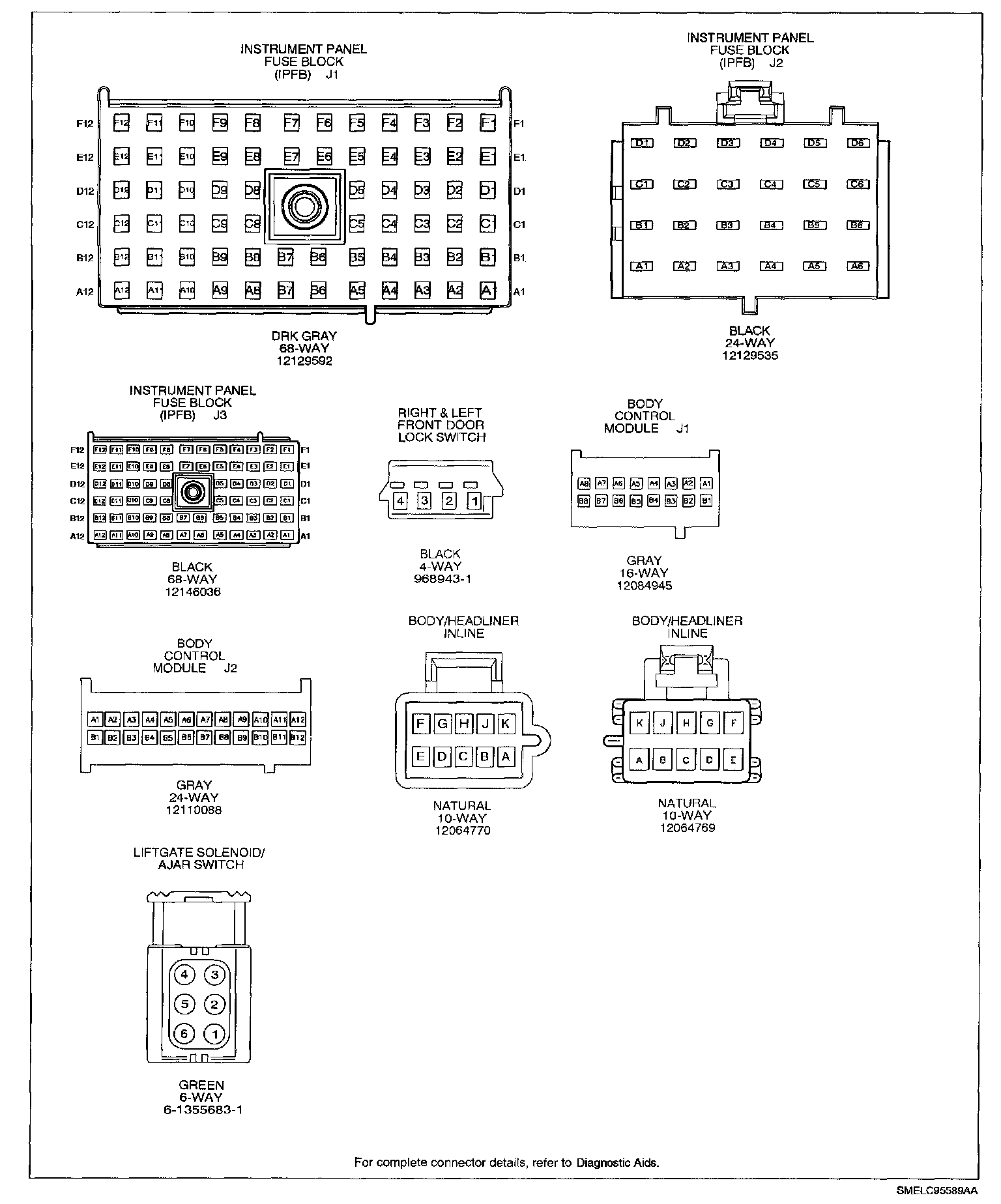

RKE/Security System Connector Face Views:
