Control Module, CVT



Transmission Control Module Harness 64-Way Connector

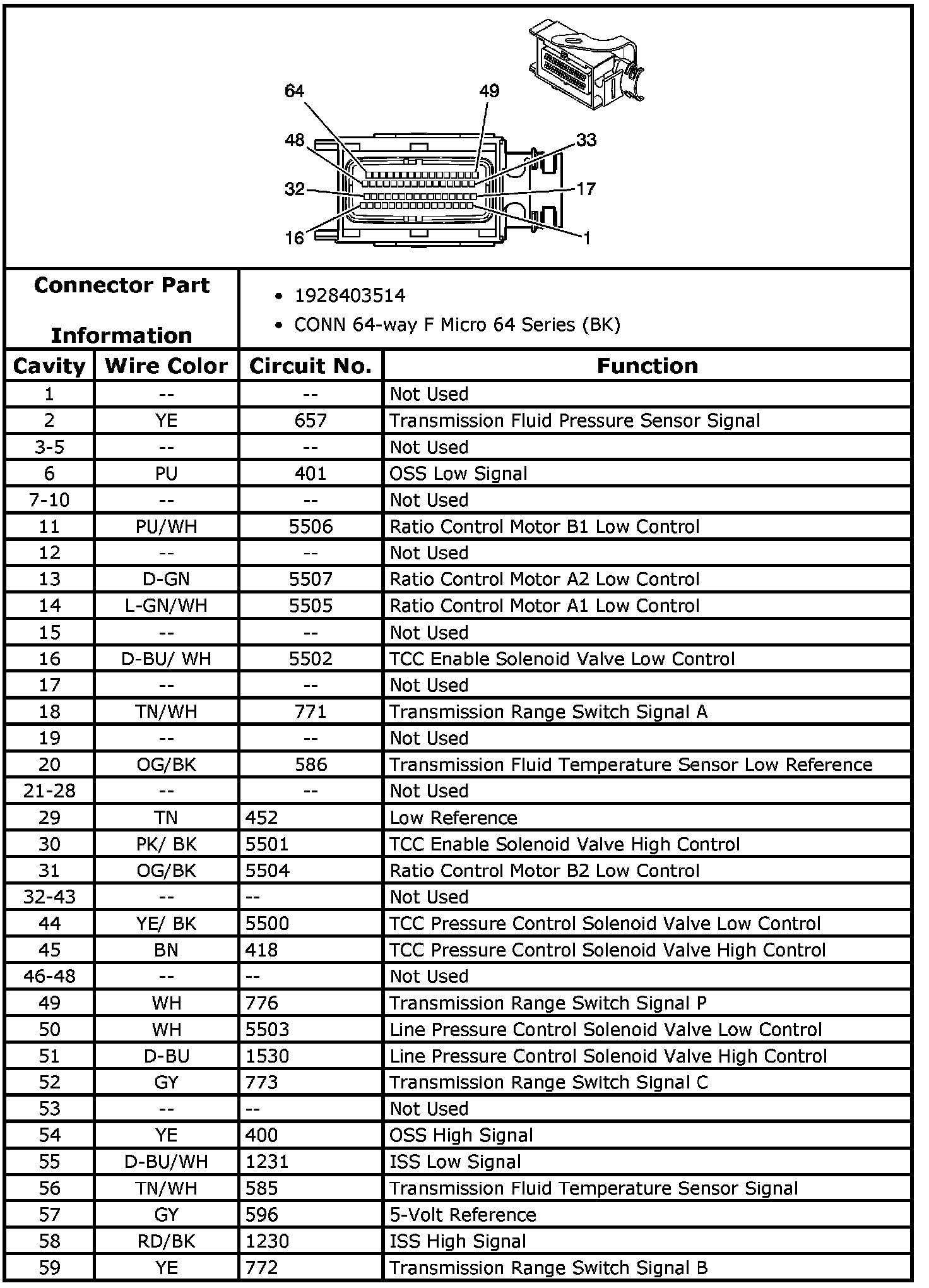

C1 Connector

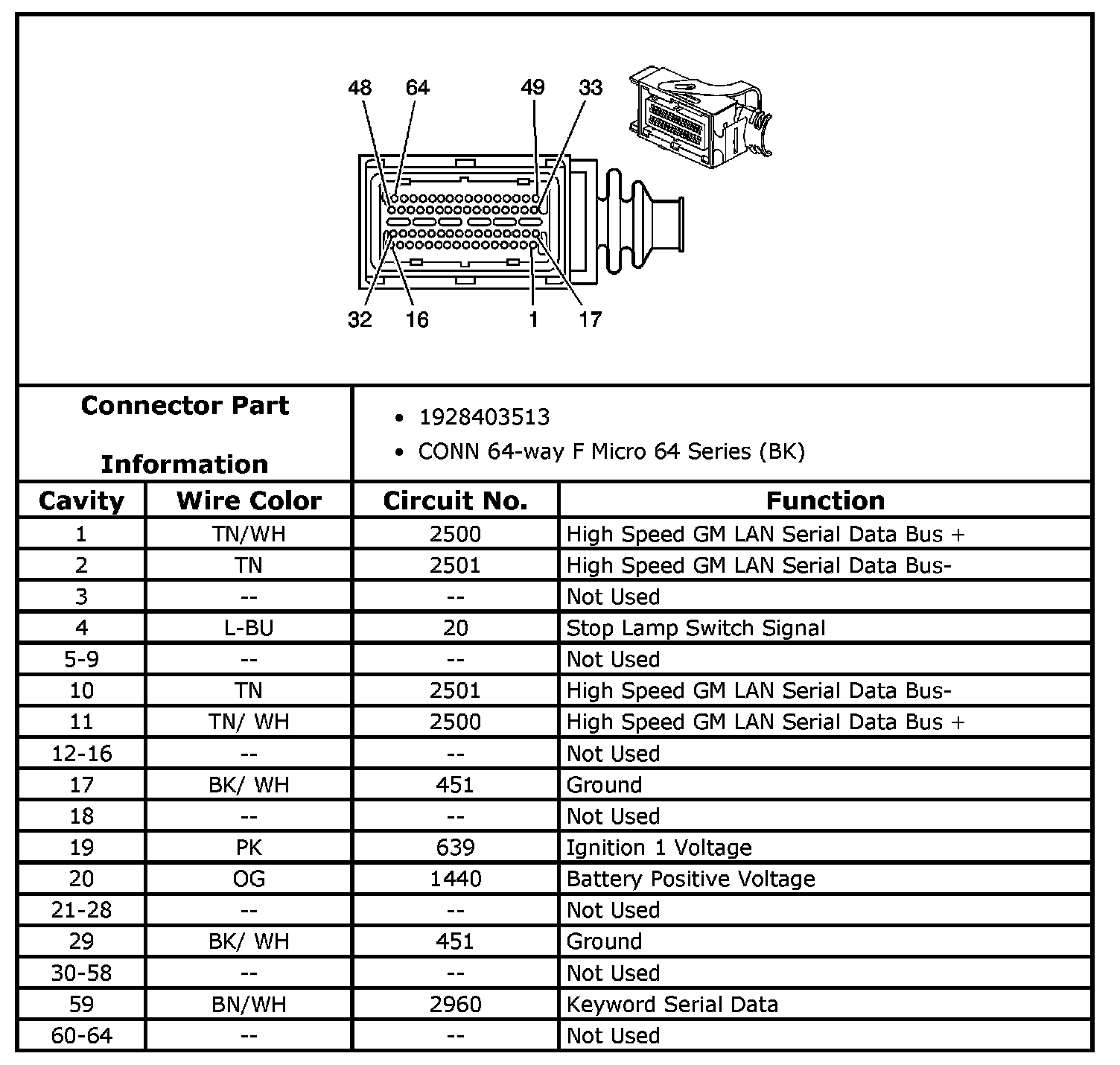

C2 Connector
