Control Module, A/T

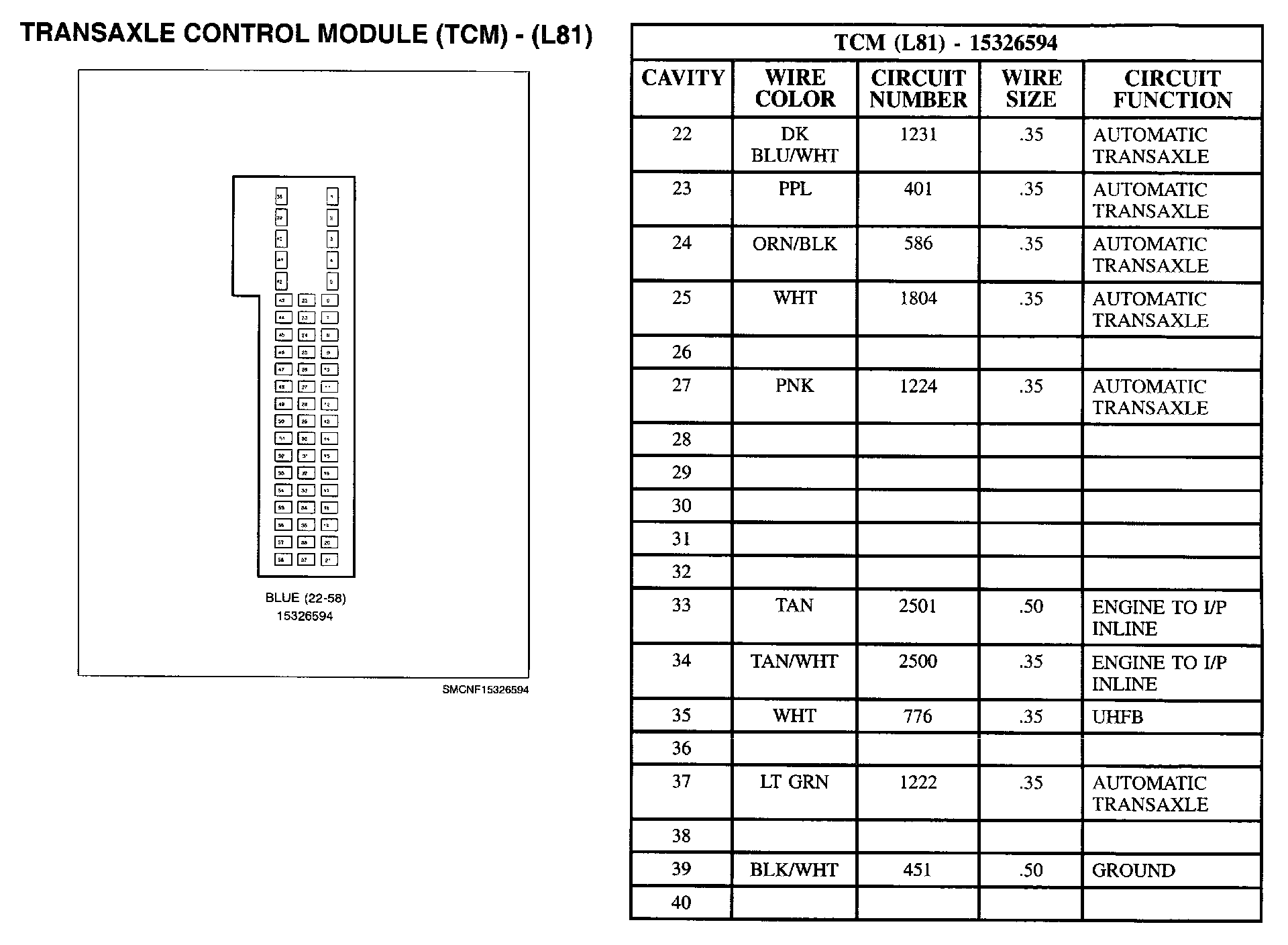

Transaxle Control Module (TCM) Part 1:

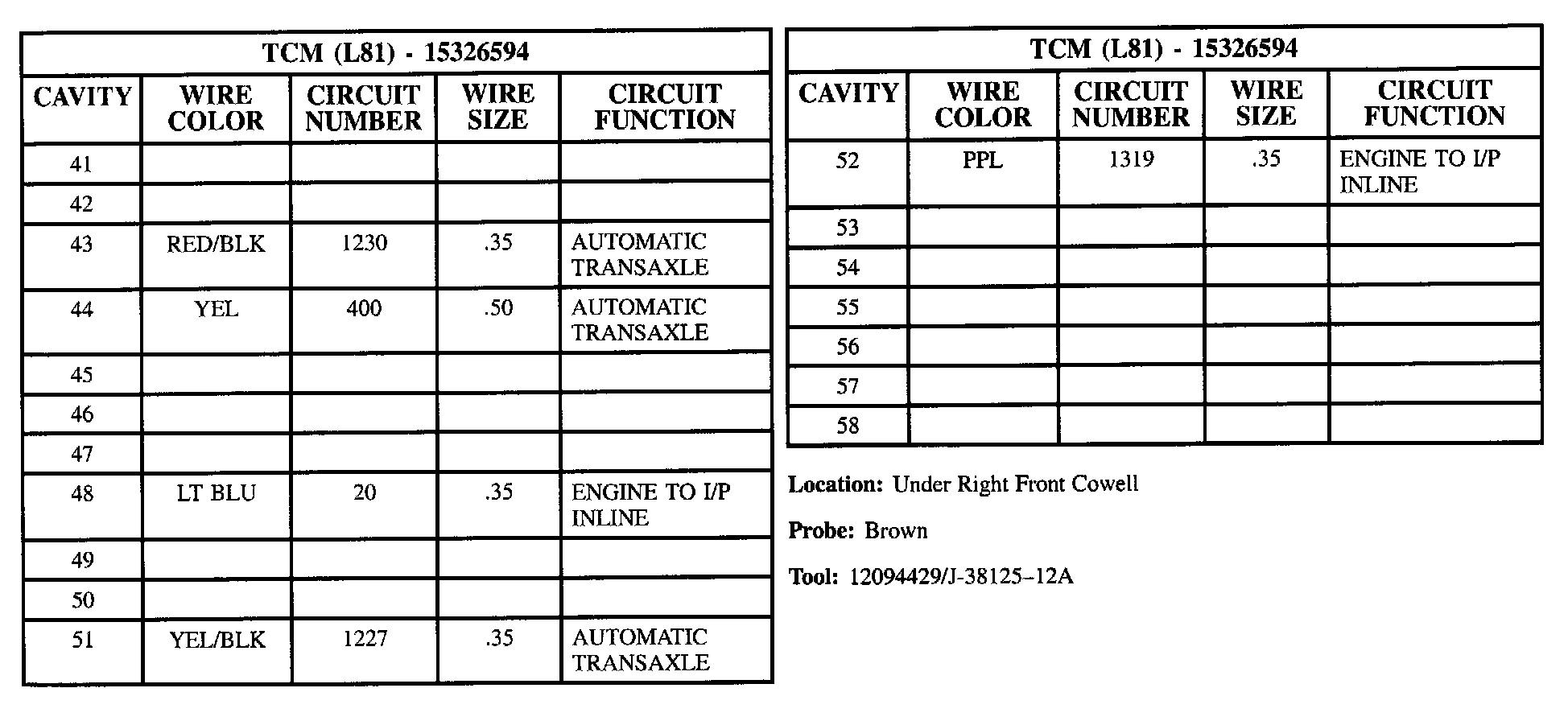

Transaxle Control Module (TCM) Part 2:

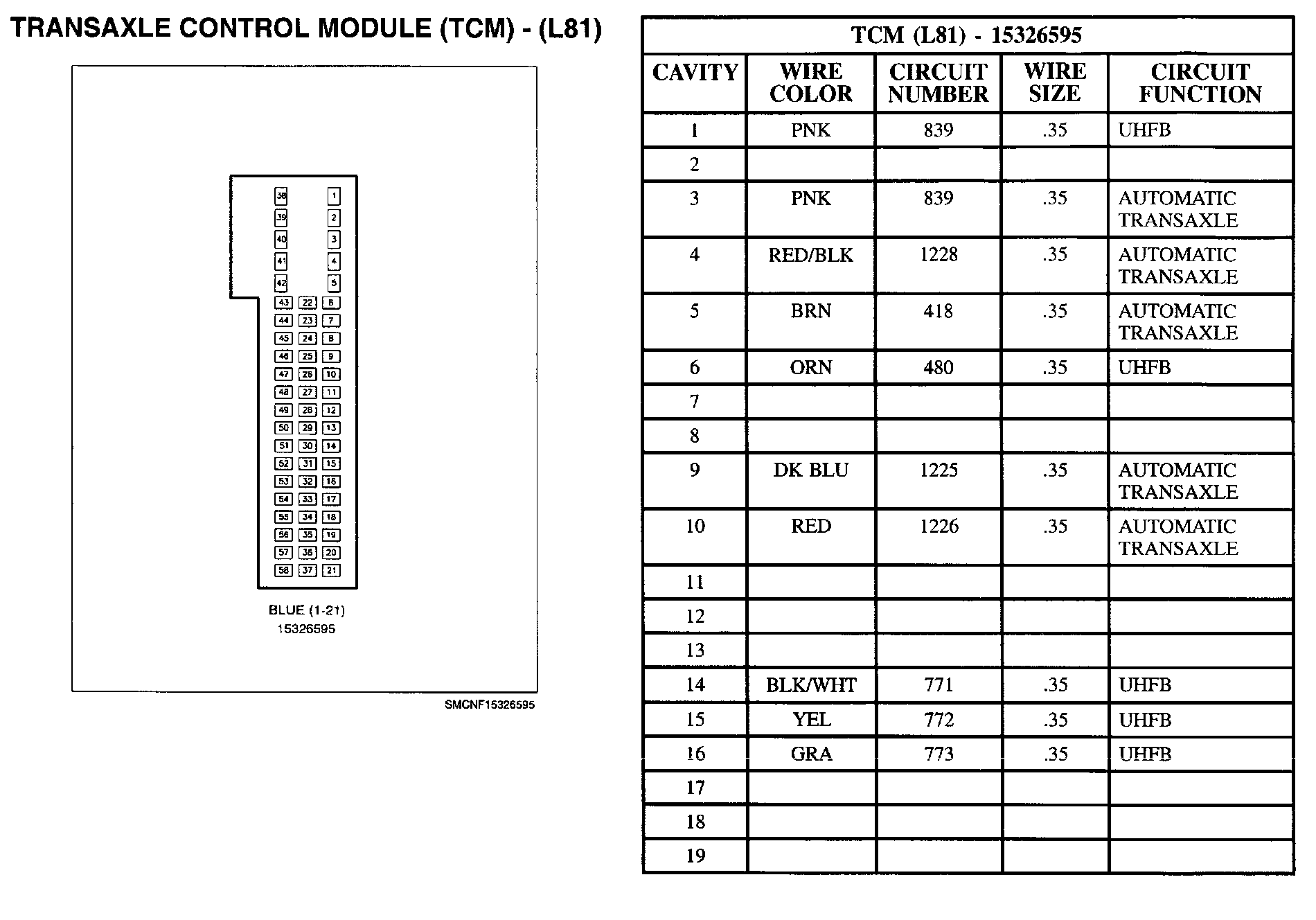

Transaxle Control Module (TCM) Part 1:




Transaxle Control Module (TCM) Part 2:
