Powertrain Control Module (PCM) Connector Descriptions
>>
J2 - I/P
J2 - I/P

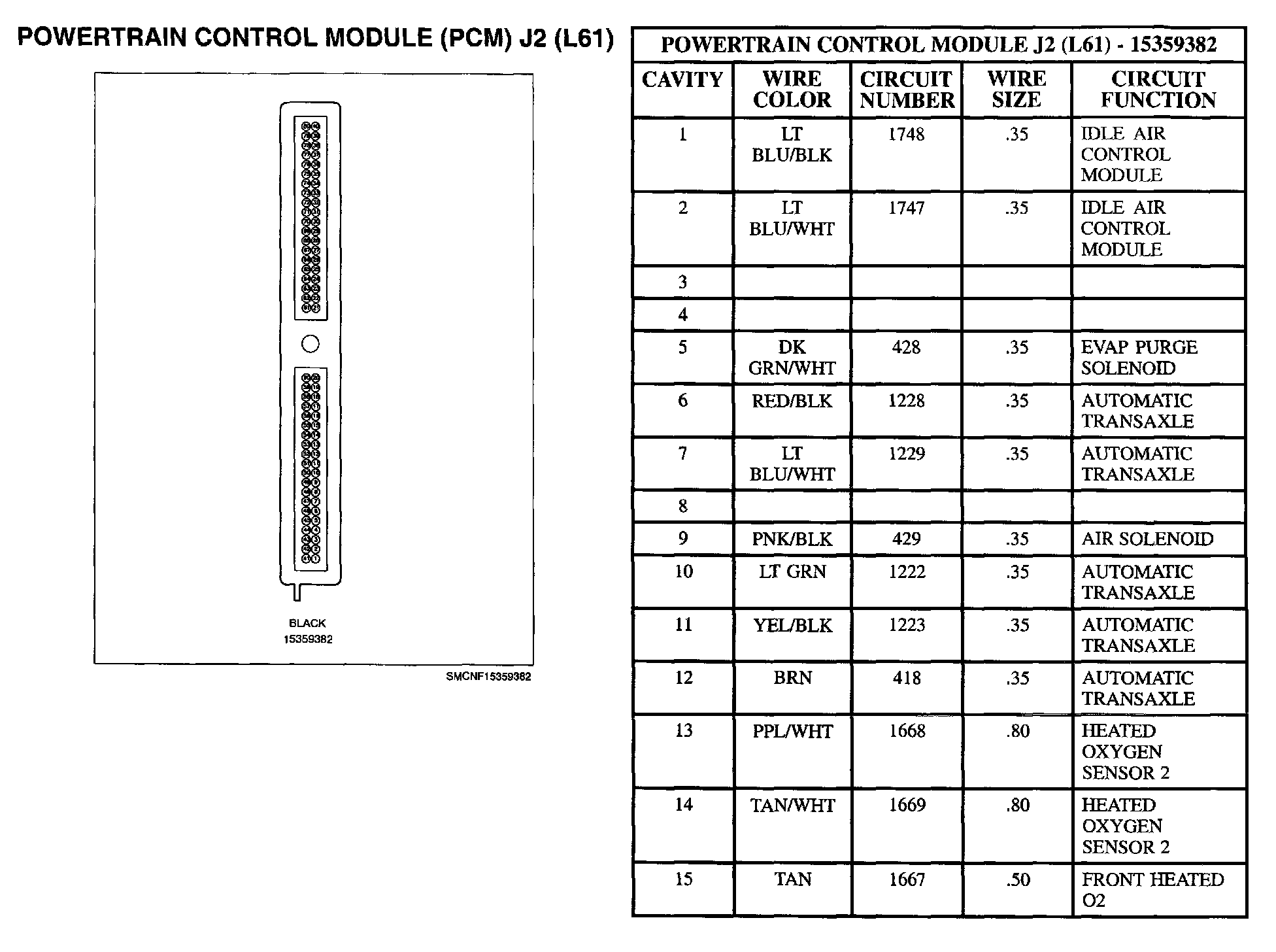

Powertrain Control Module (PCM) J2 Part 1:

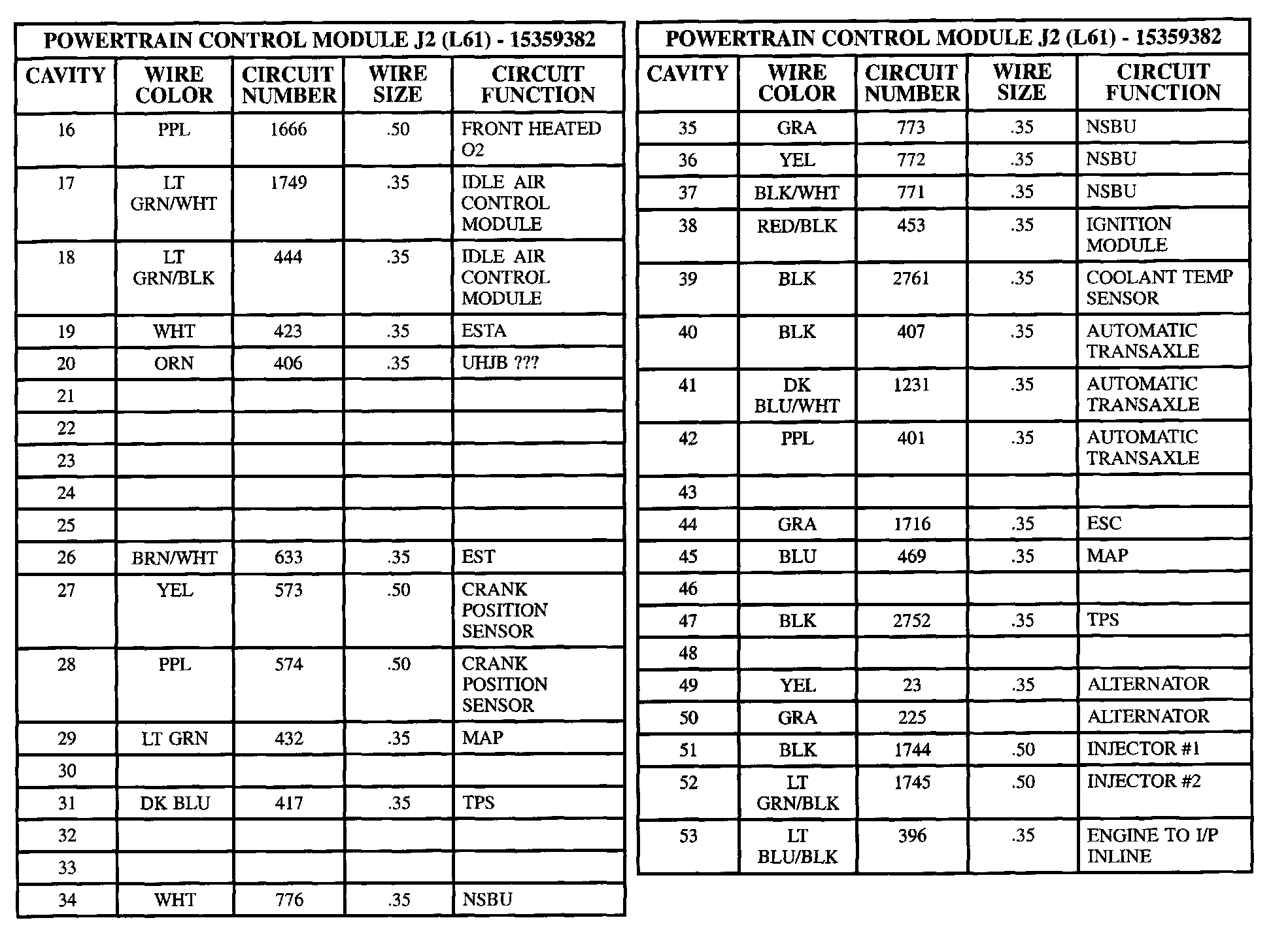

Powertrain Control Module (PCM) J2 Part 2:

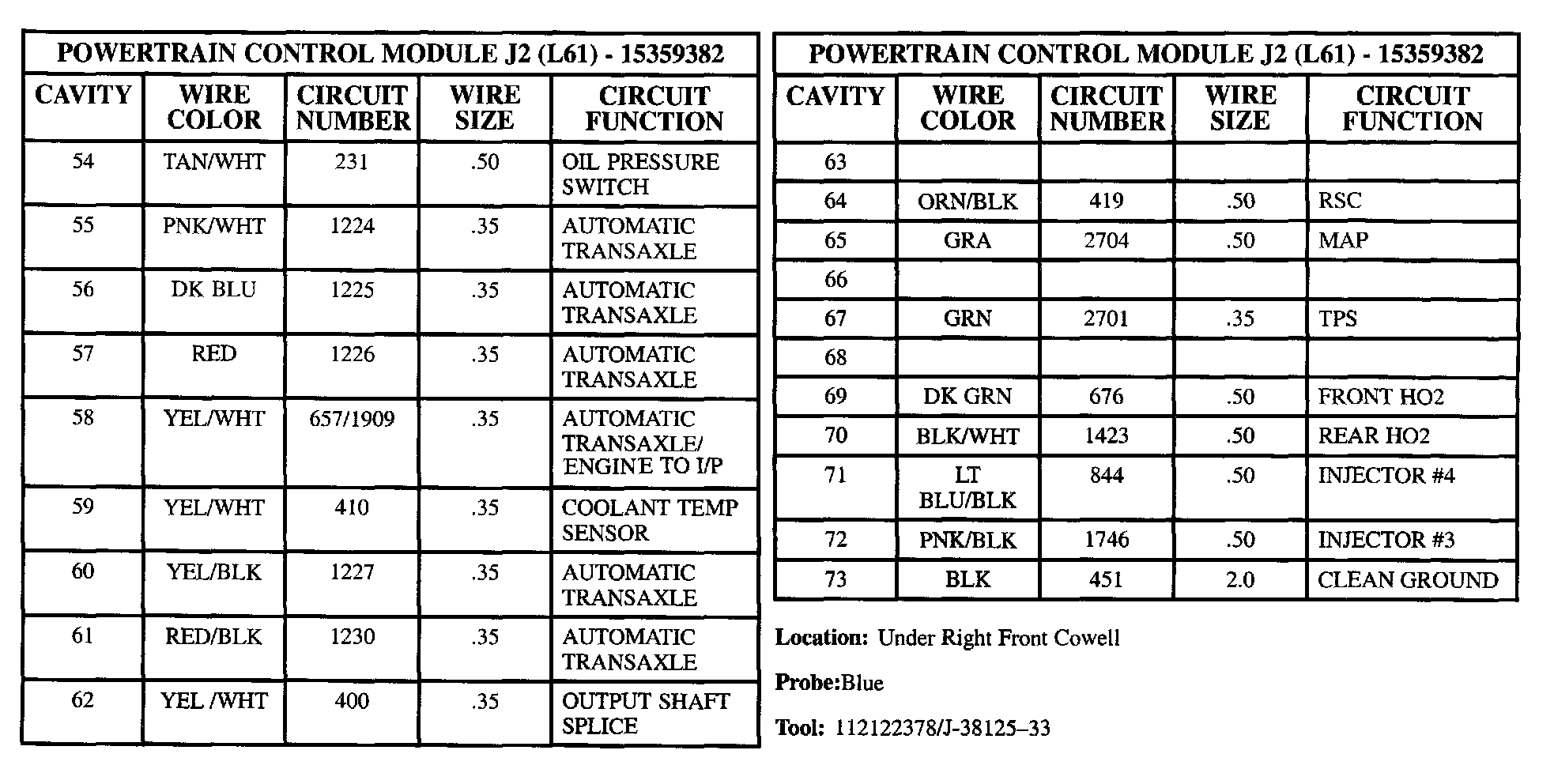

Powertrain Control Module (PCM) J2 Part 3:
