Home >> Saturn >> 2003 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Powertrain Control Module (PCM) Power and Grounds Schematic

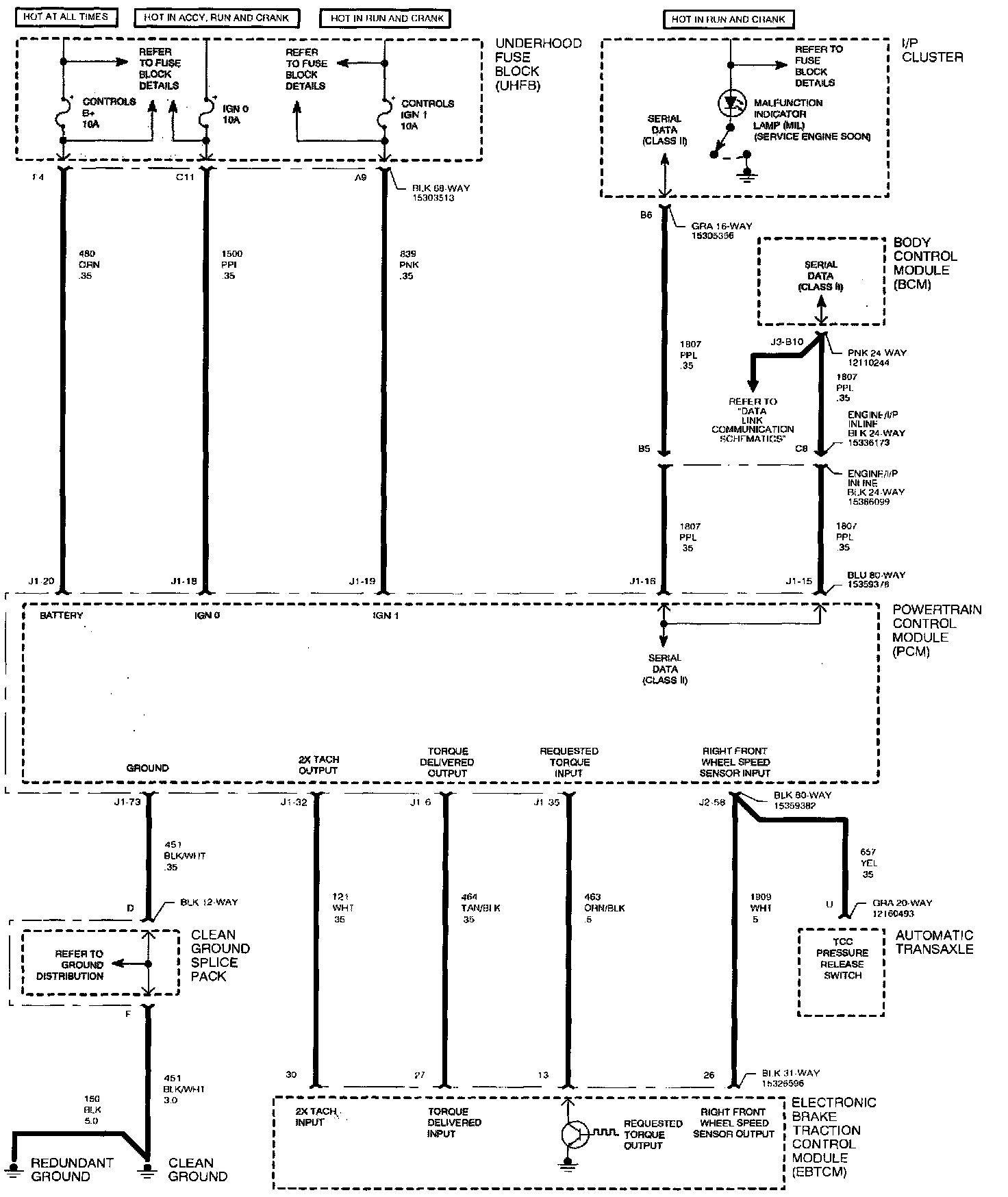

Powertrain Control Module (PCM) Power and Grounds Schematic
