Trunk / Liftgate
>>
System Diagram
System Diagram

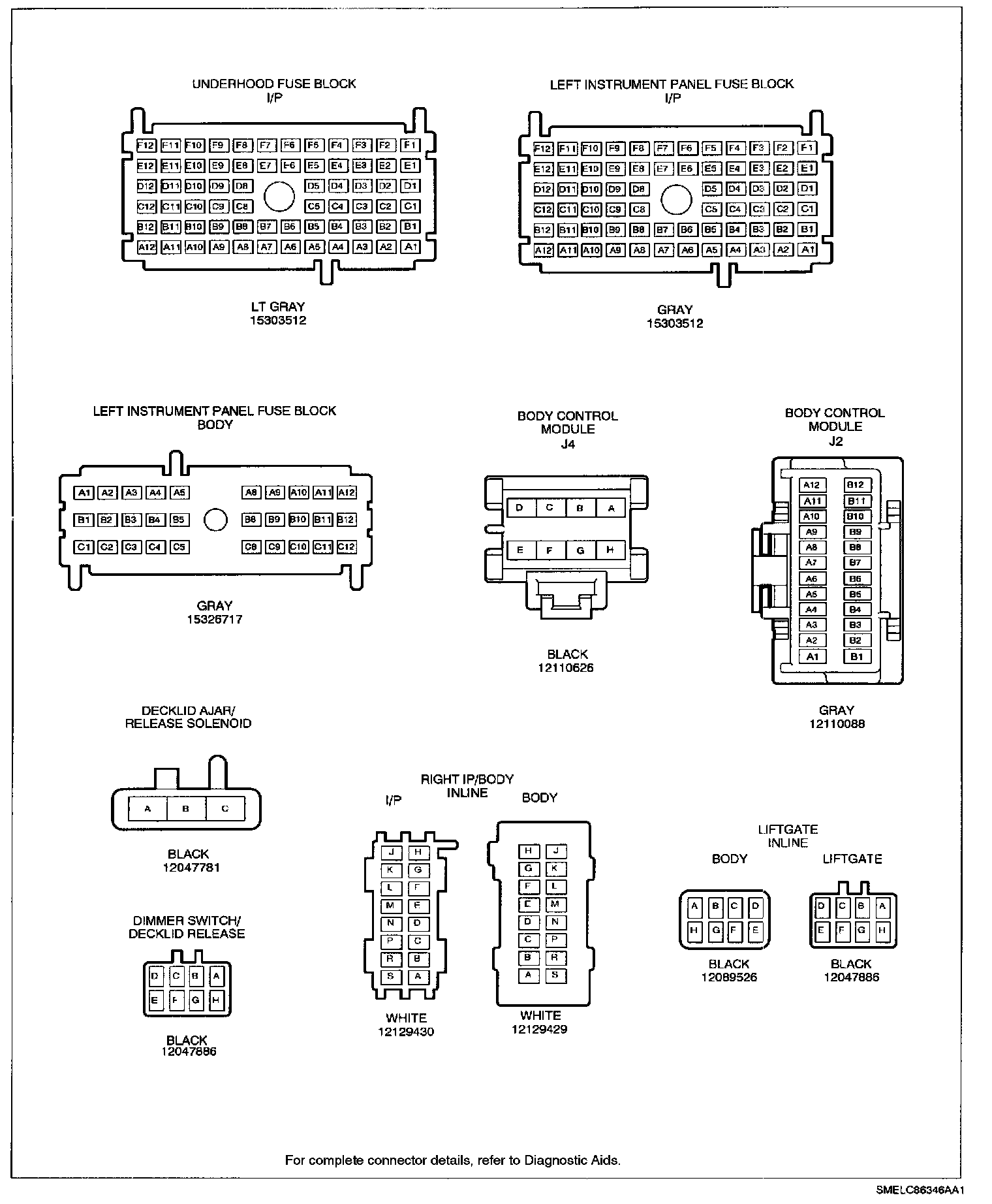

Decklid/Liftgate Release (Sedan/Wagon) Connector Face Views:

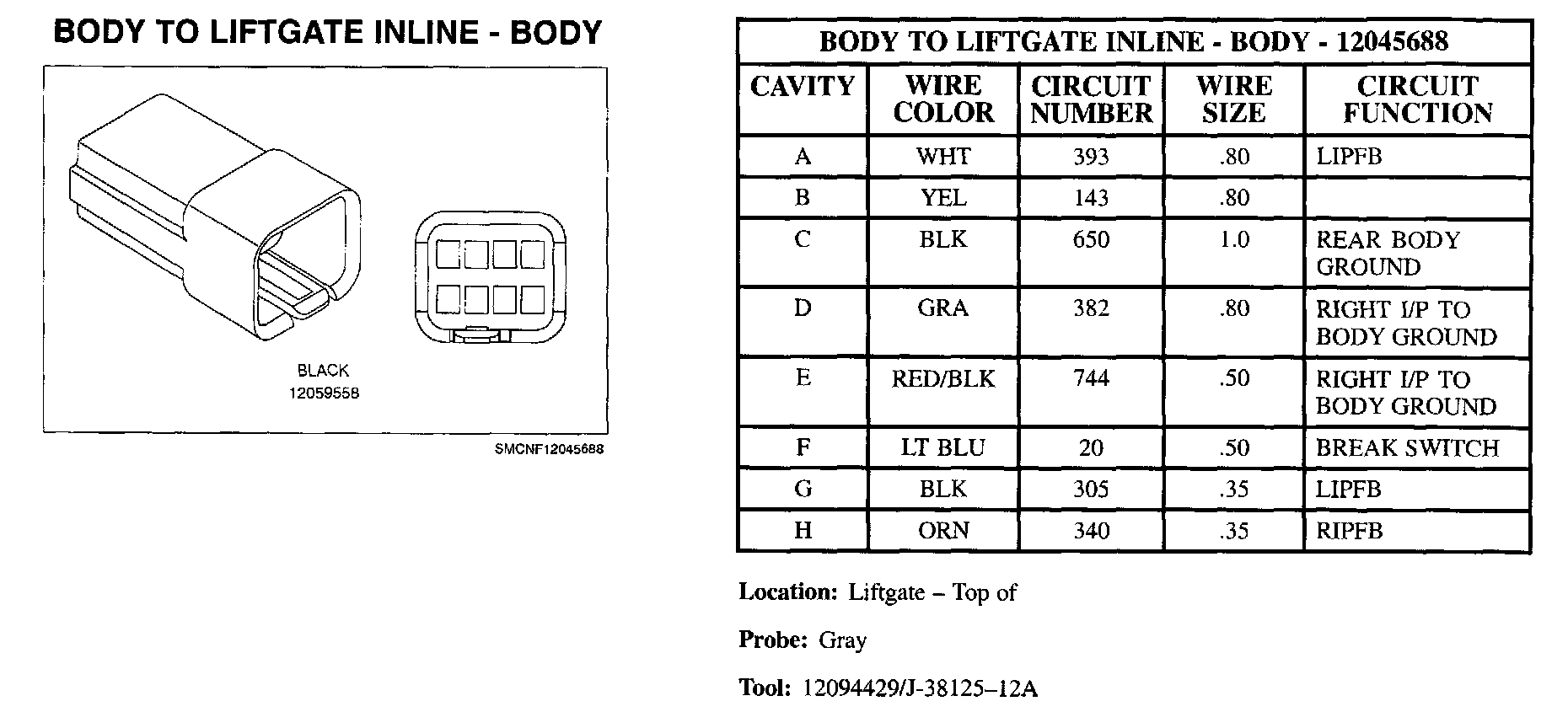

Body To Liftgate Inline - Body:

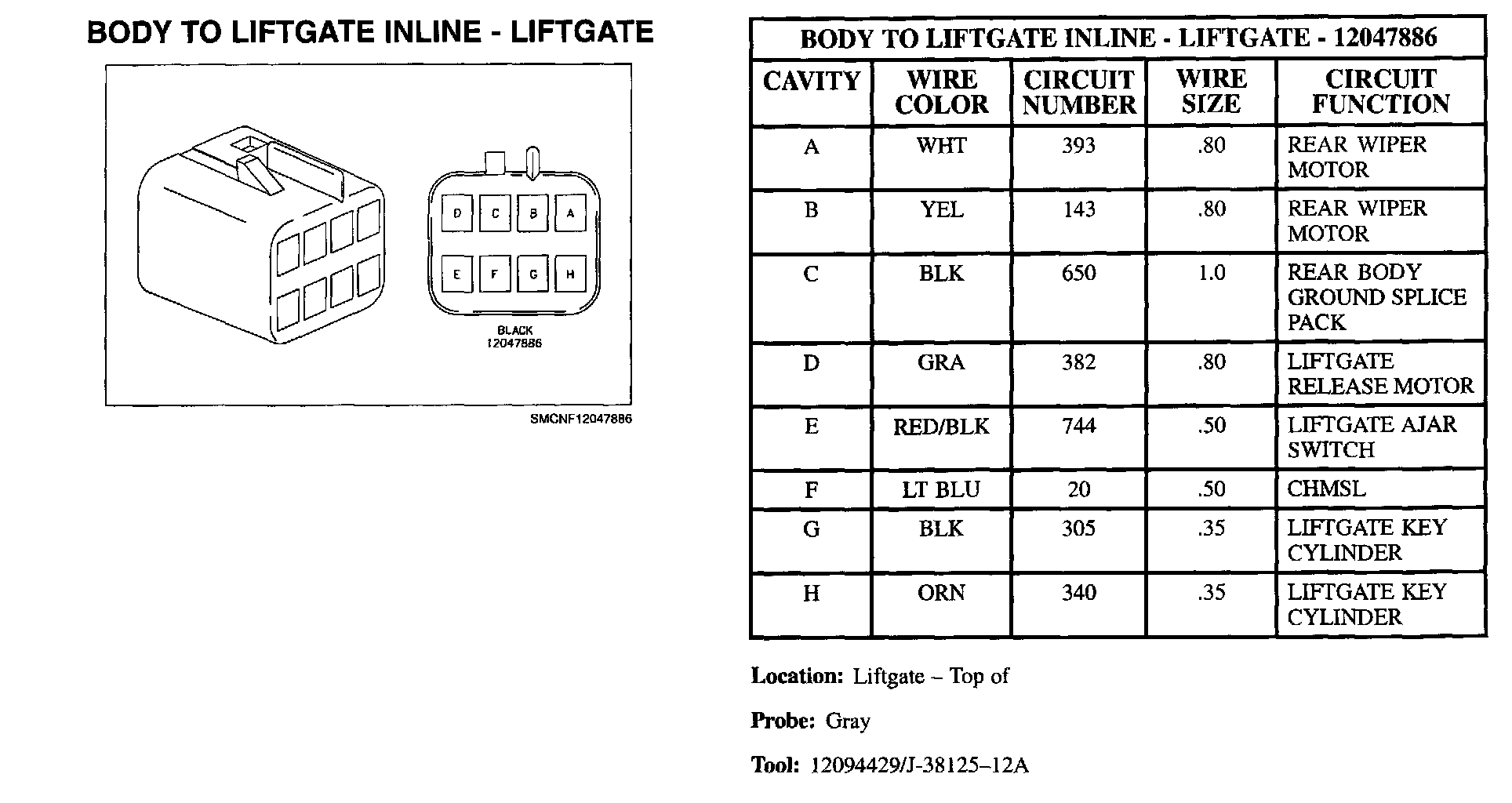

Body To Liftgate Inline - Liftgate:
