Home >> Saturn >> 2003 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate >> Power Trunk / Liftgate Lock Actuator Position Sensor

Power Trunk / Liftgate Lock Actuator Position Sensor

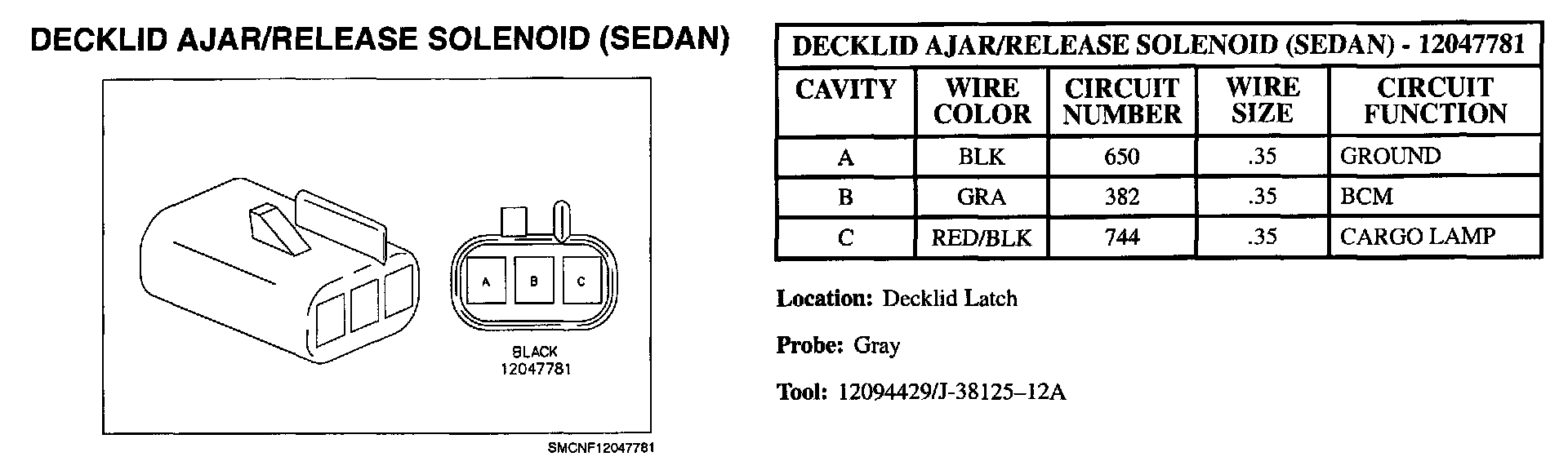

Decklid Ajar/Release Solenoid (Sedan):

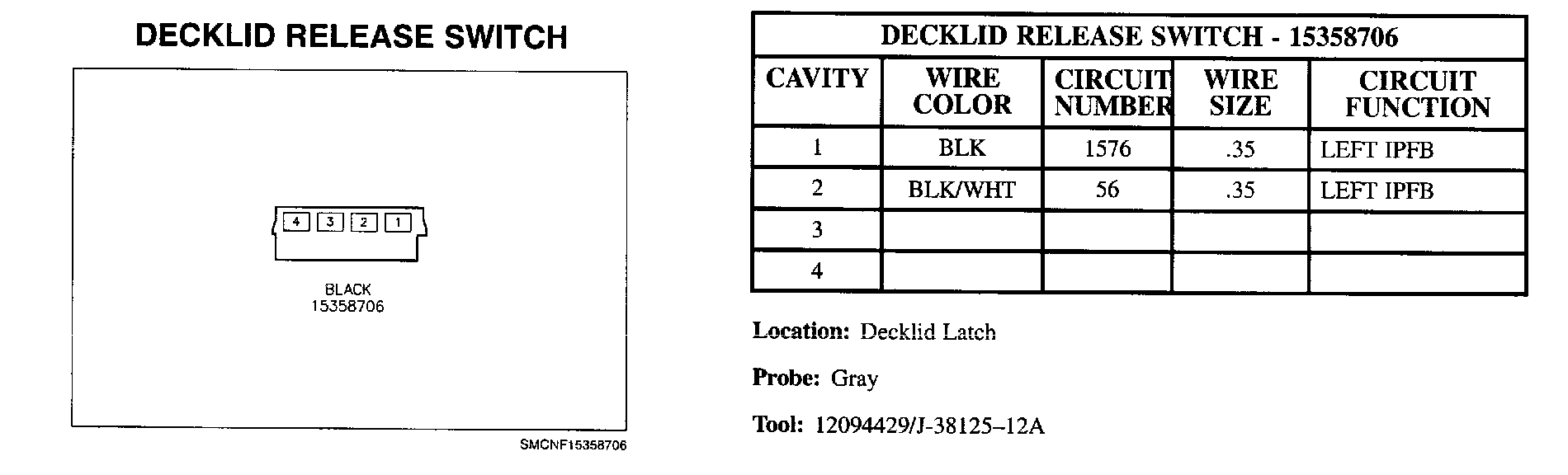

Decklid Release Switch:
