I/P Fuse Block - Right - I/P

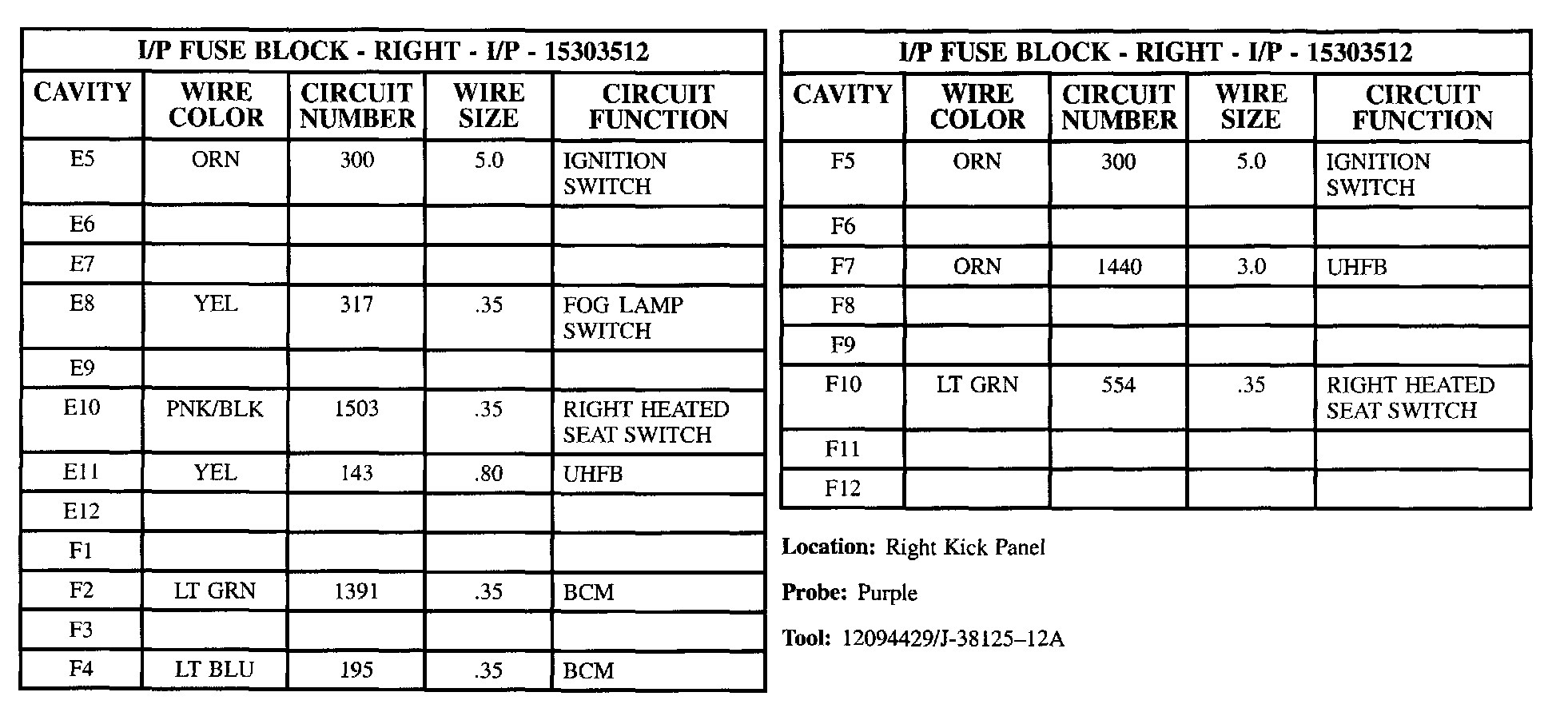

I/P Fuse Block - Right - I/P Part 1:

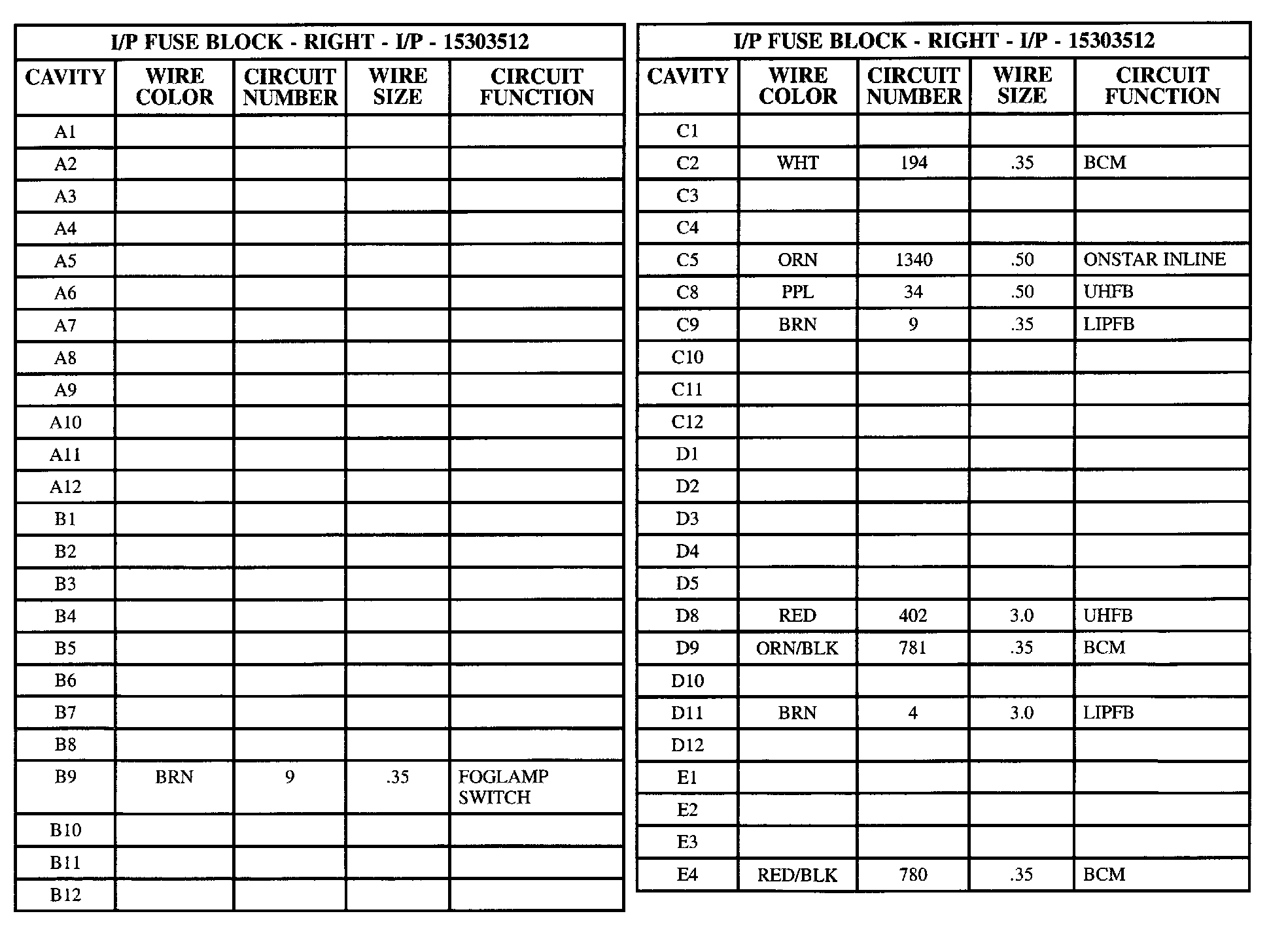

I/P Fuse Block - Right - I/P Part 2:

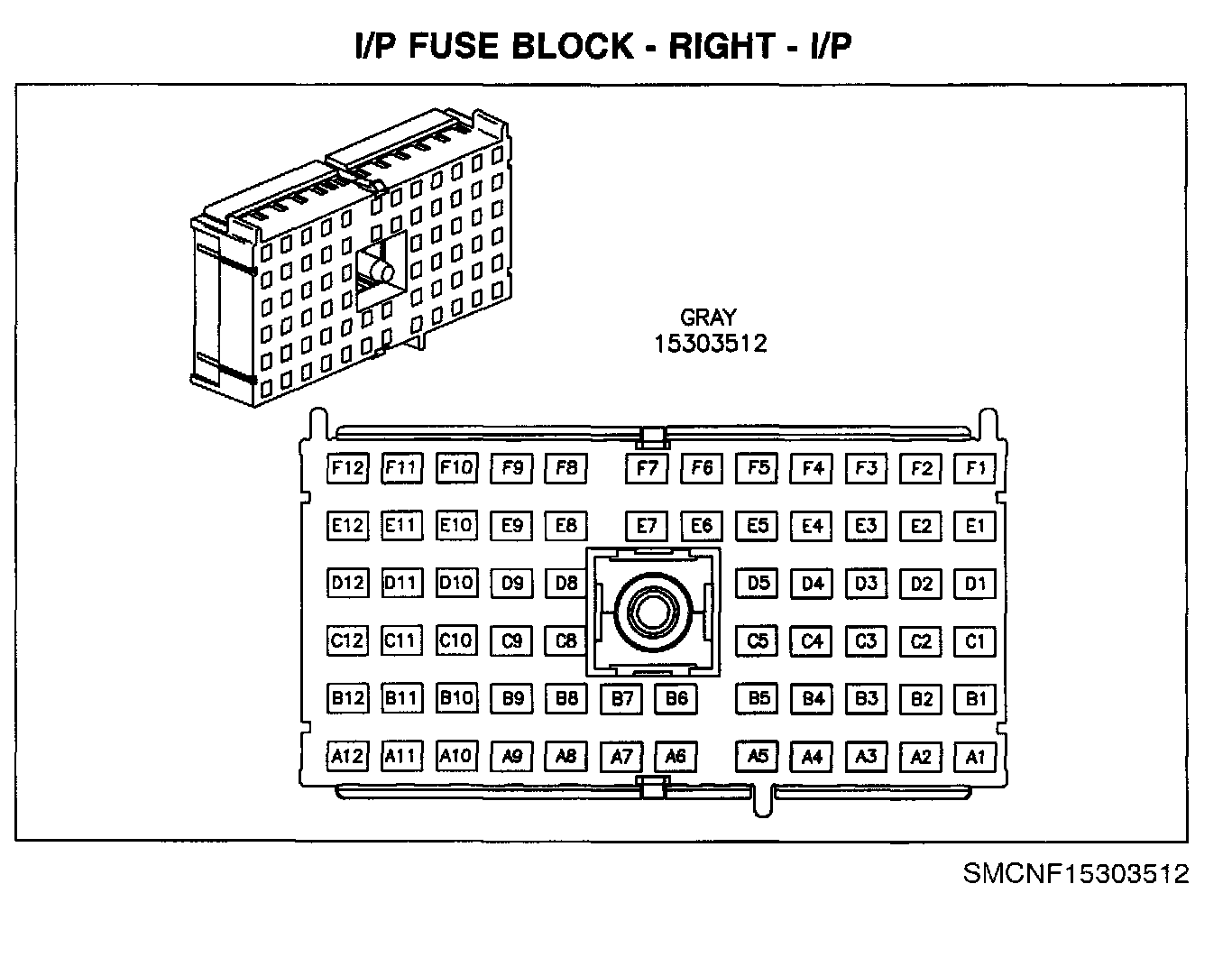

I/P Fuse Block - Right - I/P Part 3:
