I/P Fuse Block - Left - Body
I/P Fuse Block - Left - Body

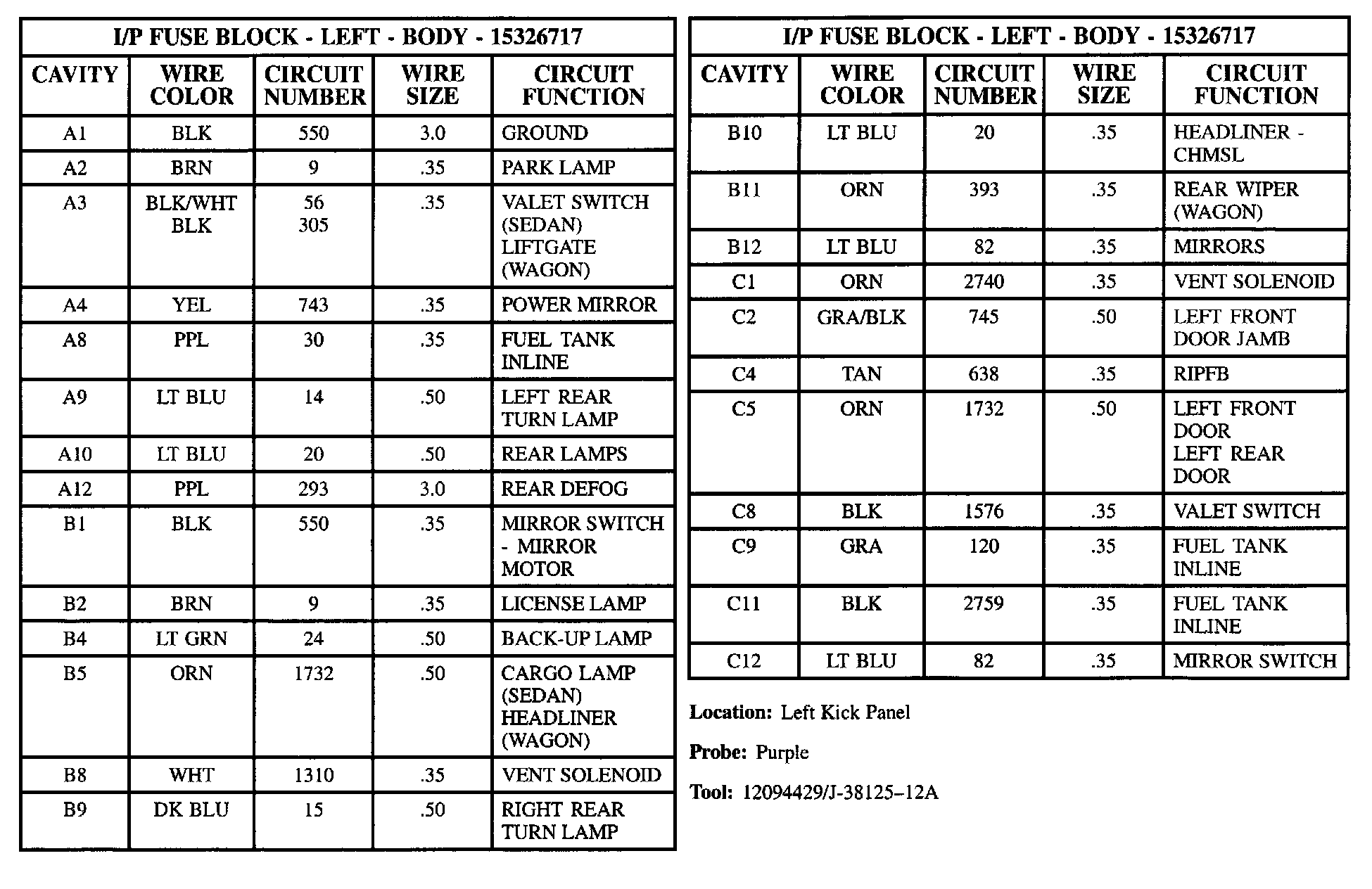

I/P Fuse Block - Left - Body Part 1:

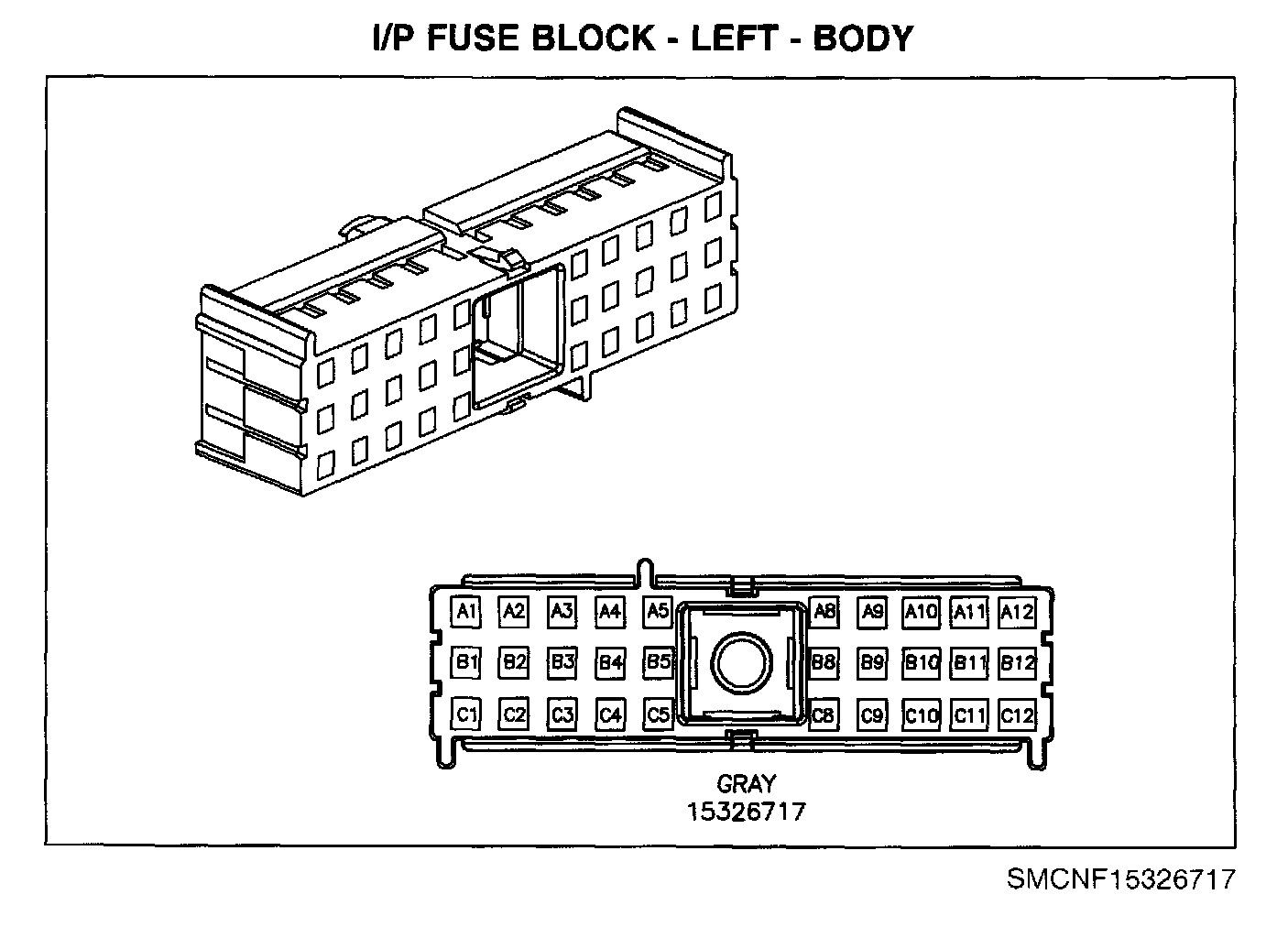

I/P Fuse Block - Left - Body Part 2:
