Home >> Saturn >> 2003 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor

Manifold Pressure/Vacuum Sensor

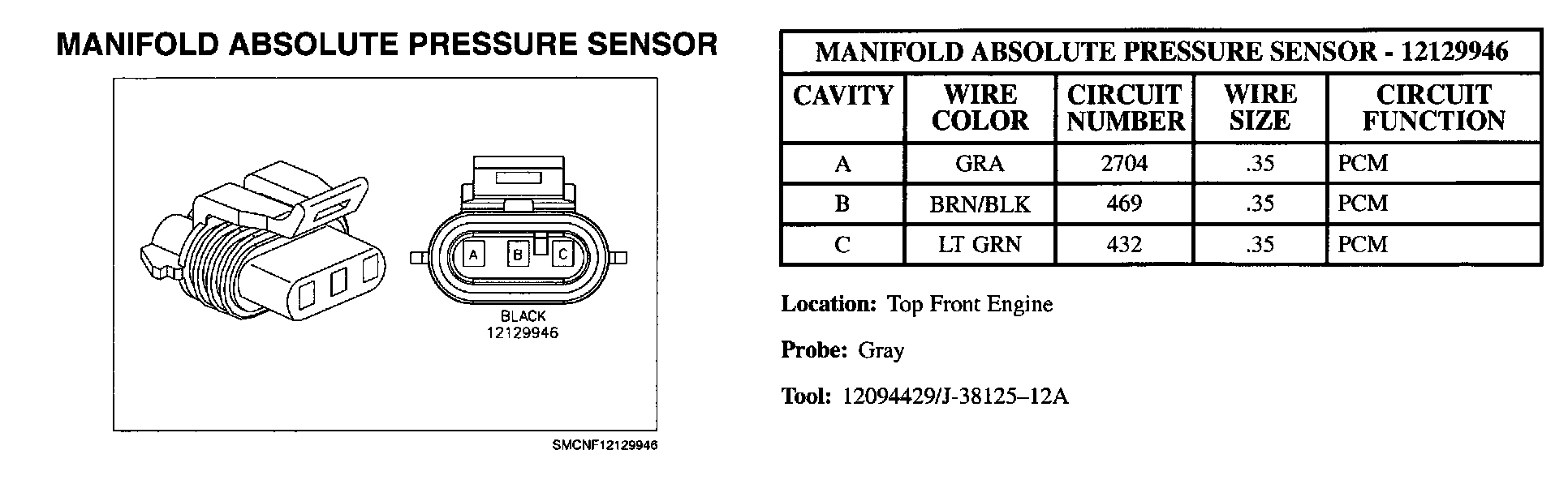

Manifold Absolute Pressure Sensor:
