Saturn
>>
2003
>>
L200 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
Data Link Connector
Serial Data Link Connector Face Views Part 2:

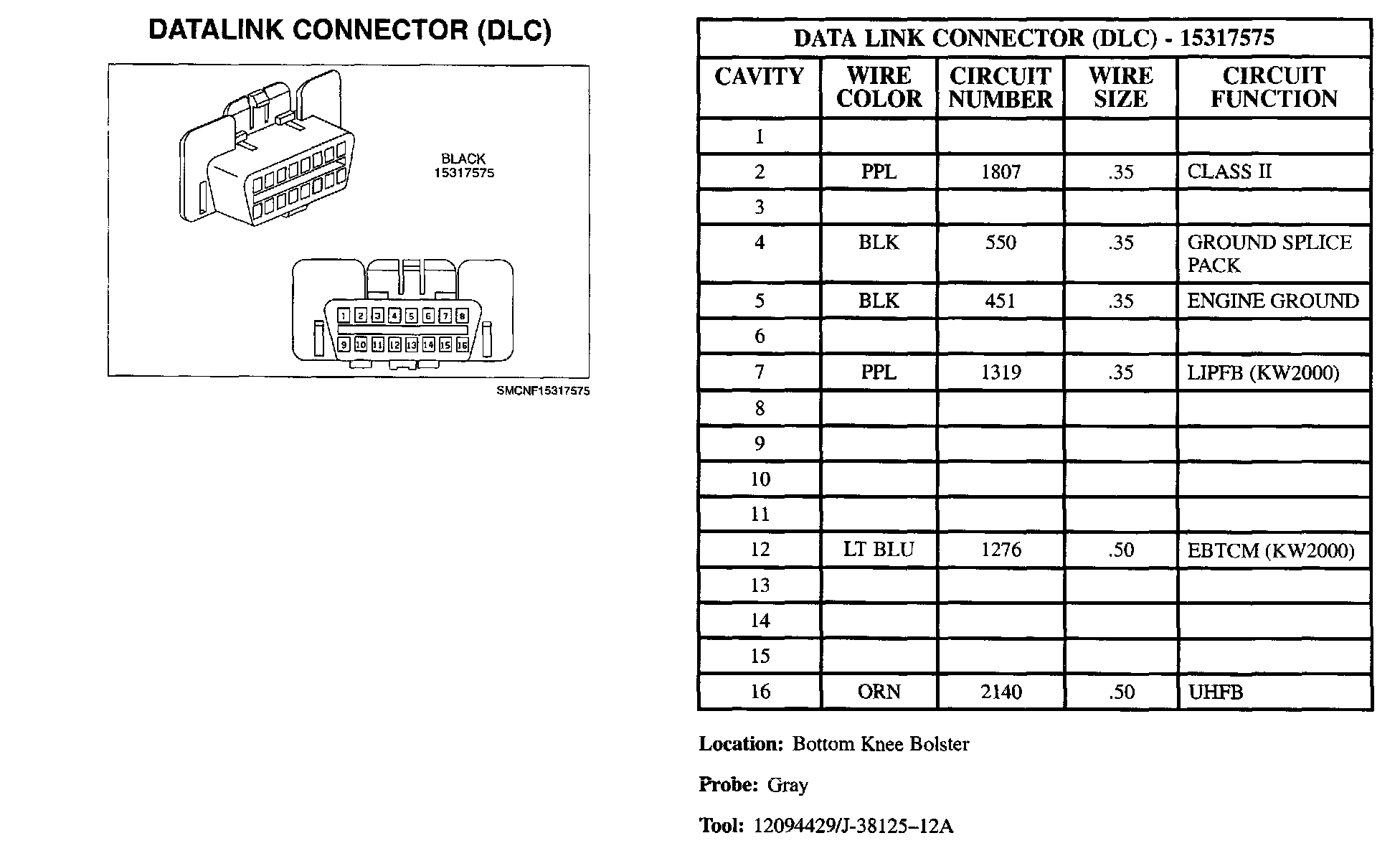

Datalink Connector (DLC):
