Console

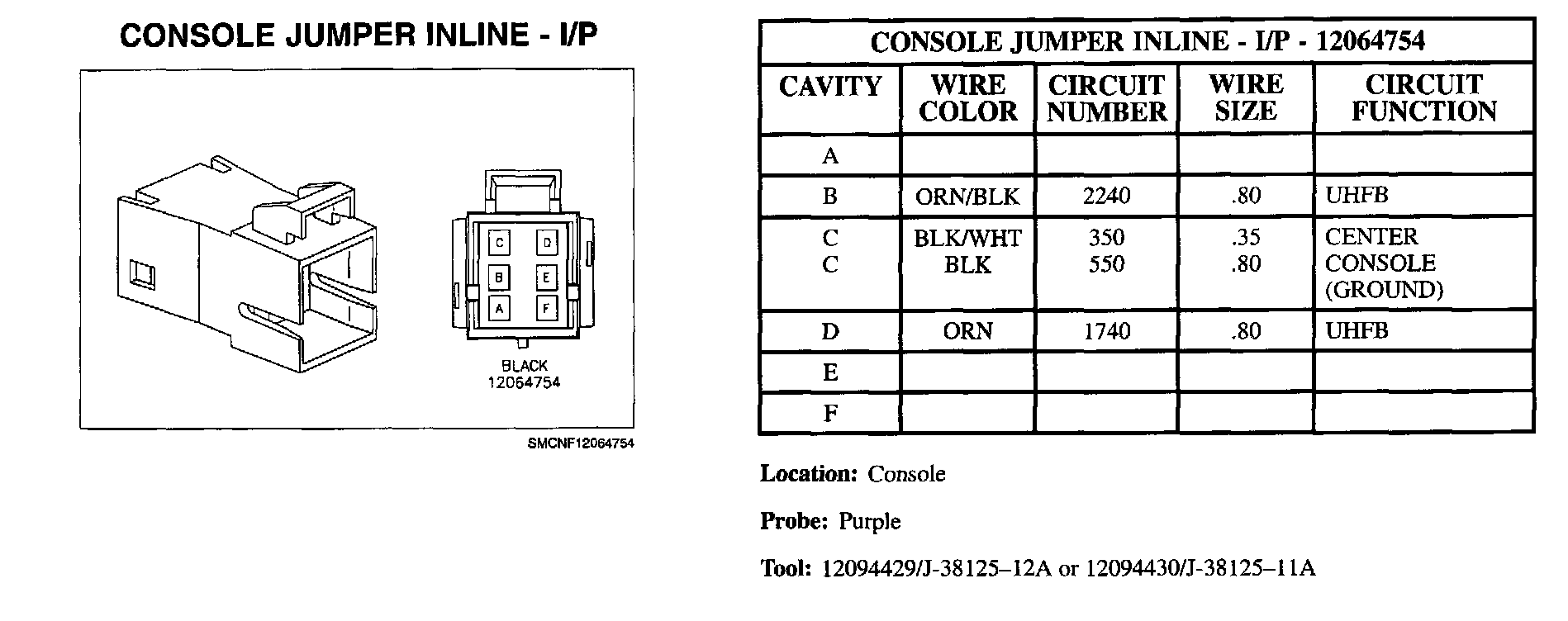

Console Jumper Inline - I/P:

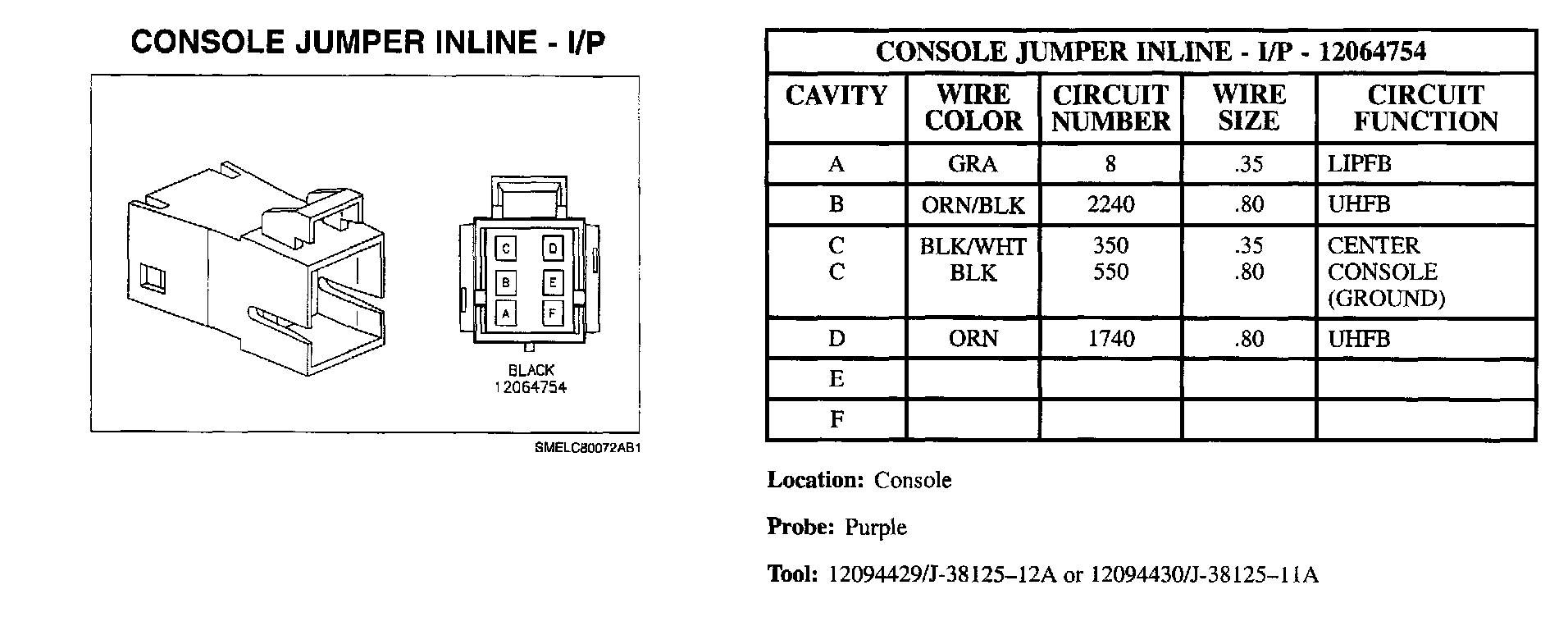

Console Jumper Inline - I/P:

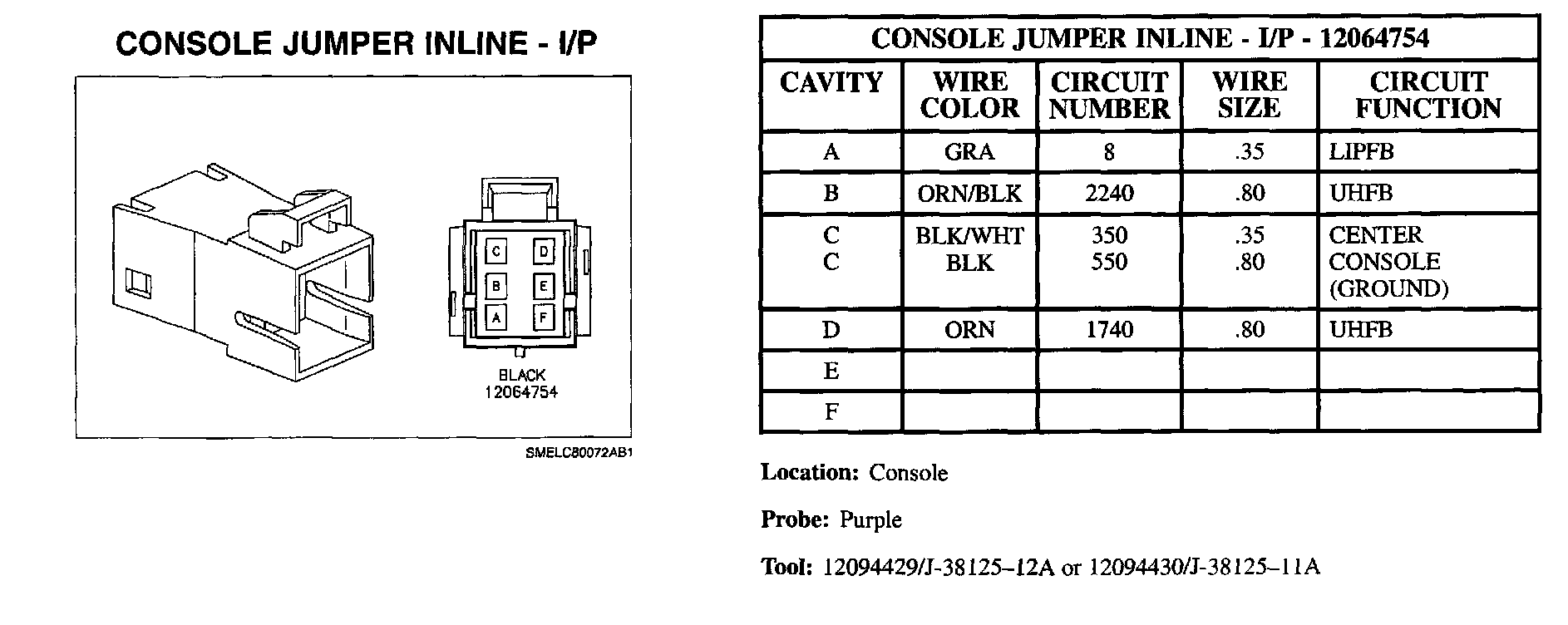

Console Jumper Inline - I/P:

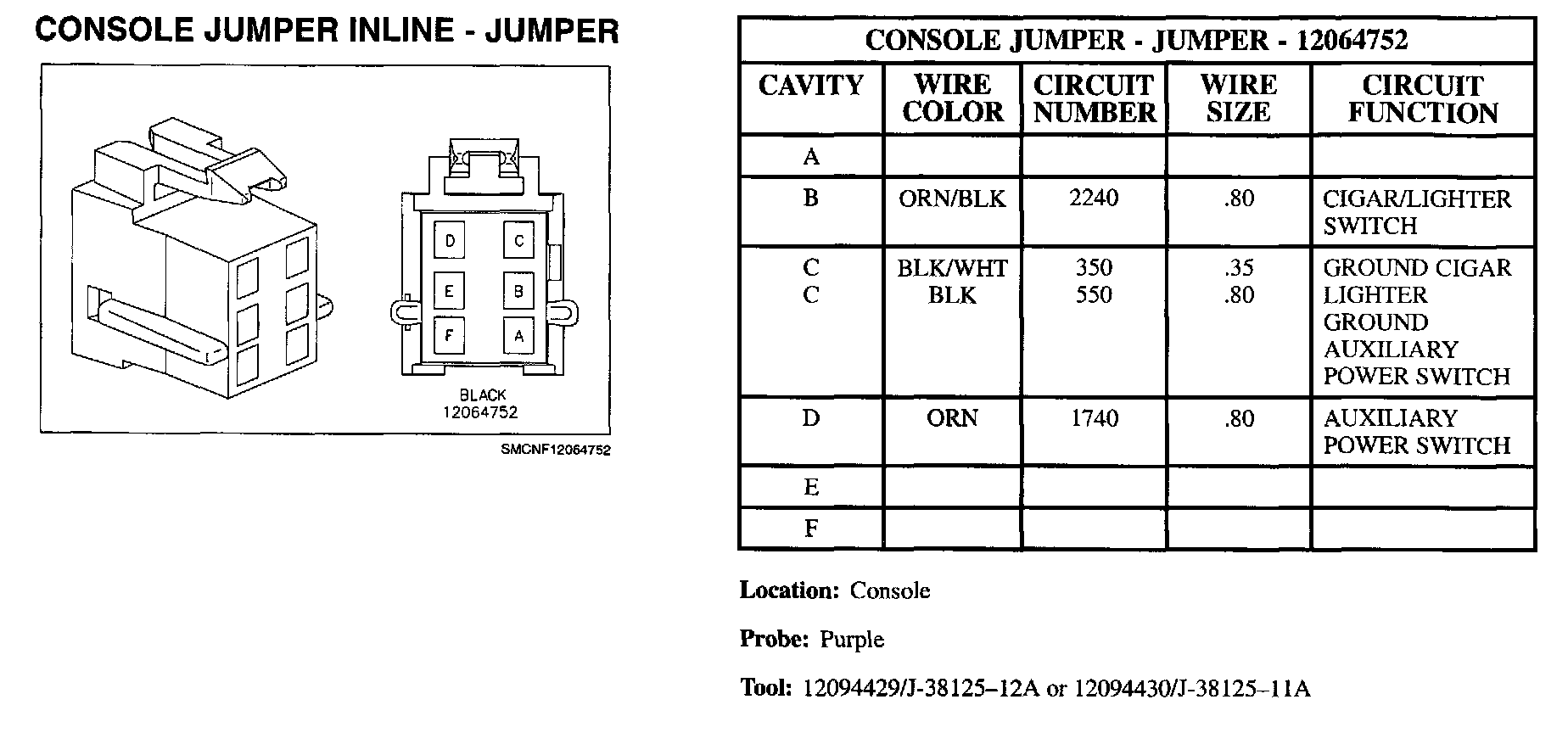

Console Jumper Inline - Jumper:
