Home >> Saturn >> 2003 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Speed Sensor, A/T

Transmission Speed Sensor, A/T

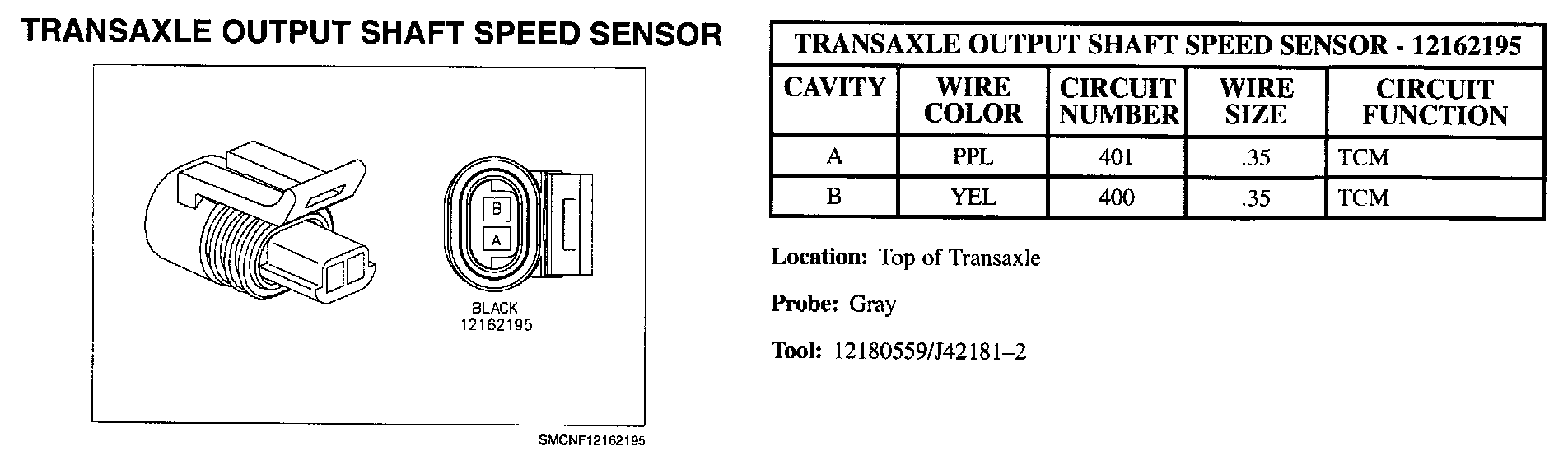

Transaxle Output Shaft Speed Sensor:
