Brake Fluid Level Sensor/Switch: Service and Repair

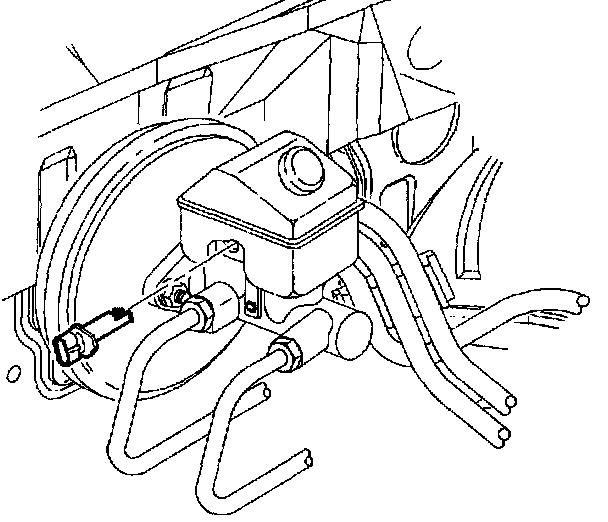

LOW BRAKE FLUID SWITCHREMOVAL
1. Disconnect low brake fluid switch electrical connector.
2. Remove low brake fluid switch by squeezing in tabs on opposite end of switch and pulling outward.
INSTALLATION
1. Install low brake fluid switch.
2. Connect electrical connector.
