Connector Identification

Fig 1: Identifying ECM Connector C1

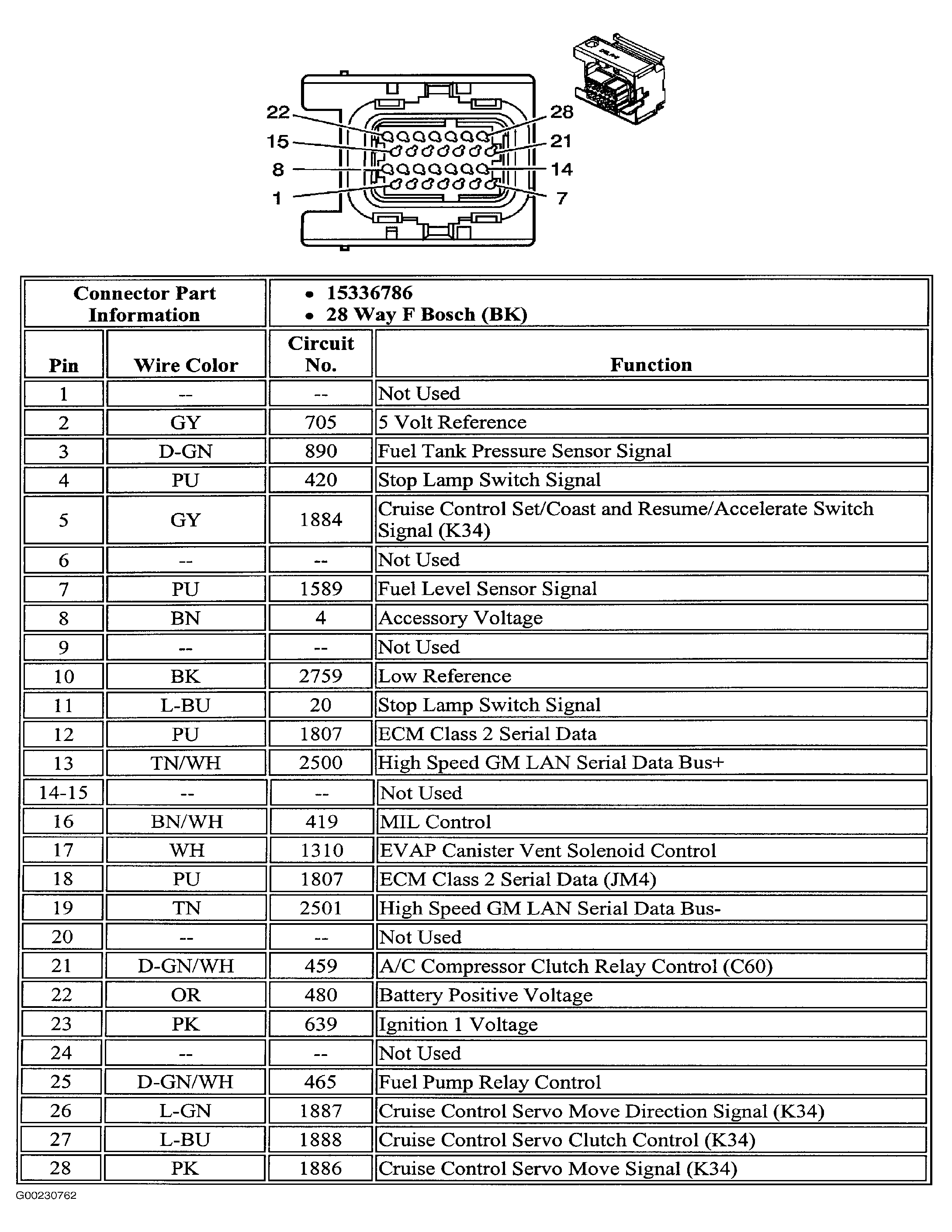

G00230762Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying ECM Connector C2 (1 Of 3)

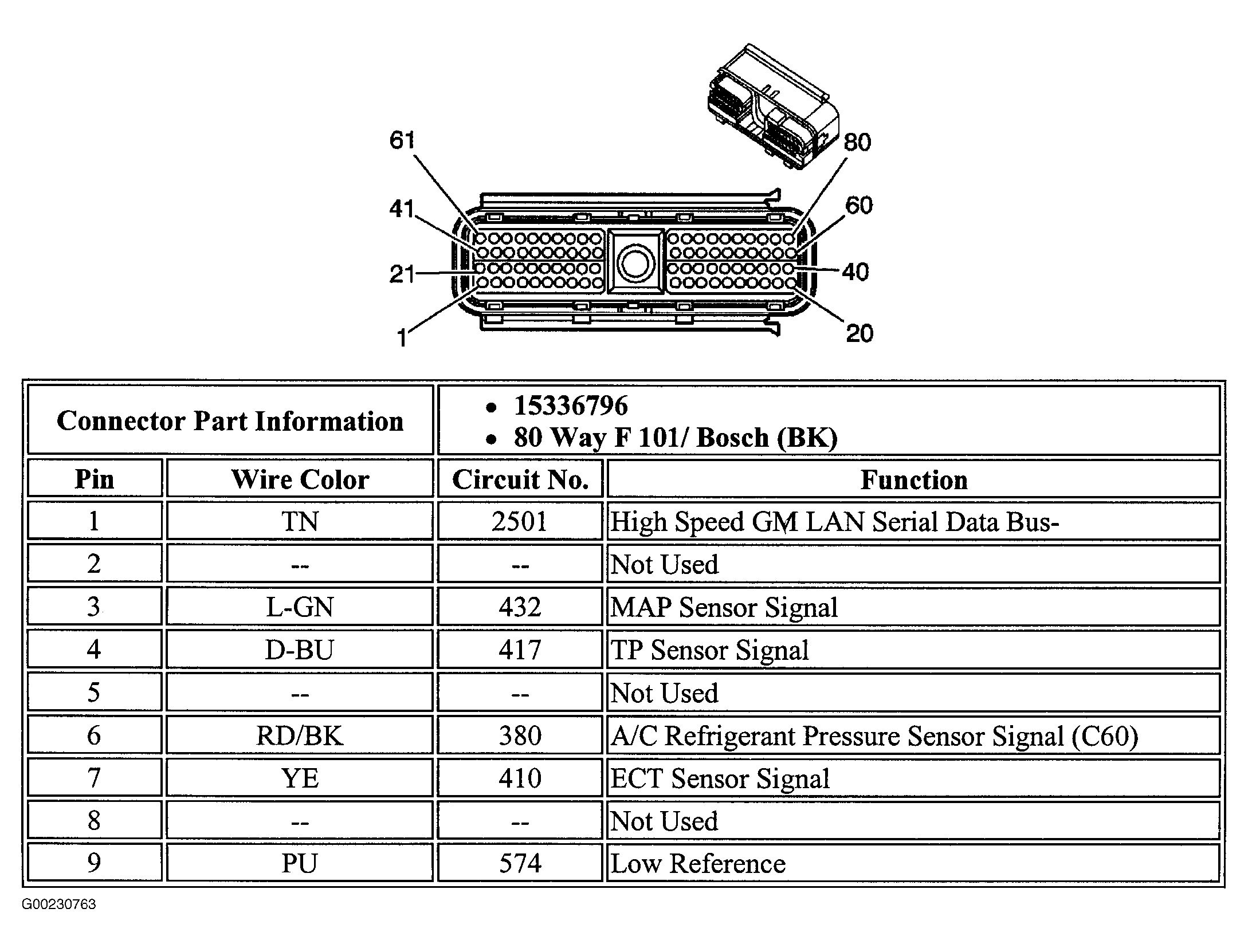

G00230763Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying ECM Connector C2 (2 Of 3)

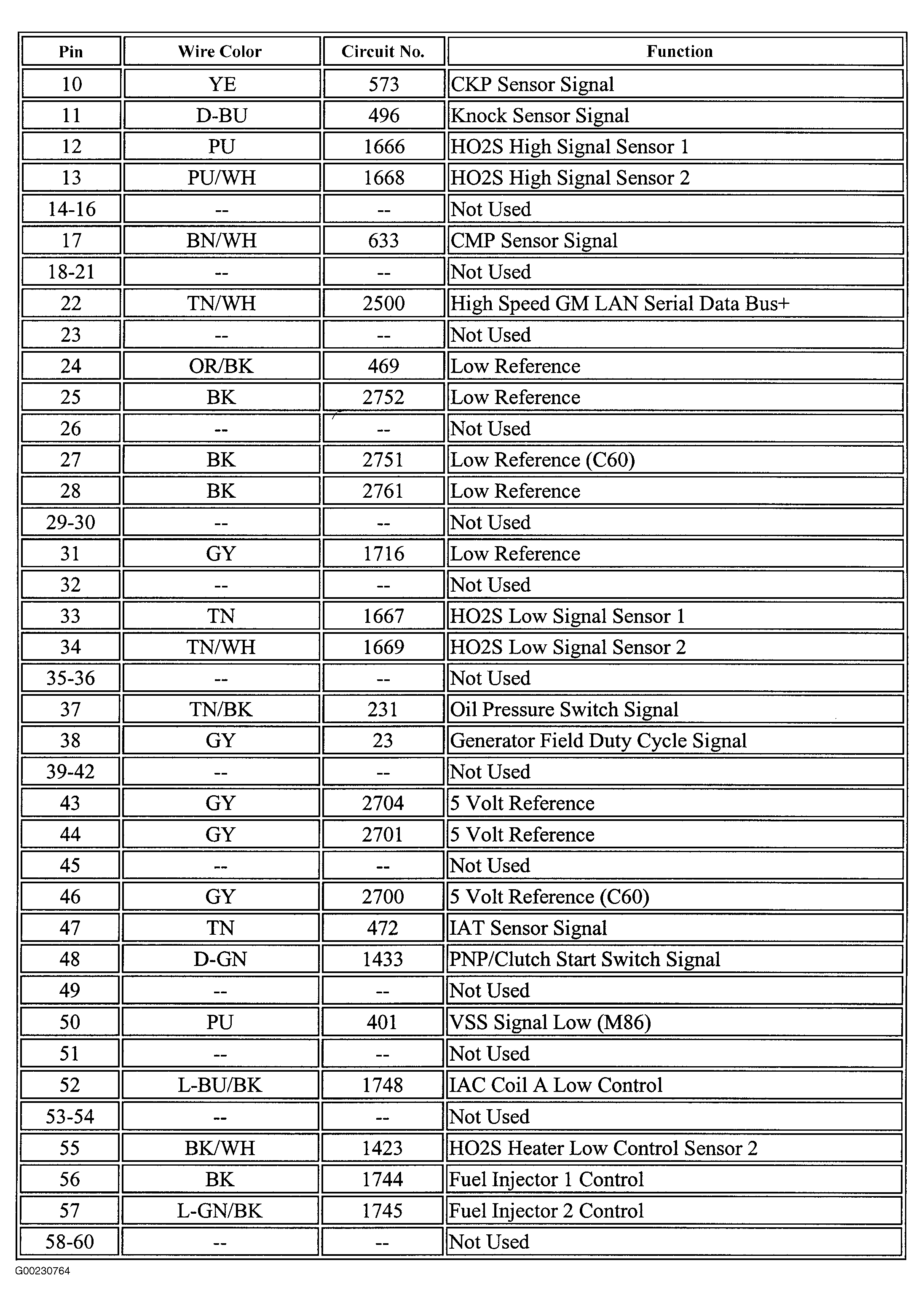

G00230764Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying ECM Connector C2 (3 Of 3)

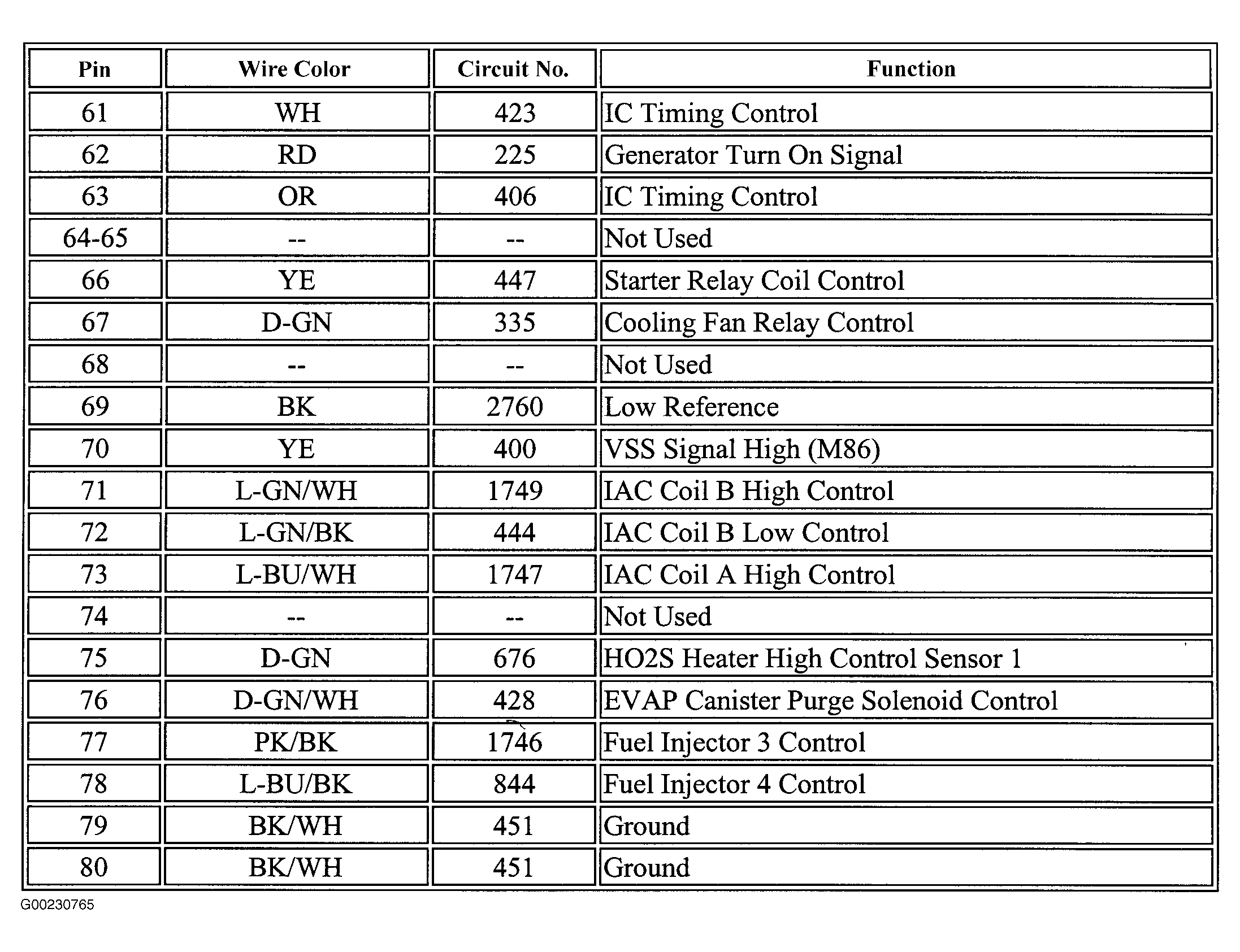

G00230765Courtesy of GENERAL MOTORS CORP.
