Automatic Transaxle - AF23-5
>>
Specifications
>>
Component Resistance
Component Resistance

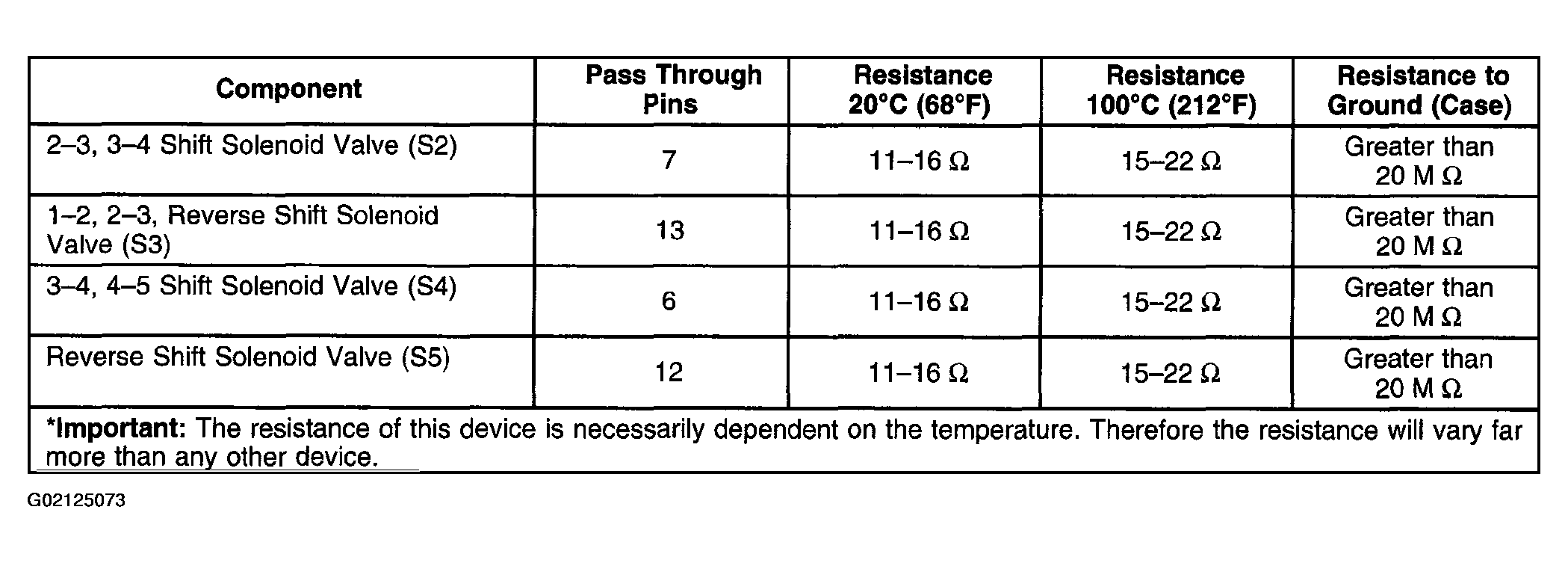

Fig 1: Component Resistance (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

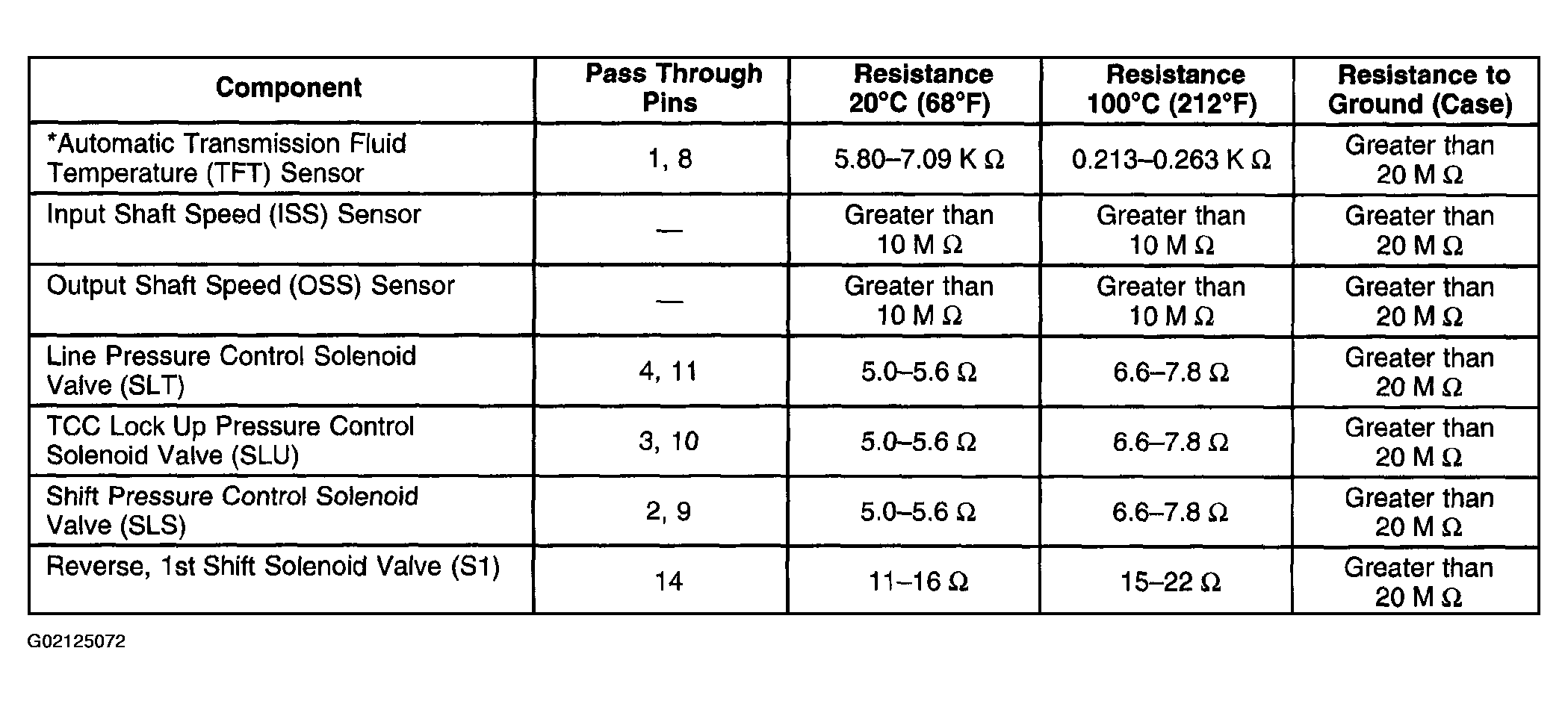

Fig 2: Component Resistance (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
