Removal Procedure

  1. Remove the console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages, and Console.
  2. Disconnect the shift cable from the shift control assembly.
  3. Remove the shift control nuts.
  4. Disconnect the shift lock solenoid harness connector.
  5. Remove the shift control from the vehicle.

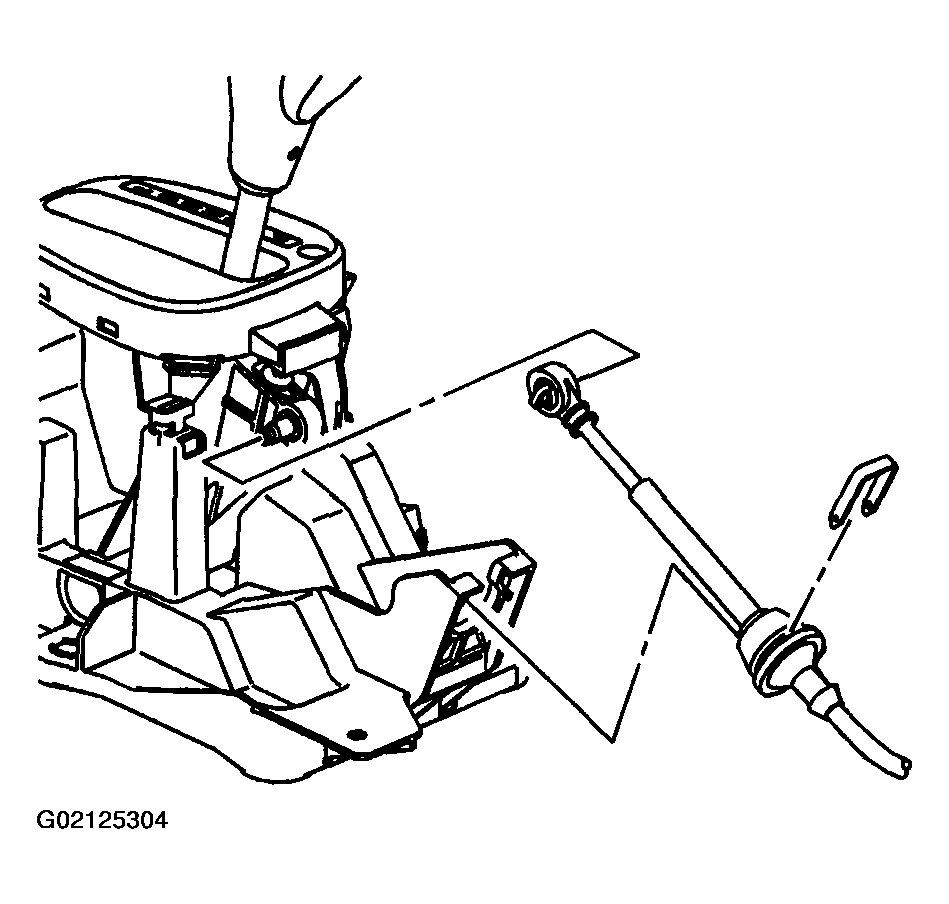

    Fig 1: Removing Shift Control
    G02125304Courtesy of GENERAL MOTORS CORP.
