Output Speed Sensor Installation

  1. Apply automatic transmission fluid to the new output speed sensor O-ring seal (63).
  2. Install the new output speed sensor O-ring seal (63) onto the output speed sensor (62).
  3. Install the output speed sensor (62) into the transmission case assembly (17).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the M6 x 1.0 x 16 mm output speed sensor bolt (61).

    Tighten

    Tighten the output speed sensor bolt to 3.9-6.9 N.m (34.5-61.0 lb in).

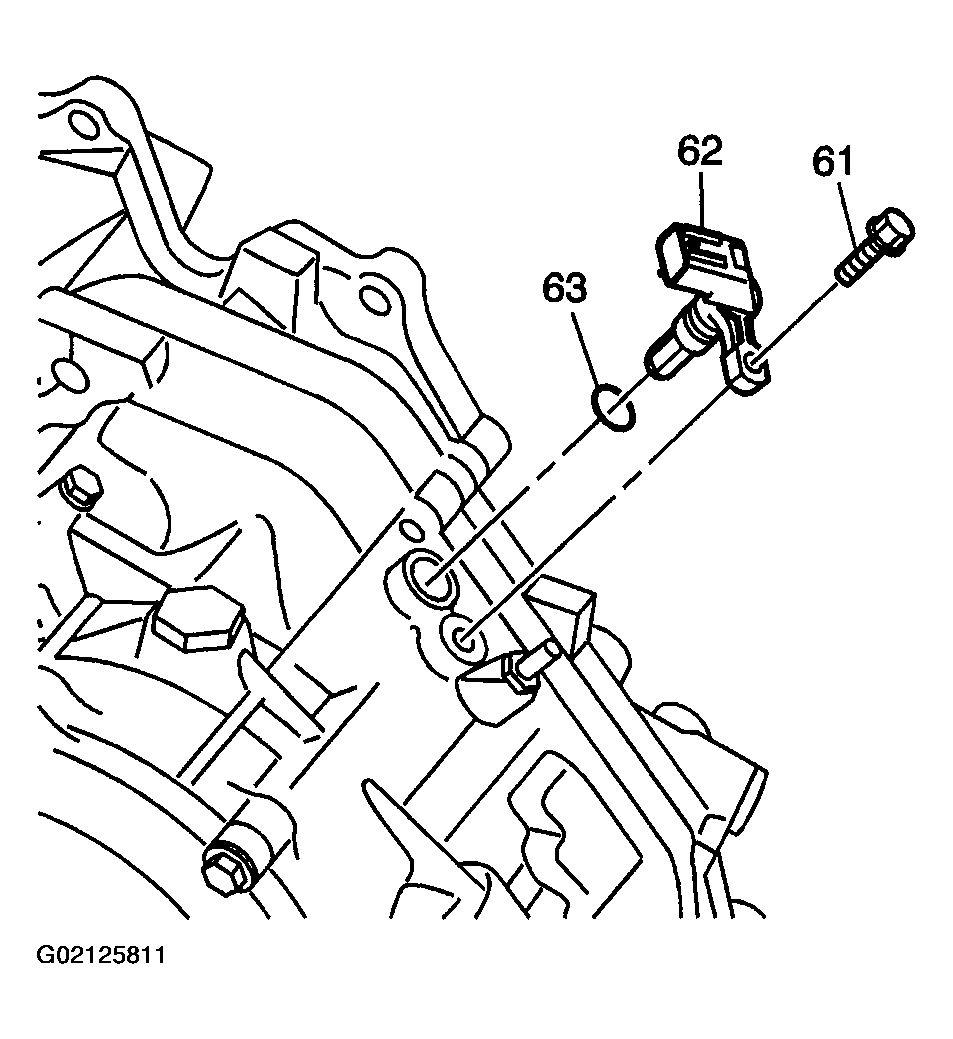

    Fig 1: Installing Output Speed Sensor, O-Ring Seal & Bolt
    G02125811Courtesy of GENERAL MOTORS CORP.
