Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> Transmission Inline Connector, Transmission Side

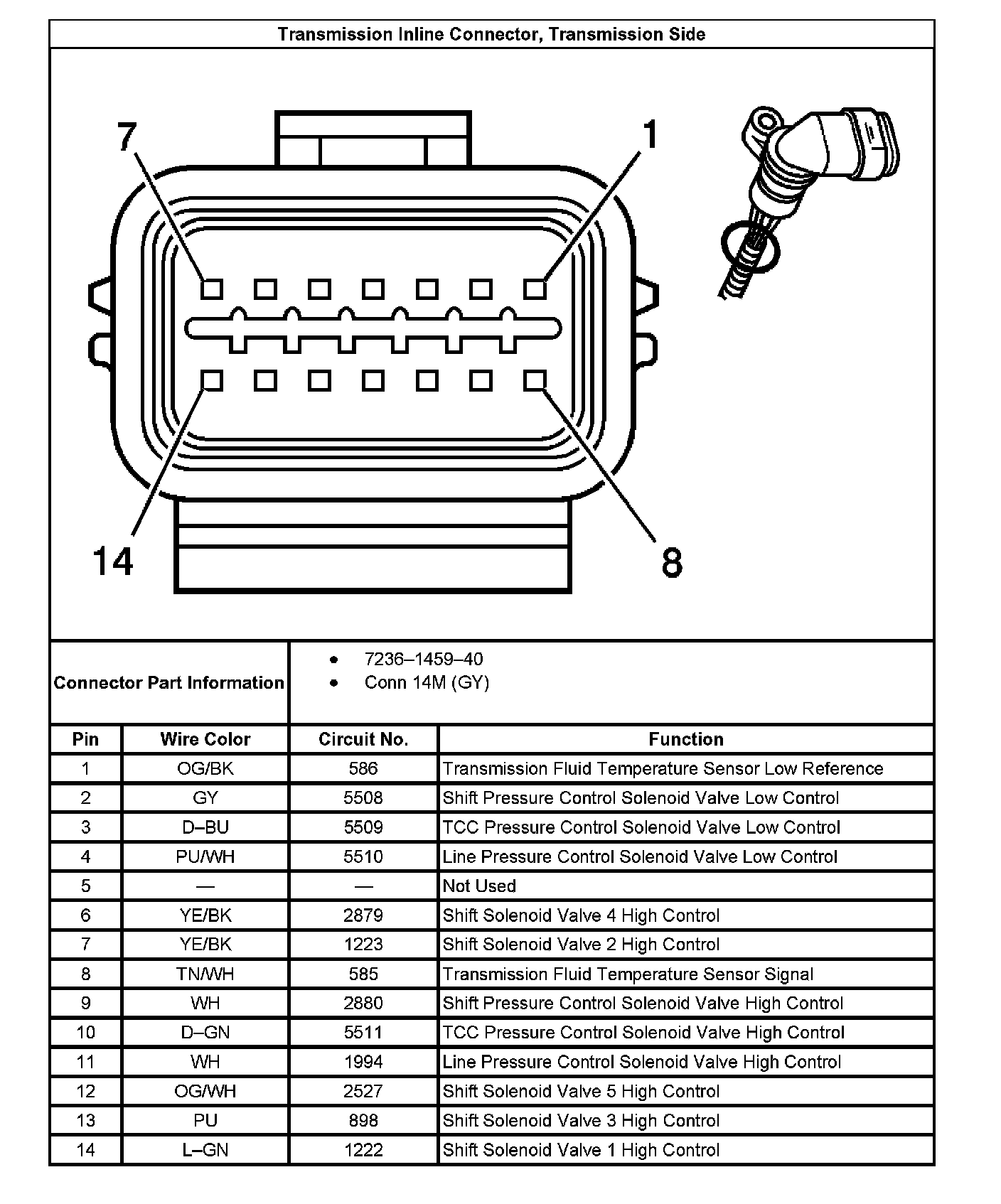

Transmission Inline Connector, Transmission Side
