Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

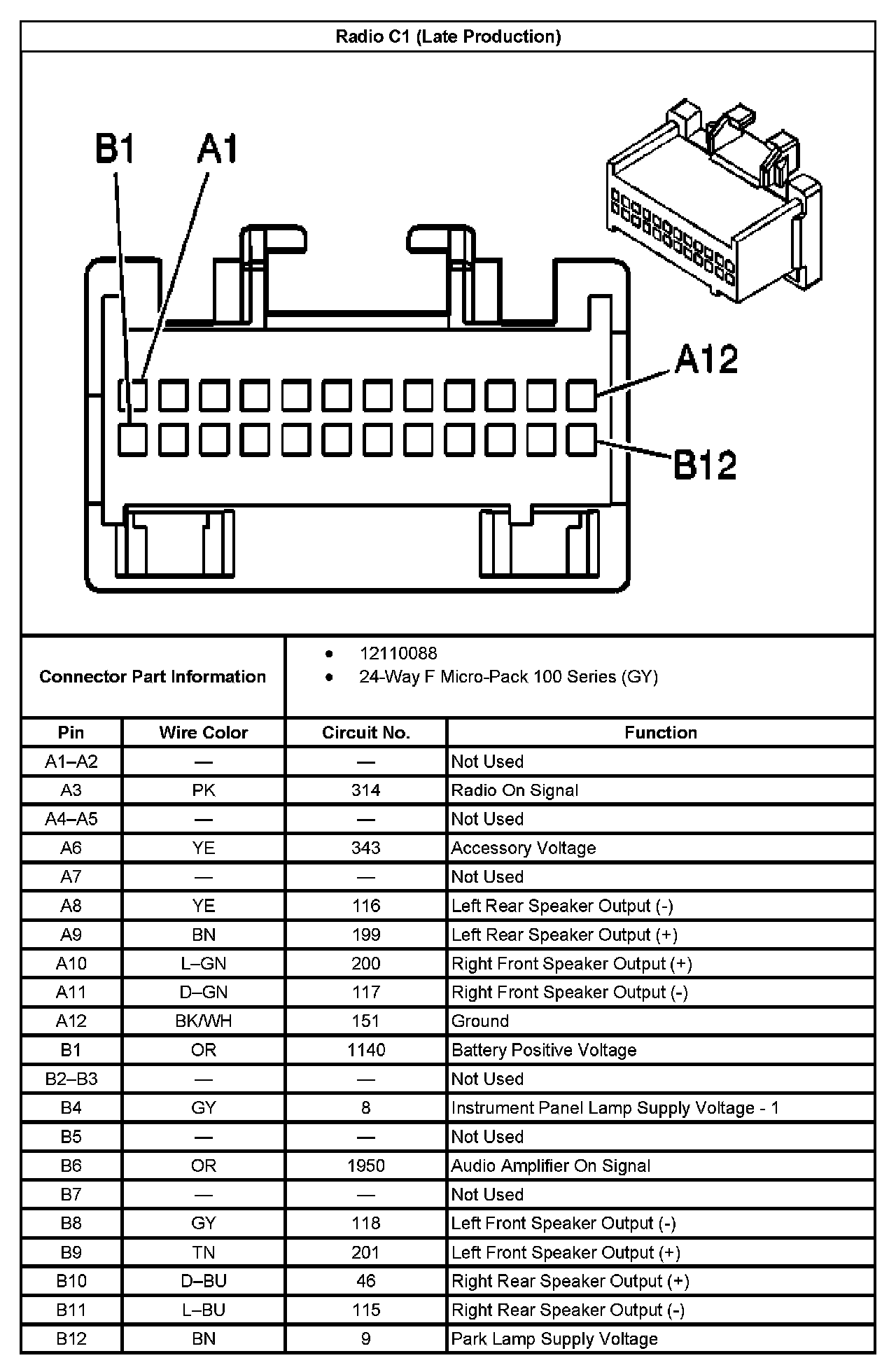

Radio C1 (Late Production):

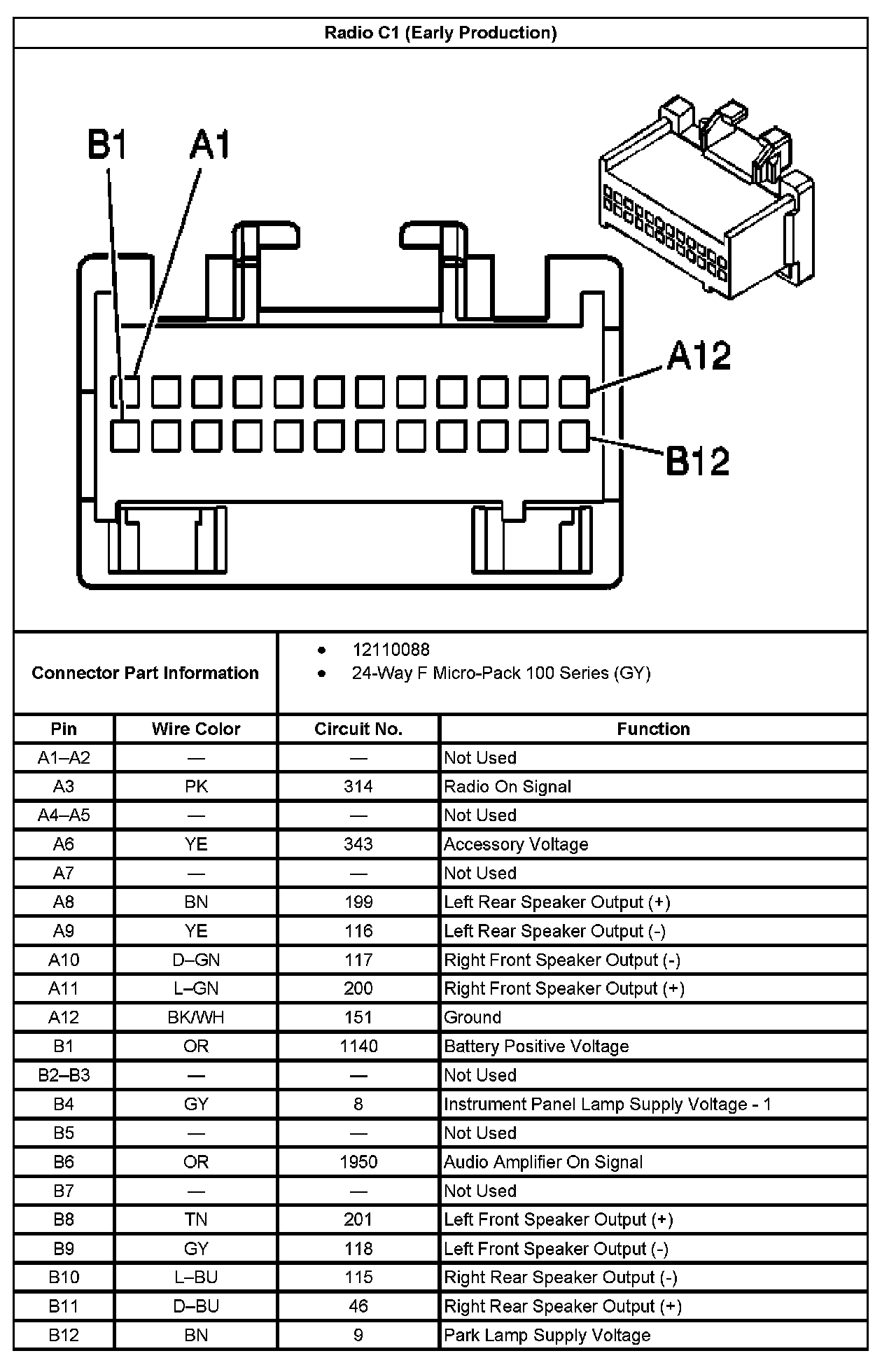

Radio C1 (Early Production):

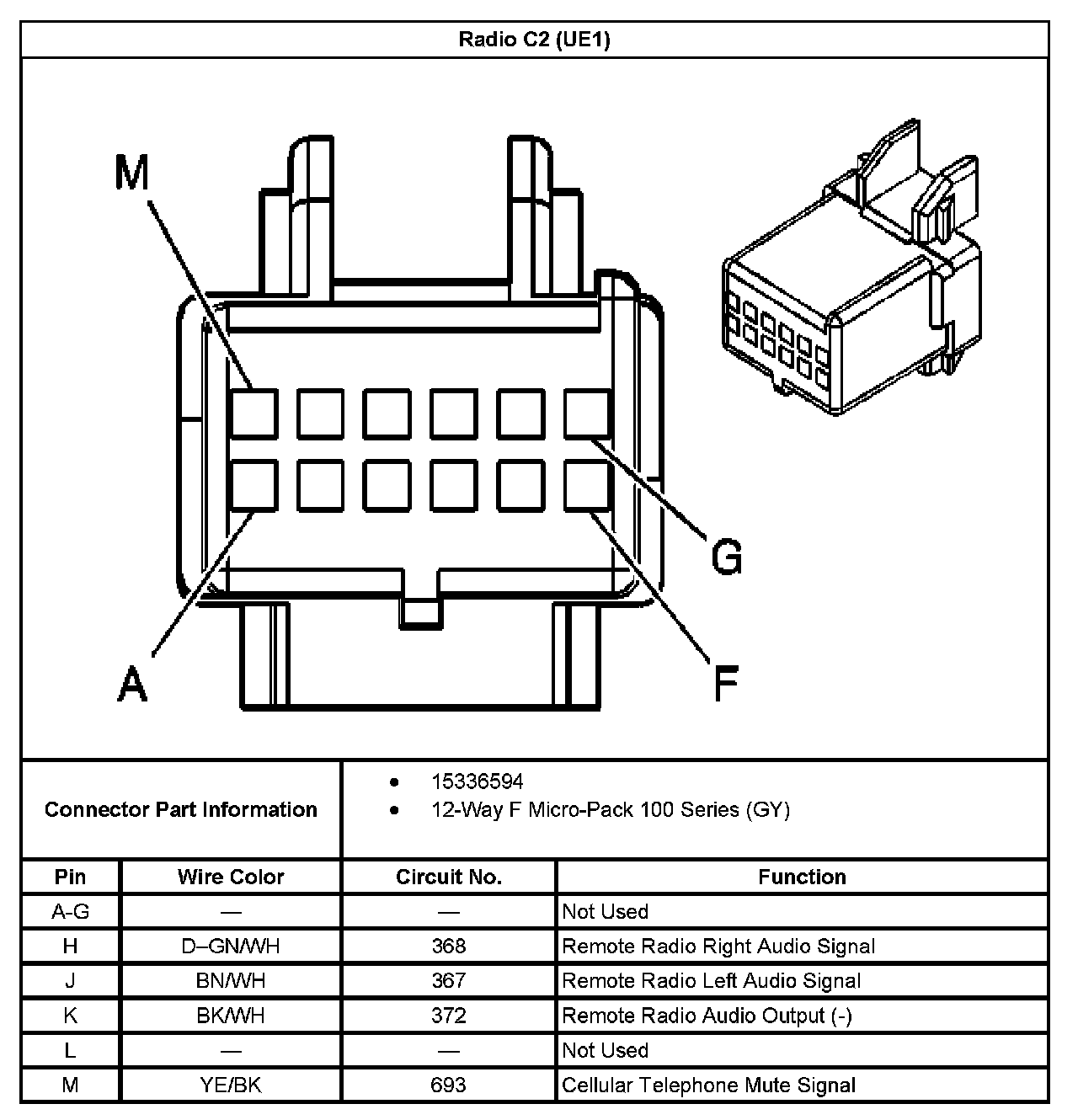

Radio C2 (With RPO Code UE1):
