Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hydraulic System, Brakes >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

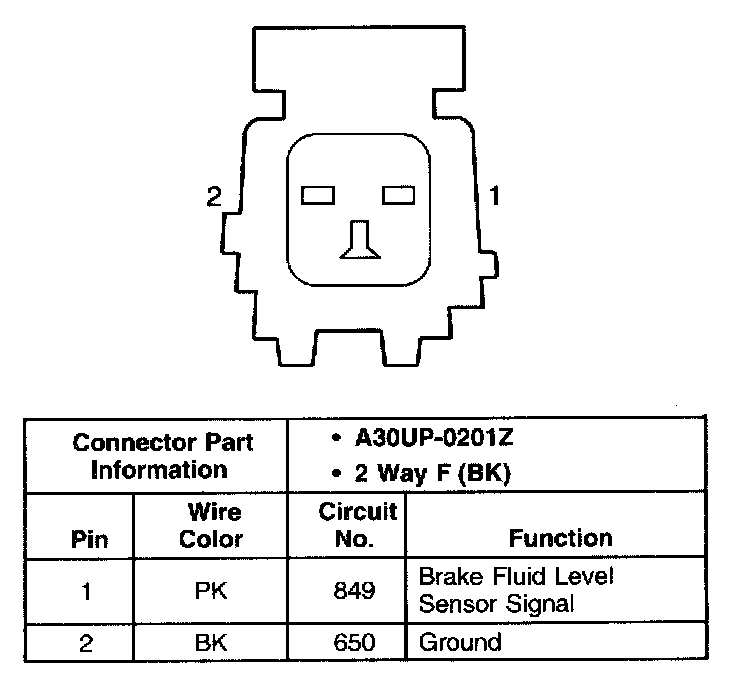

Brake Fluid Level Switch:
