Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Underhood C3

Fuse Block - Underhood C3

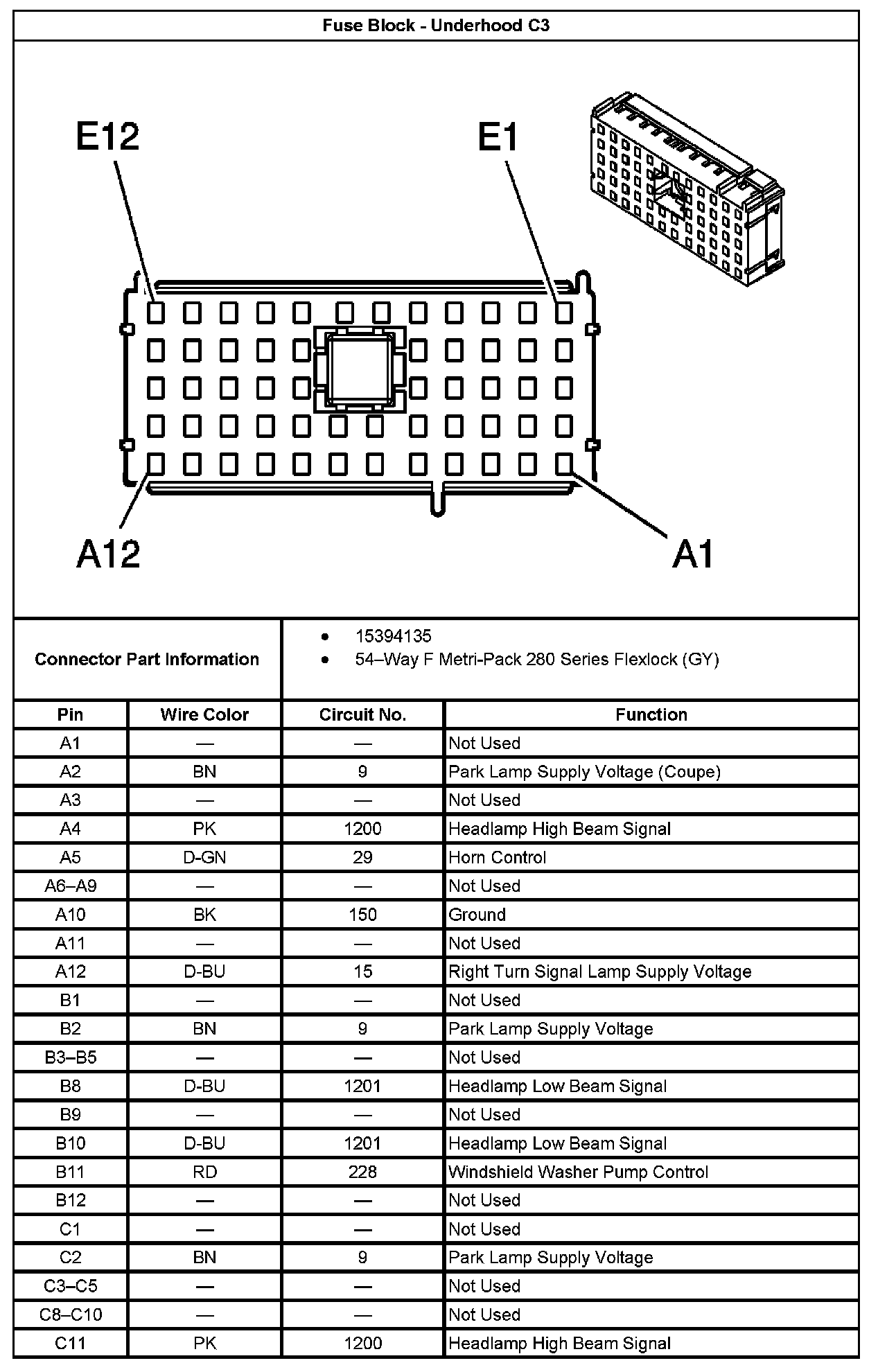

Fuse Block - Underhood C3 Part 1:

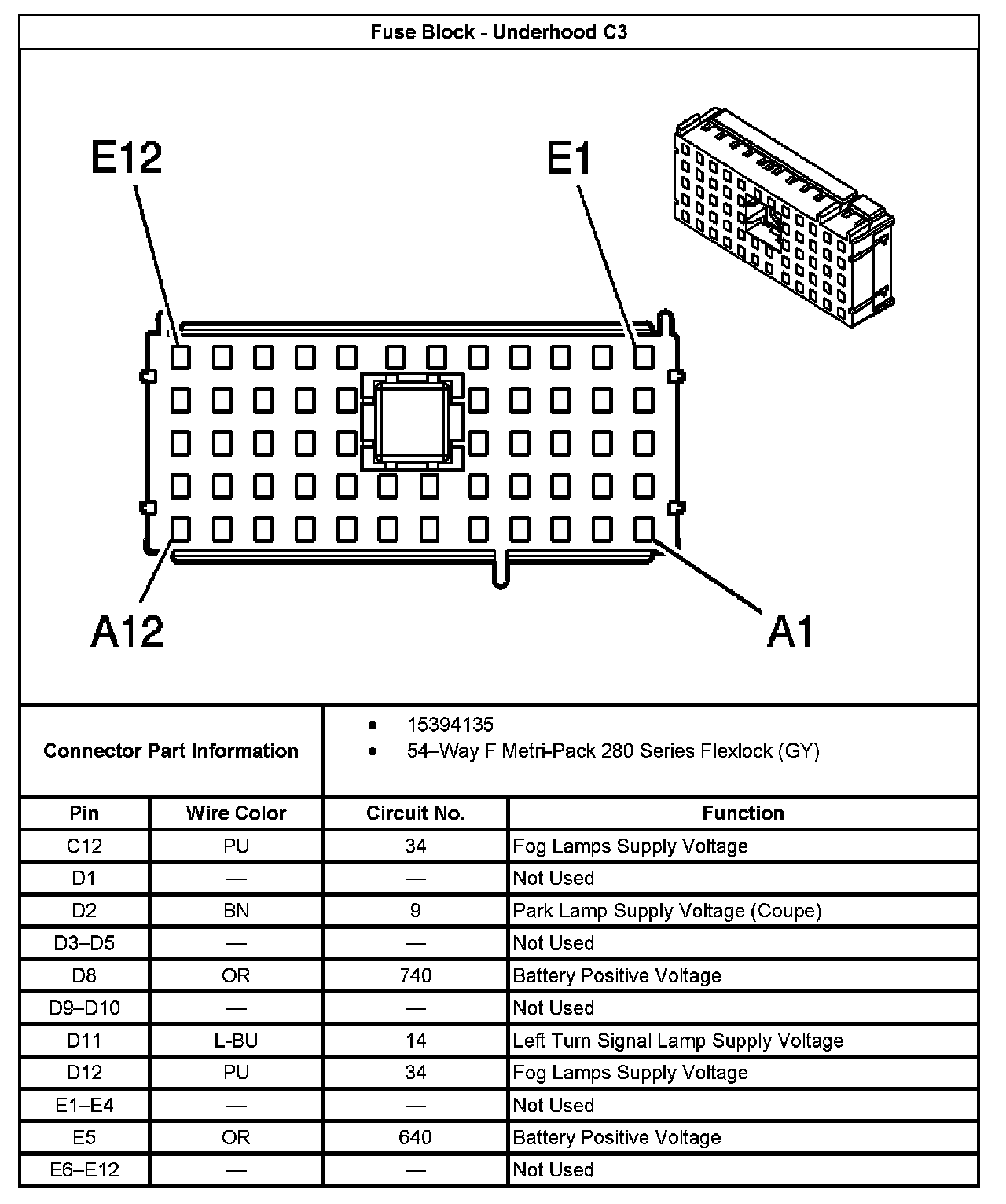

Fuse Block - Underhood C3 Part 2:
