Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Continuously Variable Transmission/Transaxle, CVT >> Transmission Speed Sensor, CVT

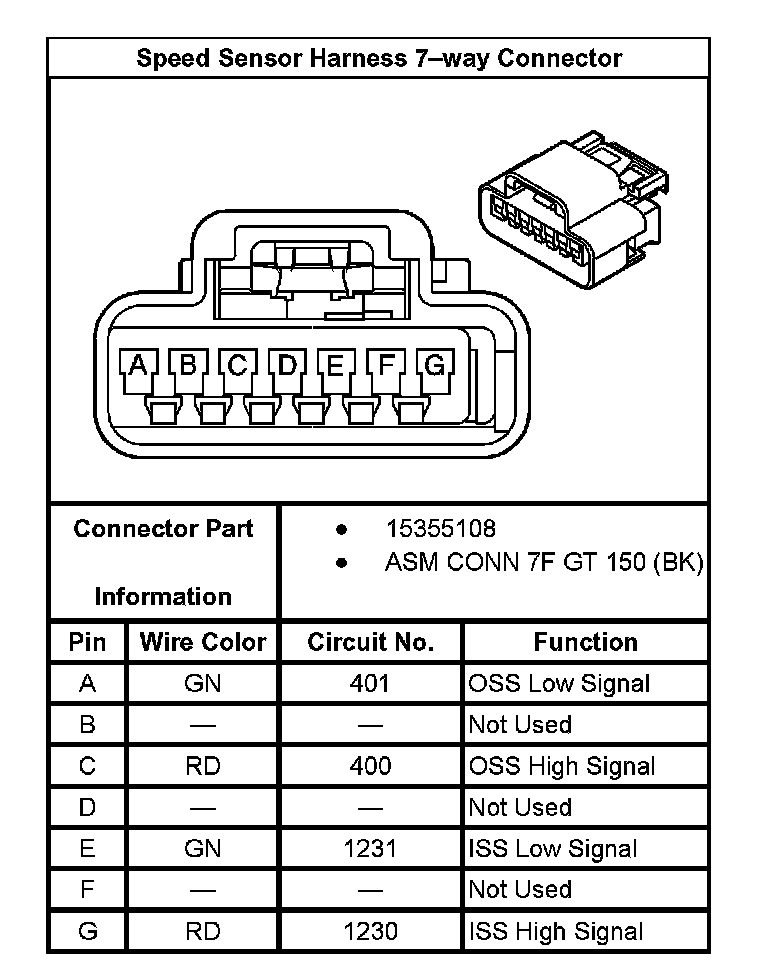

Transmission Speed Sensor, CVT
