Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Light Switch >> AF23-5

AF23-5

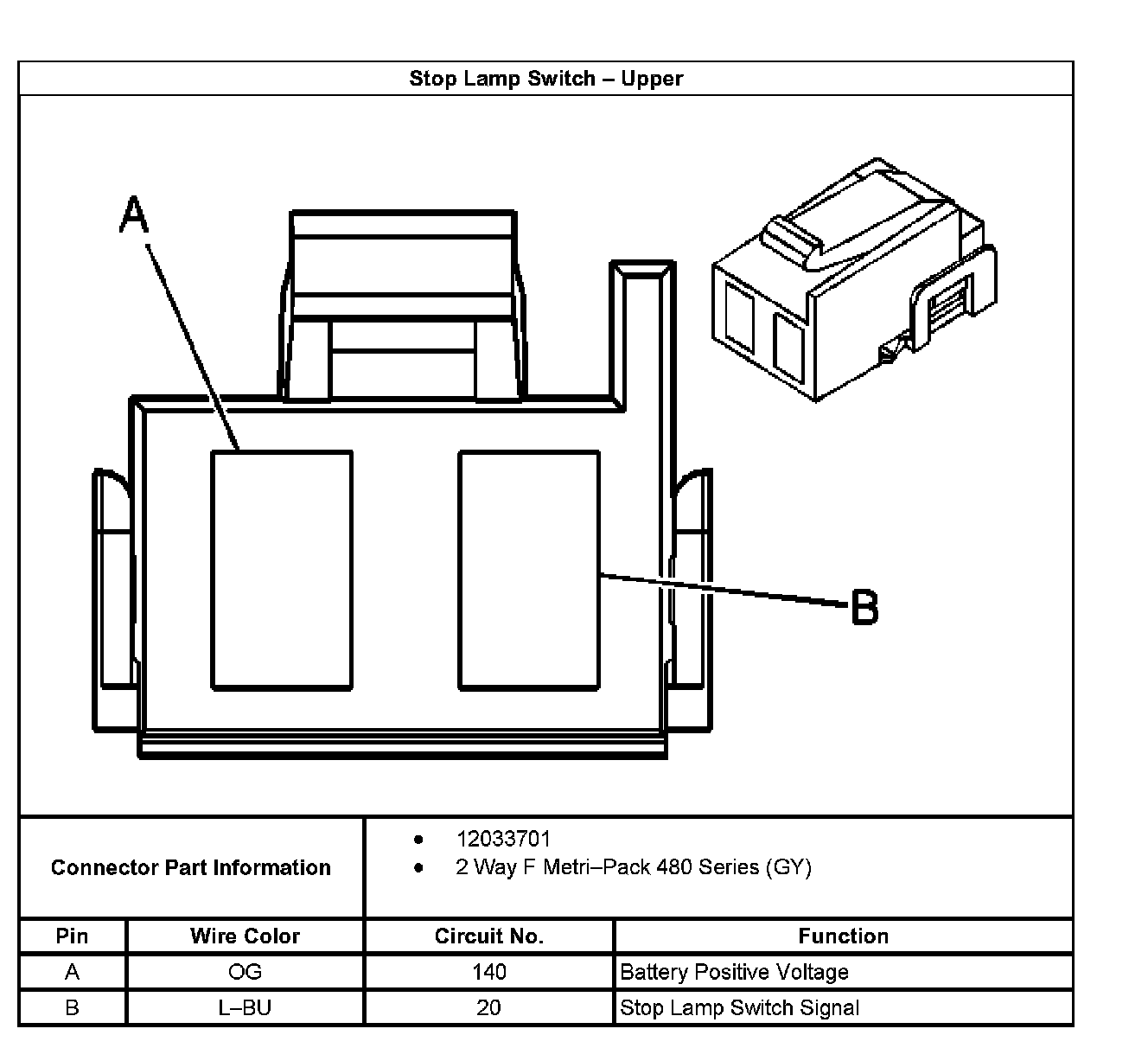

Stop Lamp Switch Upper:

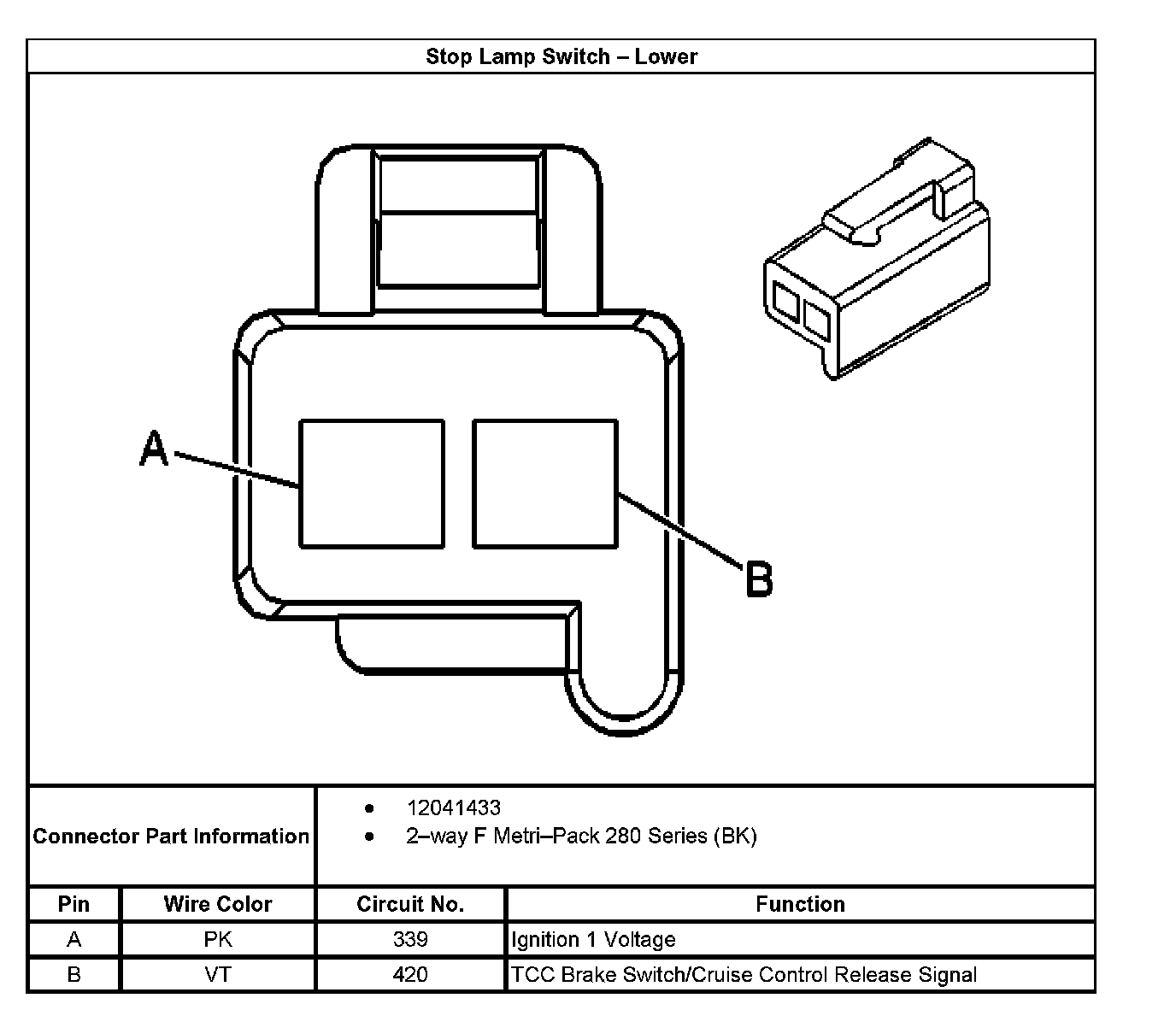

Stop Lamp Switch Lower:
