LEMON Manuals
: Even more car manuals for everyone
Home
>>
Saturn
>>
2003
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
Brake Lamp

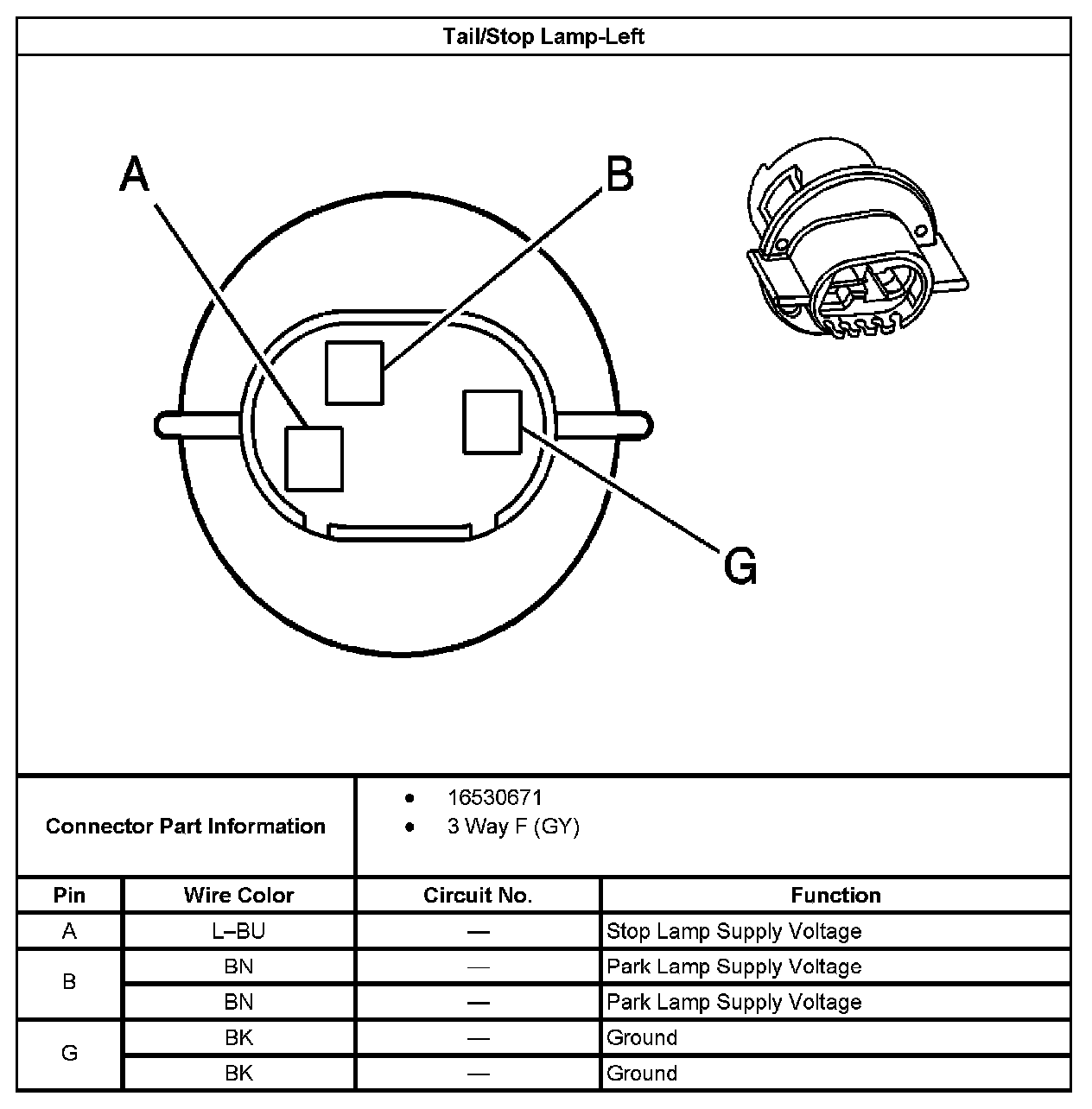

Tail/Stop Lamp - Left:

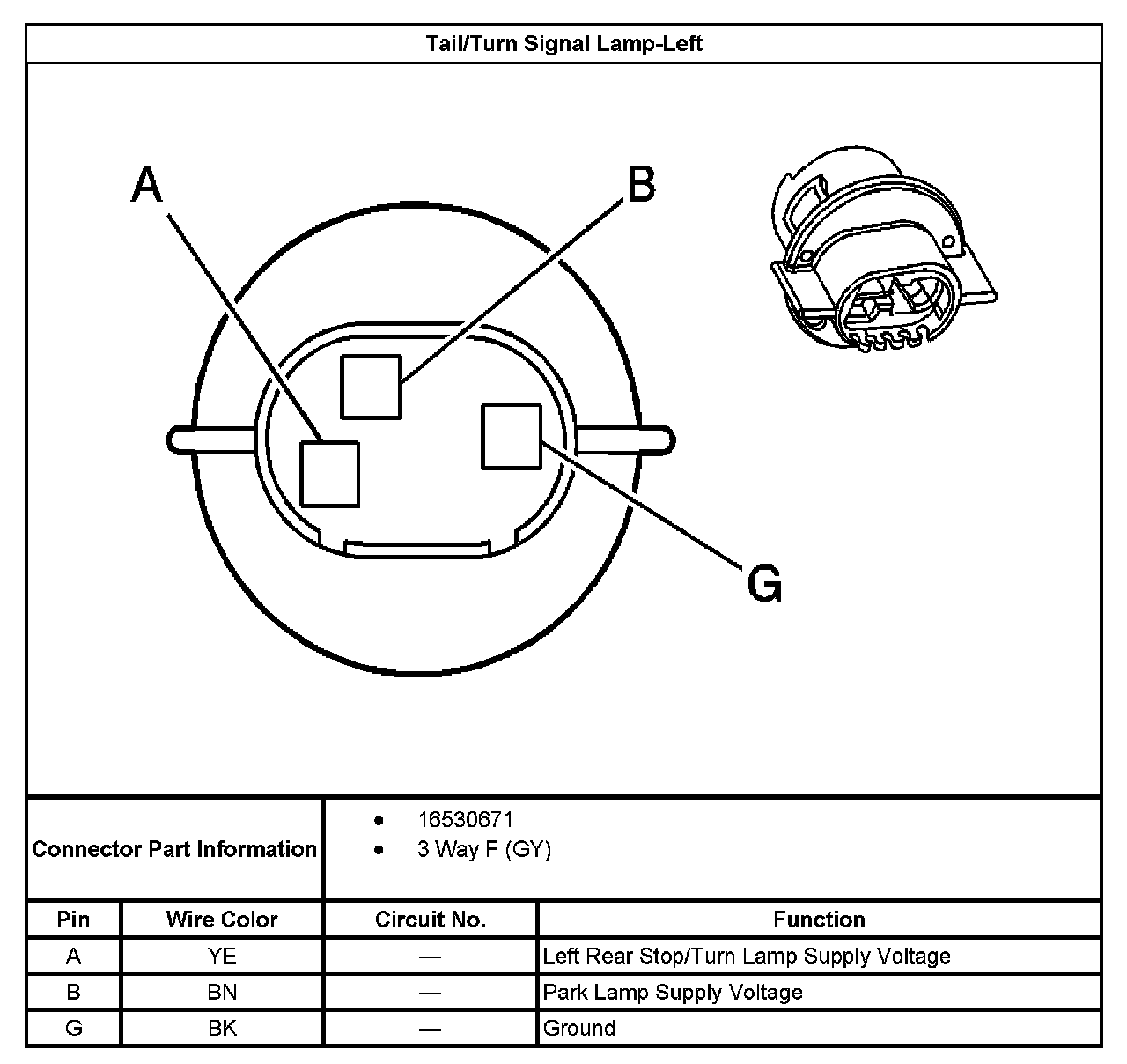

Tail/Turn Signal Lamp - Left:

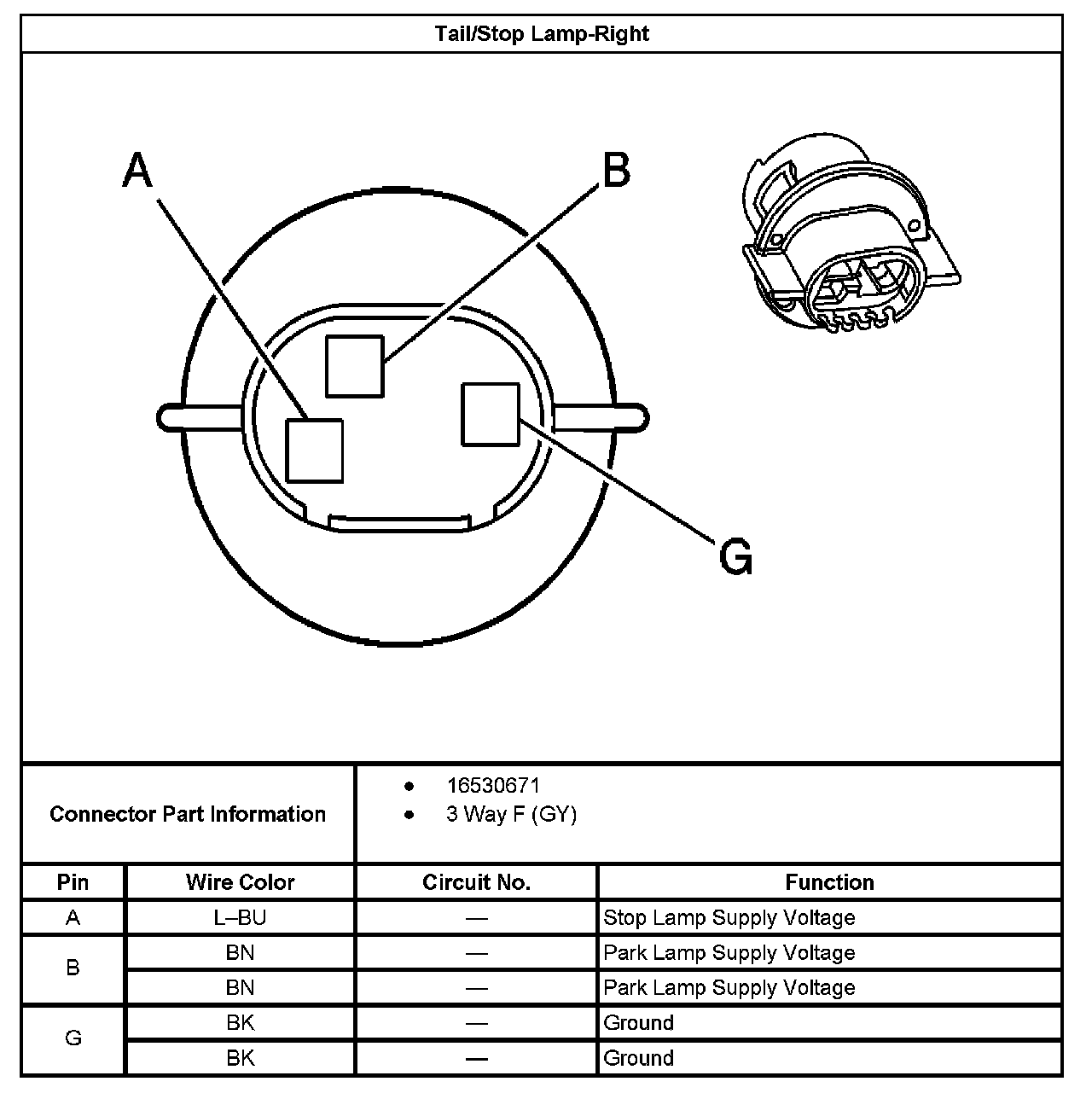

Tail/Stop Lamp - Right:

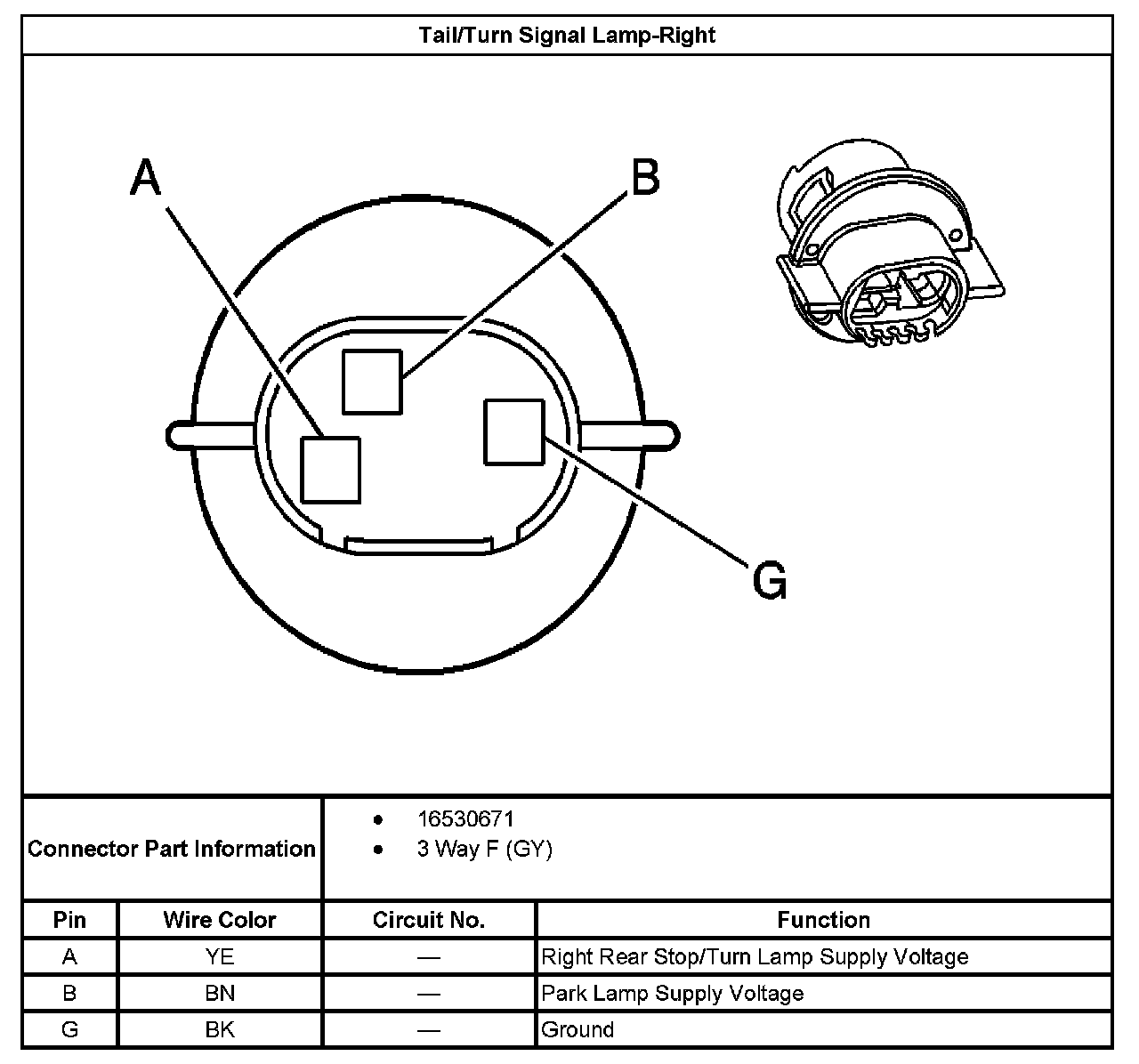

Tail/Turn Signal Lamp - Right:
