Amplifier, Sound System

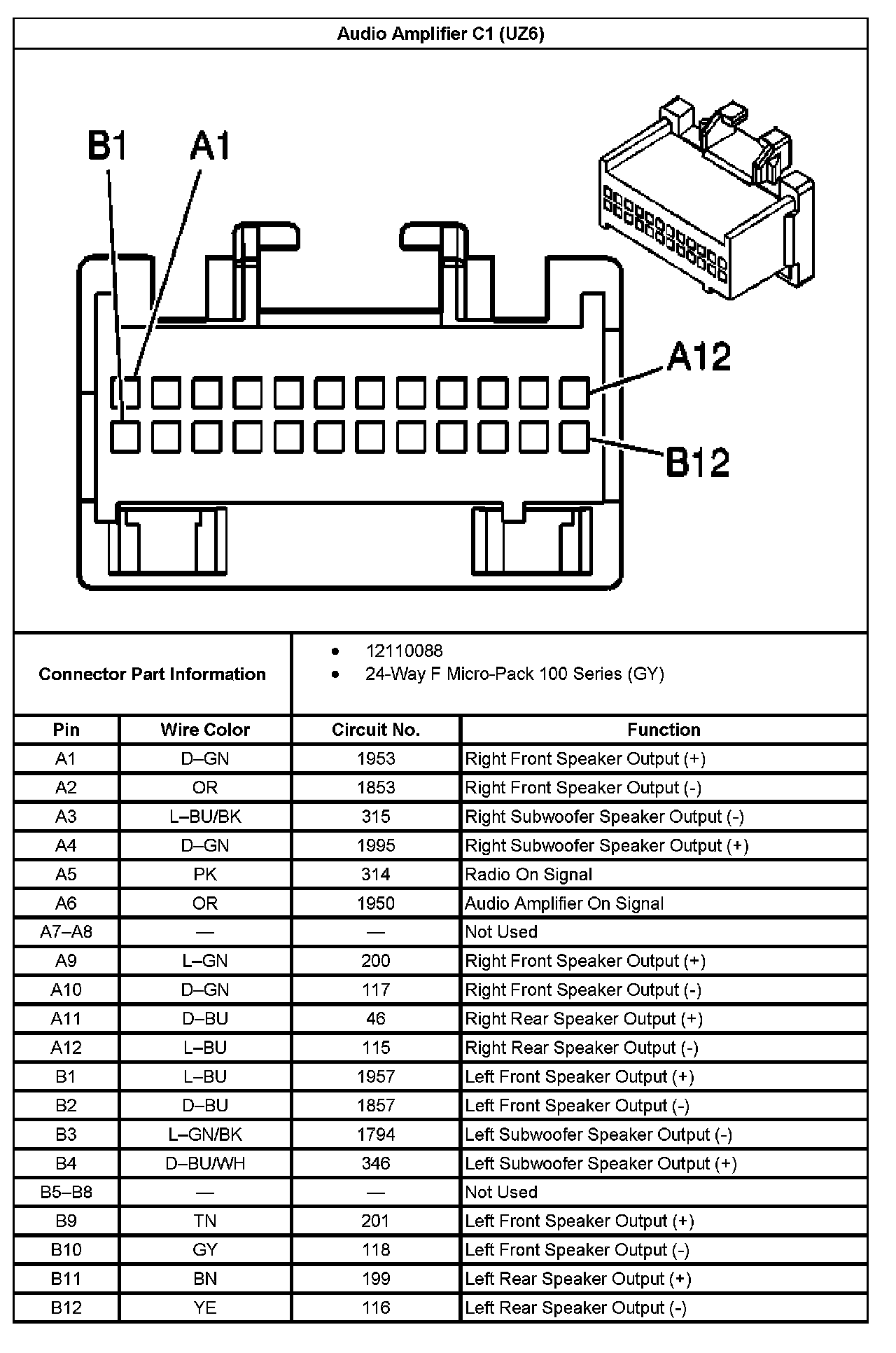

Audio Amplifier C1 (With RPO Code UZ6):



Audio Amplifier C2 (With RPO Code UZ6):
