Connector Identification

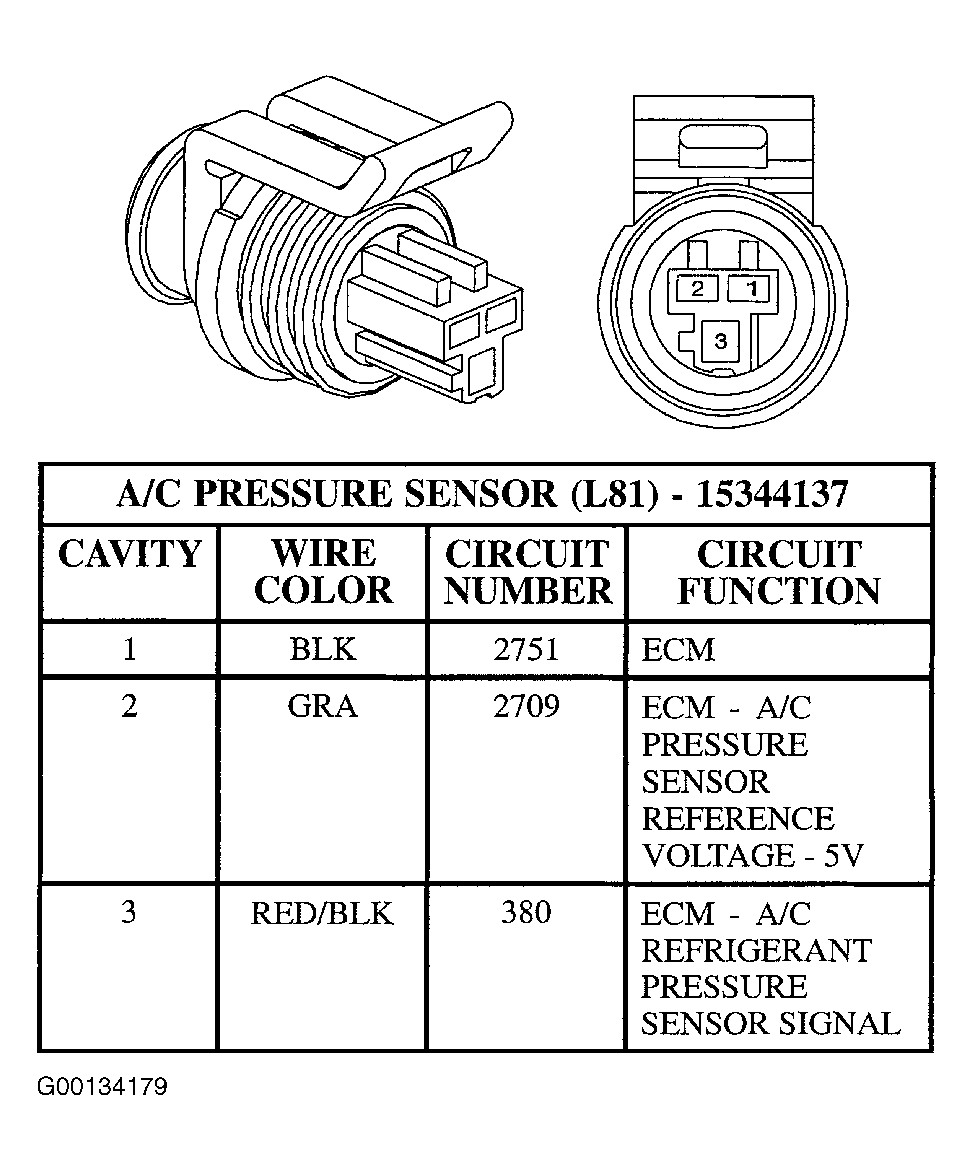

Fig 1: Identifying A/C Pressure Sensor Connector Terminals

G00134179

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Accelerator Pedal Position Sensor Connector Terminals

G00134145

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Brake Switch Connector Terminals

G00134147

Courtesy of GENERAL MOTORS CORP.

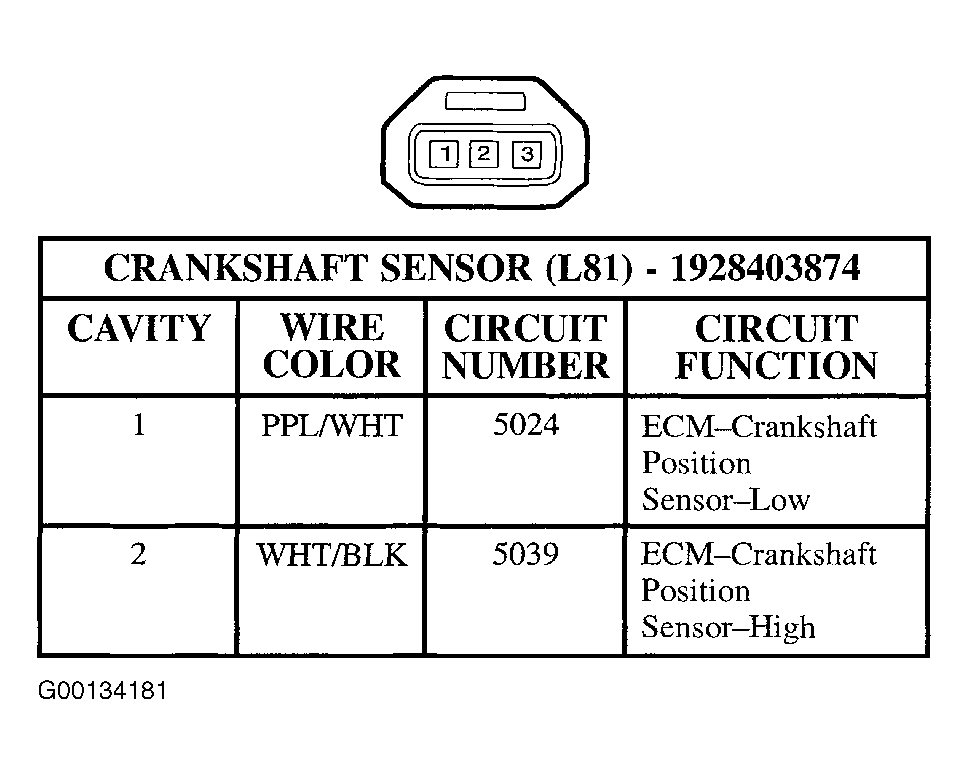

Fig 4: Identifying CKP Sensor Connector Terminals

G00134181

Courtesy of GENERAL MOTORS CORP.

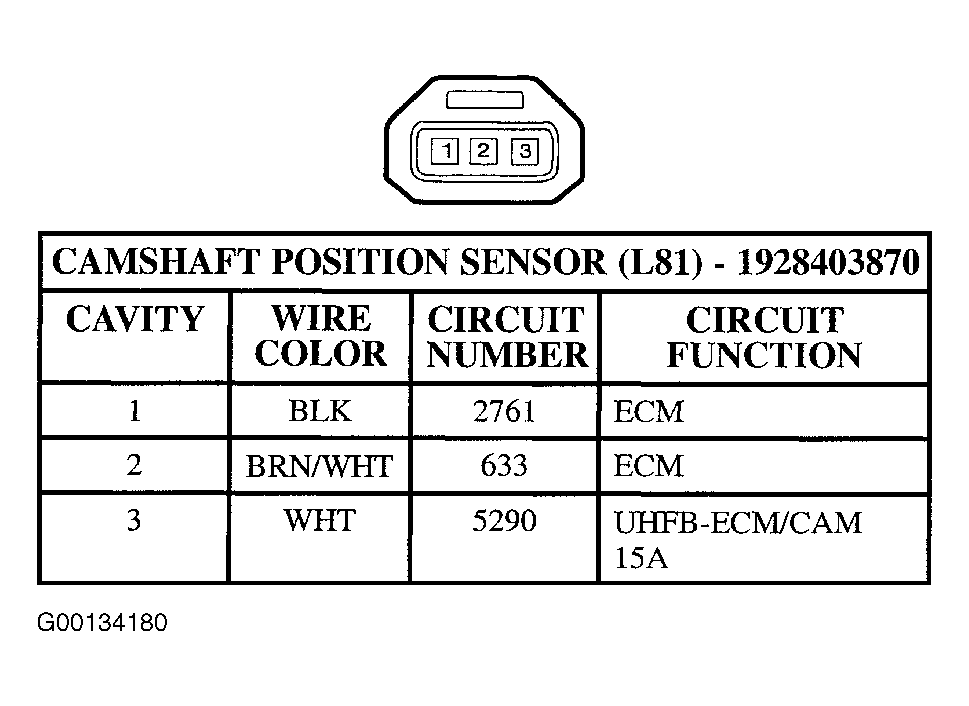

Fig 5: Identifying CMP Sensor Connector Terminals

G00134180

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Cruise Brake Switch Connector Terminals

G00134149

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying DLC Terminals

G00134176

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying EBTCM Connector terminals (1 Of 2)

G00134150

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying EBTCM Connector terminals (2 Of 2)

G00134151

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying ECM Connector J1 Terminals (1 Of 4)

G00140463

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying ECM Connector J1 Terminals (2 Of 4)

G00140464

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying ECM Connector J1 Terminals (3 Of 4)

G00140465

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying ECM Connector J1 Terminals (4 Of 4)

G00140466

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying ECM Connector J2 Terminals (1 Of 4)

G00140467

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying ECM Connector J2 Terminals (2 Of 4)

G00140468

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying ECM Connector J2 Terminals (3 Of 4)

G00140469

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying ECM Connector J2 Terminals (4 Of 4)

G00140470

Courtesy of GENERAL MOTORS CORP.

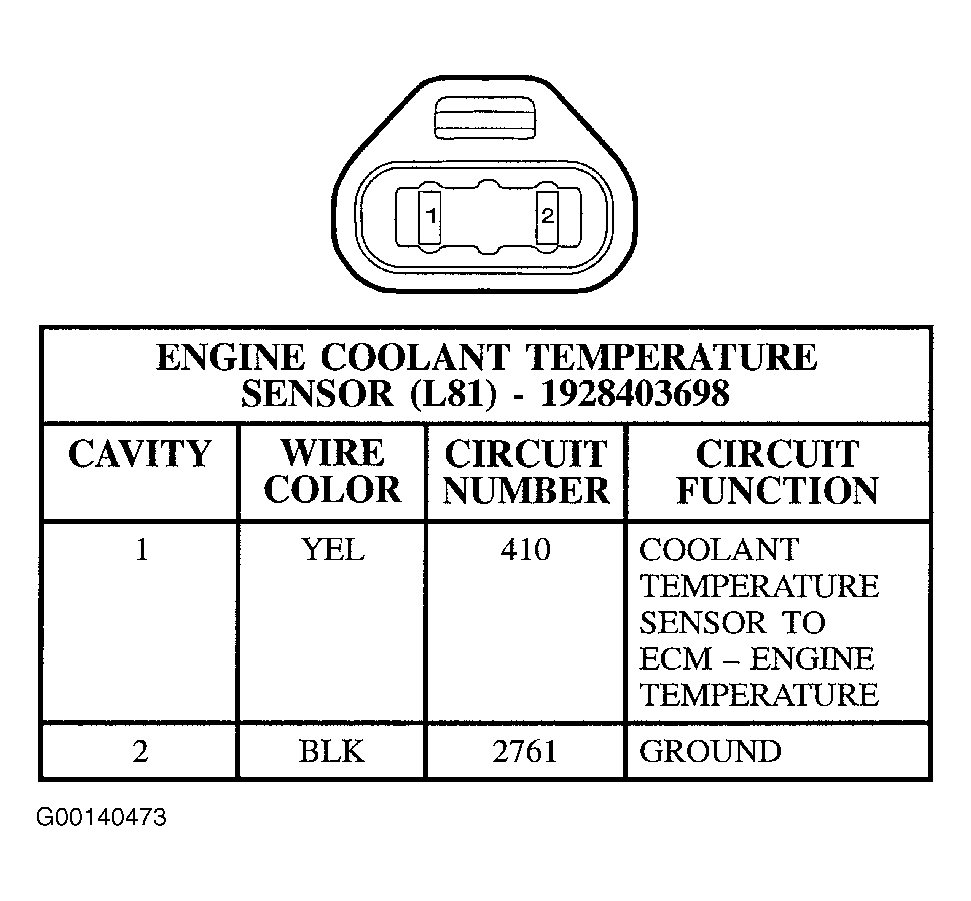

Fig 18: Identifying ECT Sensor Connector Terminals

G00140473

Courtesy of GENERAL MOTORS CORP.

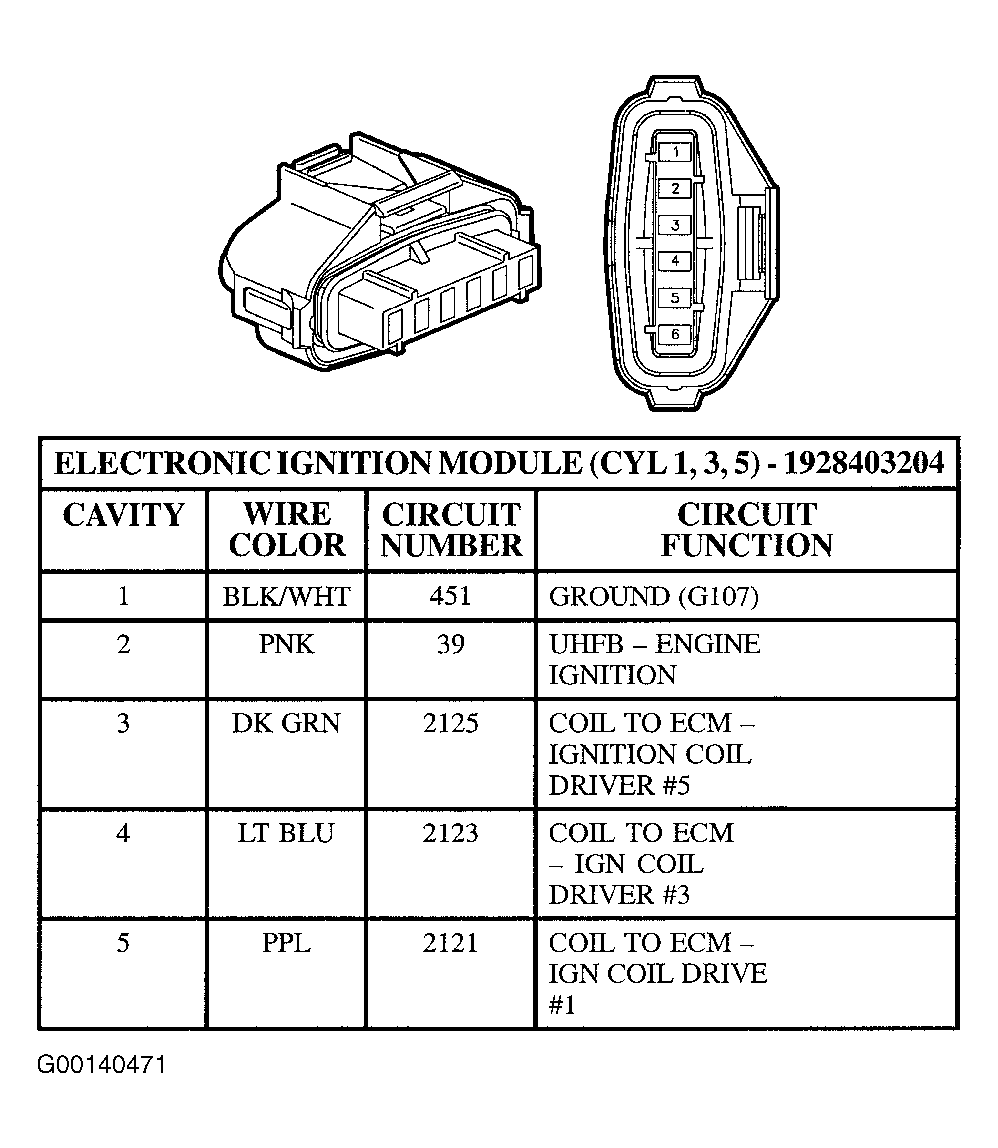

Fig 19: Identifying Electronic Ignition Module (Cyl. 1, 3 & 5) Connector Terminals

G00140471

Courtesy of GENERAL MOTORS CORP.

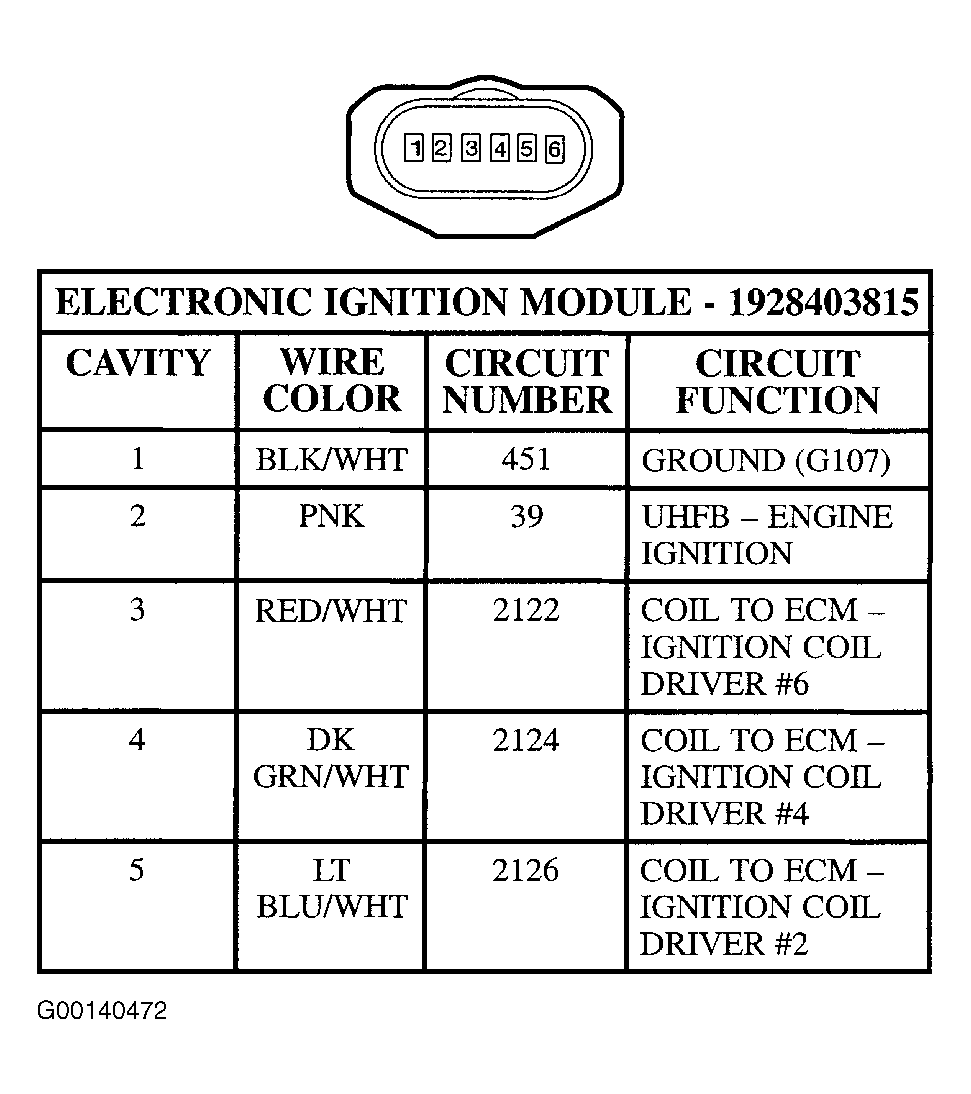

Fig 20: Identifying Electronic Ignition Module (Cyl. 2, 4 & 6) Connector Terminals

G00140472

Courtesy of GENERAL MOTORS CORP.

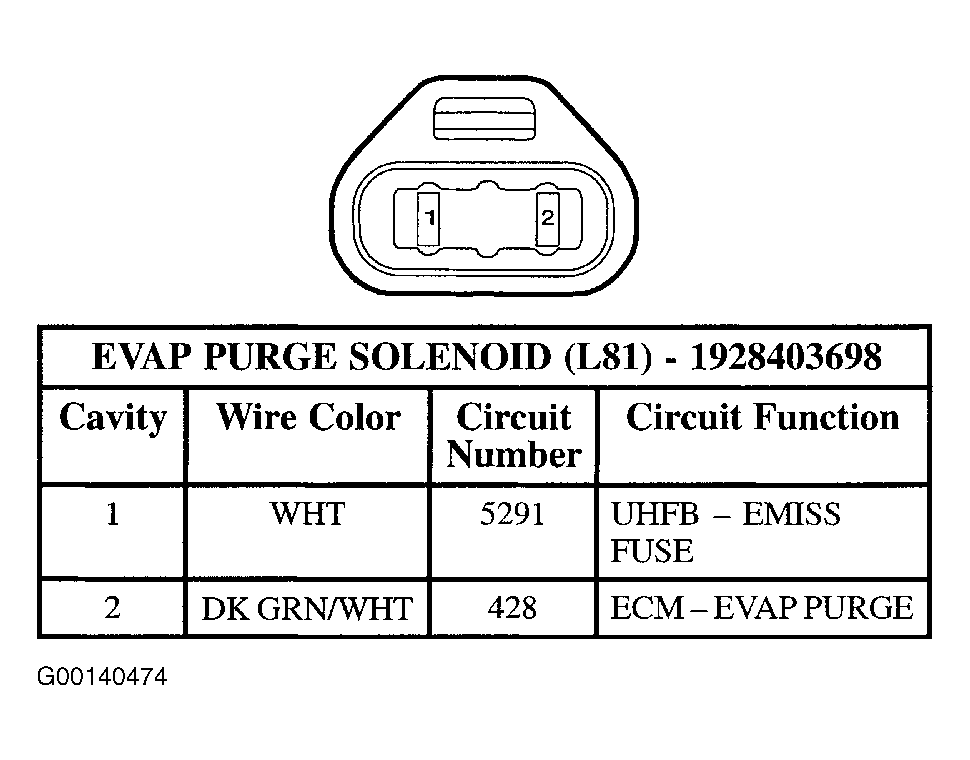

Fig 21: Identifying EVAP Purge Solenoid Connector Terminals

G00140474

Courtesy of GENERAL MOTORS CORP.

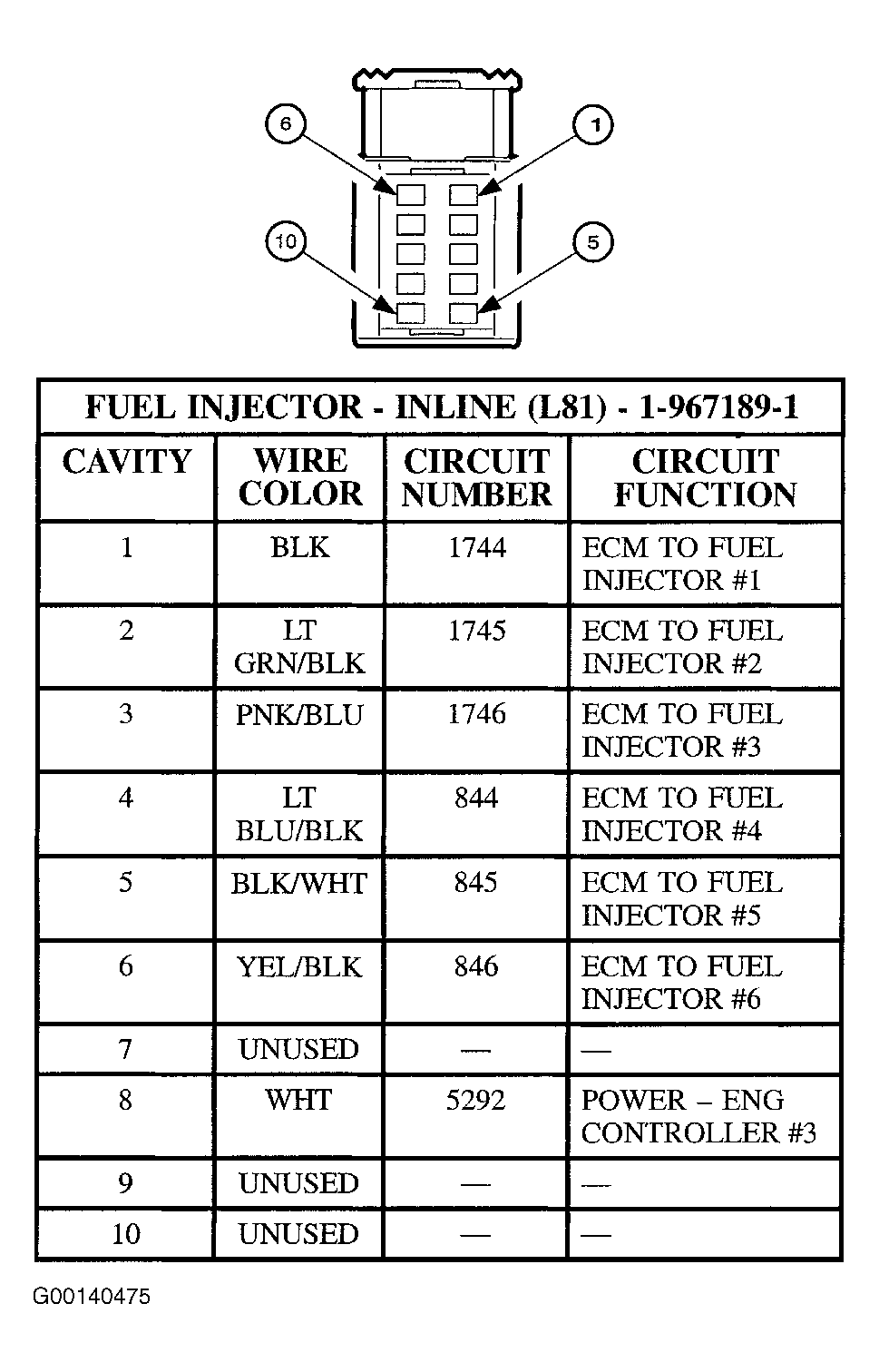

Fig 22: Identifying Fuel Injector In-Line Connector Terminals

G00140475

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying Fuel Pump Assembly Connector Terminals

G00134165

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying Fuel Tank In-Line Connector Terminals

G00134166

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying FTP Sensor Connector Terminals

G00134167

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Generator Connector Terminals

G00134168

Courtesy of GENERAL MOTORS CORP.

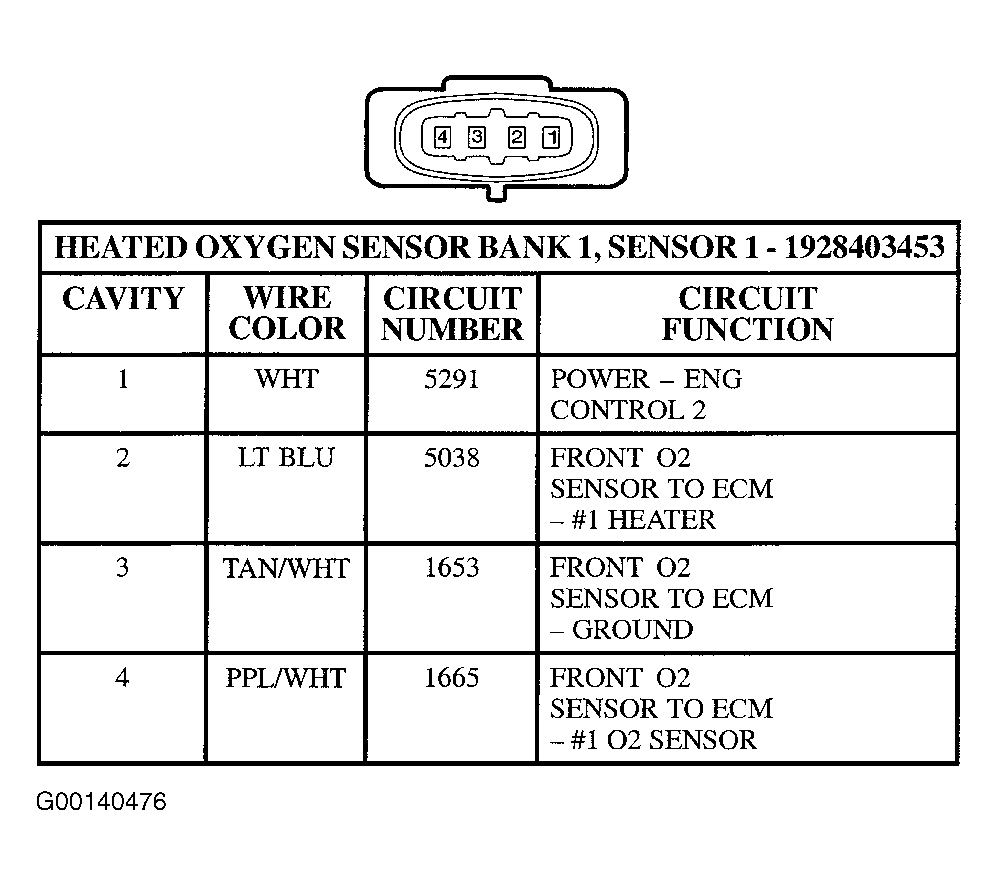

Fig 27: Identifying HO2S Bank 1 Sensor 1 Connector Terminals

G00140476

Courtesy of GENERAL MOTORS CORP.

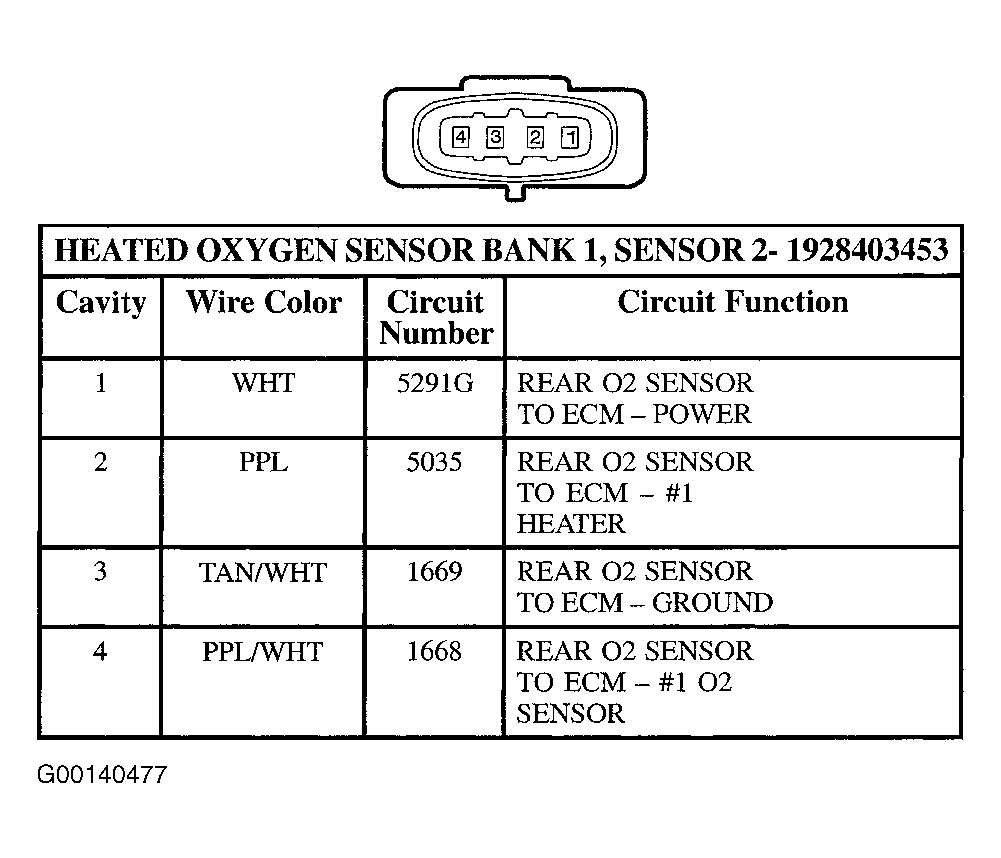

Fig 28: Identifying HO2S Bank 1 Sensor 2 Connector Terminals

G00140477

Courtesy of GENERAL MOTORS CORP.

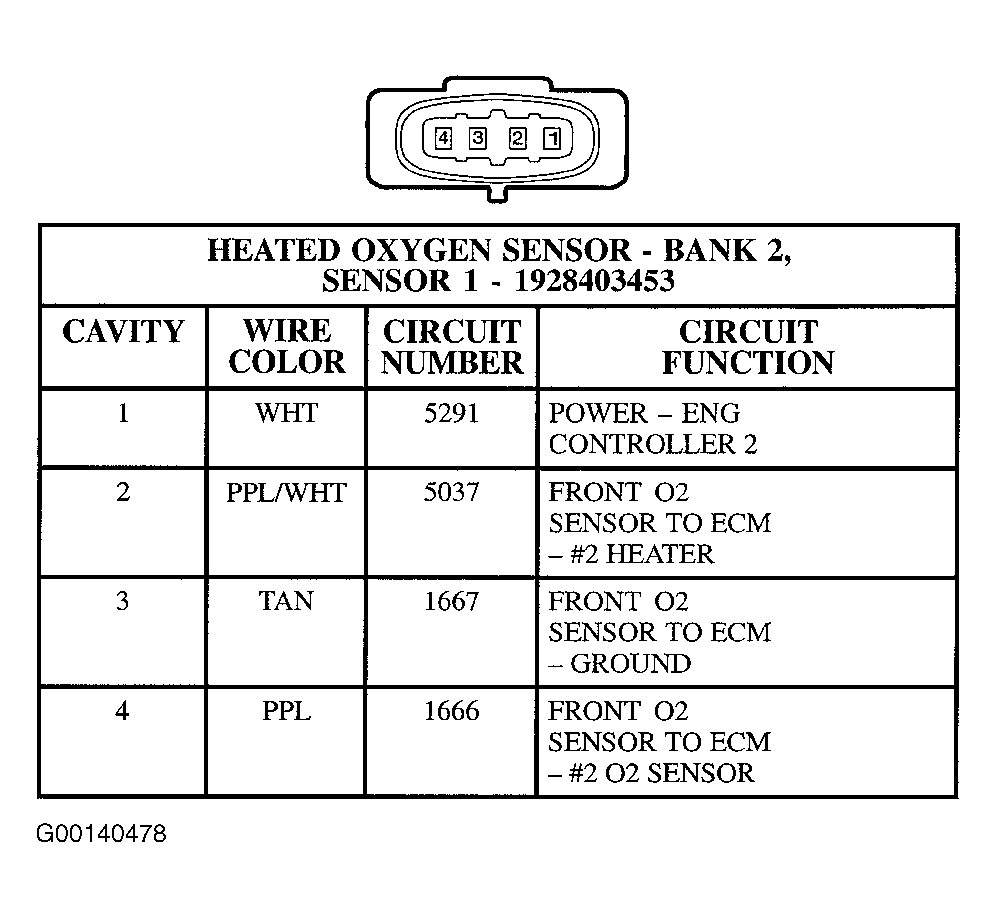

Fig 29: Identifying HO2S Bank 2 Sensor 1 Connector Terminals

G00140478

Courtesy of GENERAL MOTORS CORP.

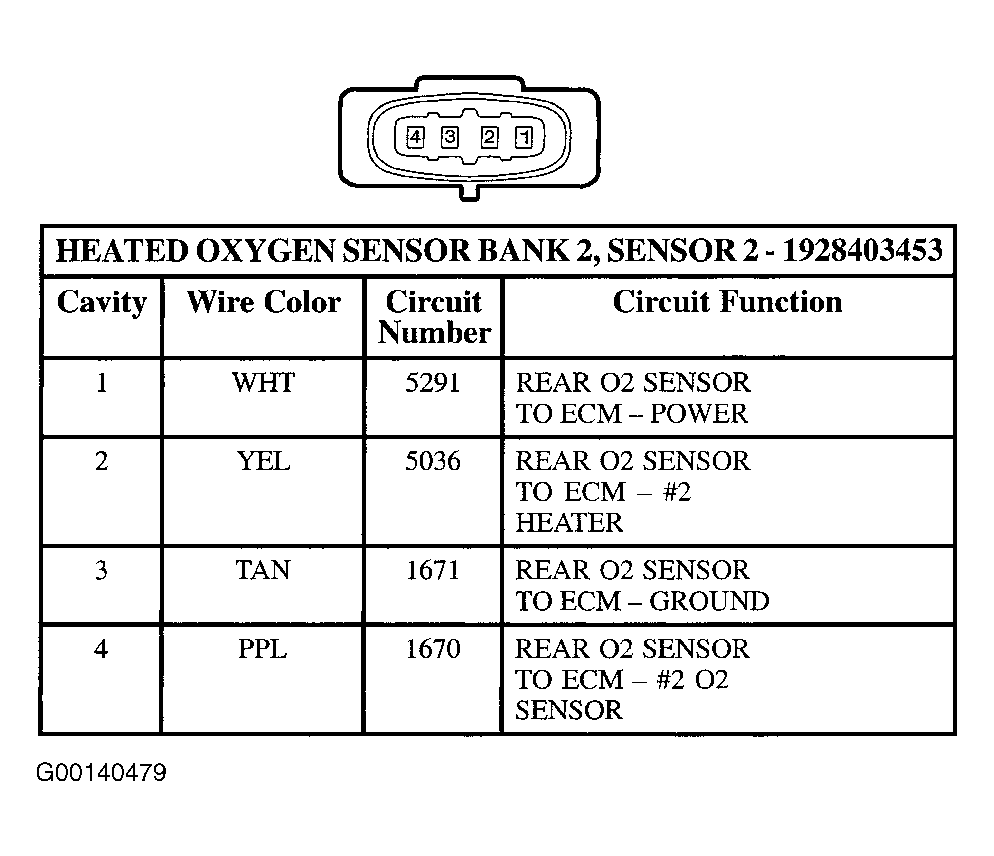

Fig 30: Identifying HO2S Bank 2 Sensor 2 Connector Terminals

G00140479

Courtesy of GENERAL MOTORS CORP.

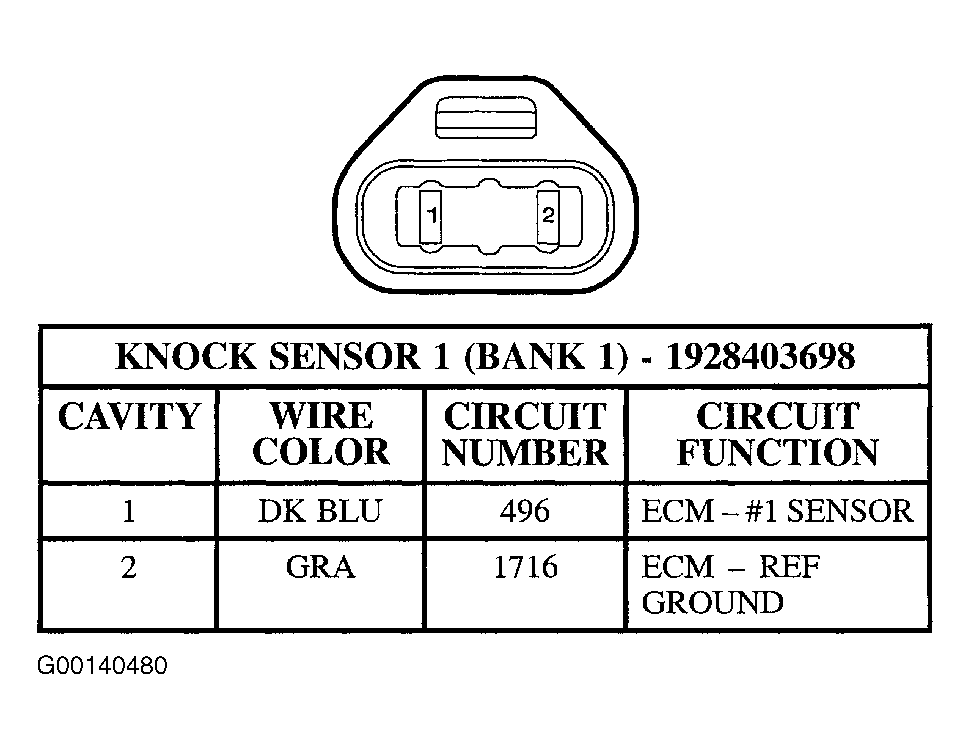

Fig 31: Identifying Knock Sensor 1 Connector Terminals

G00140480

Courtesy of GENERAL MOTORS CORP.

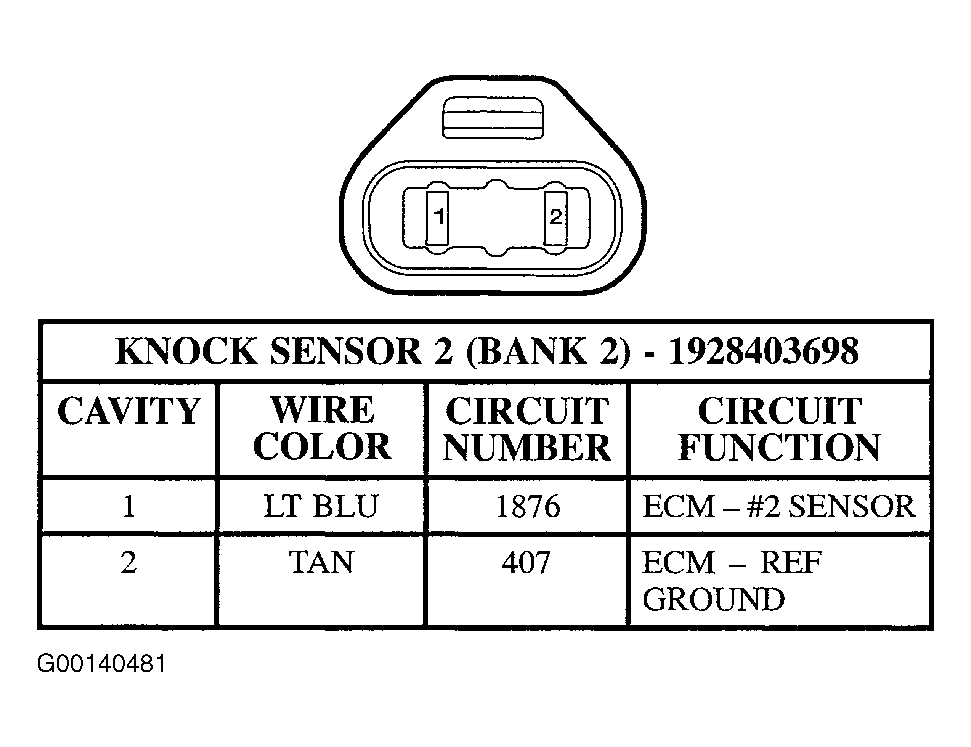

Fig 32: Identifying Knock Sensor 2 Connector Terminals

G00140481

Courtesy of GENERAL MOTORS CORP.

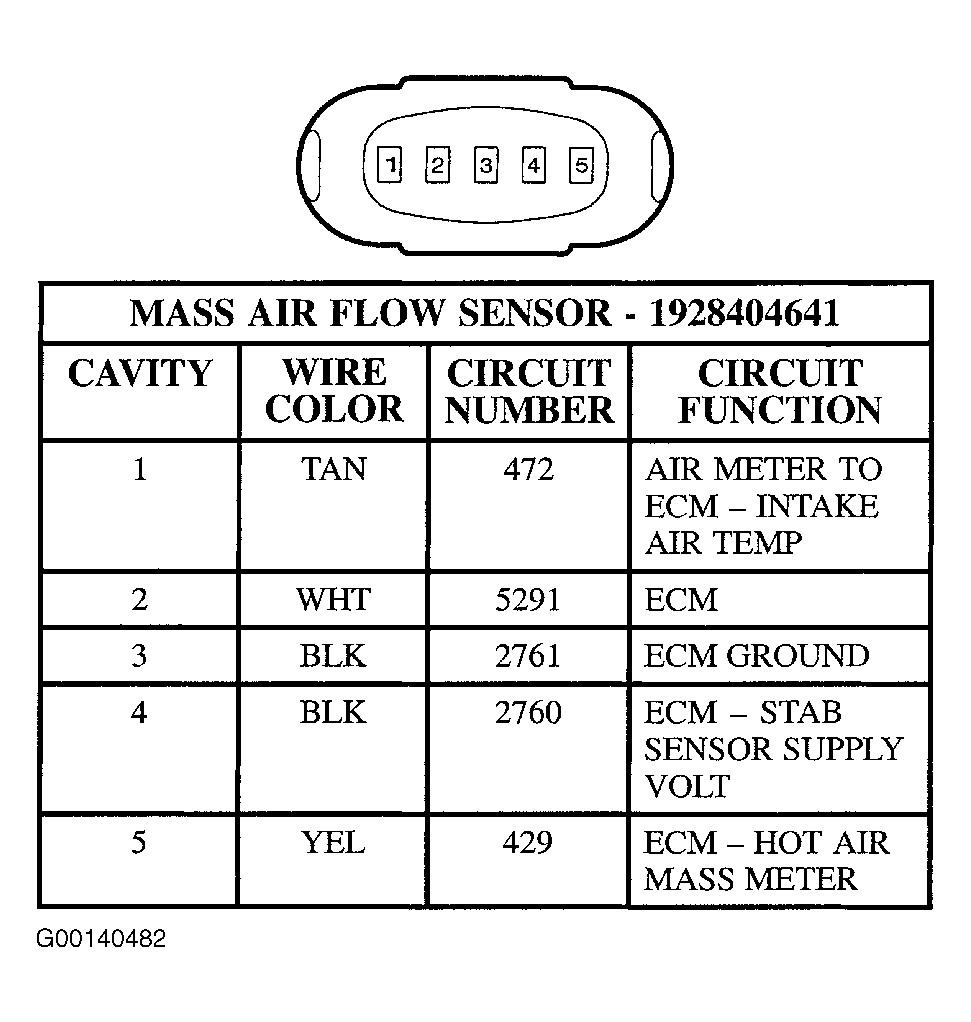

Fig 33: Identifying MAF Sensor Connector Terminals

G00140482

Courtesy of GENERAL MOTORS CORP.

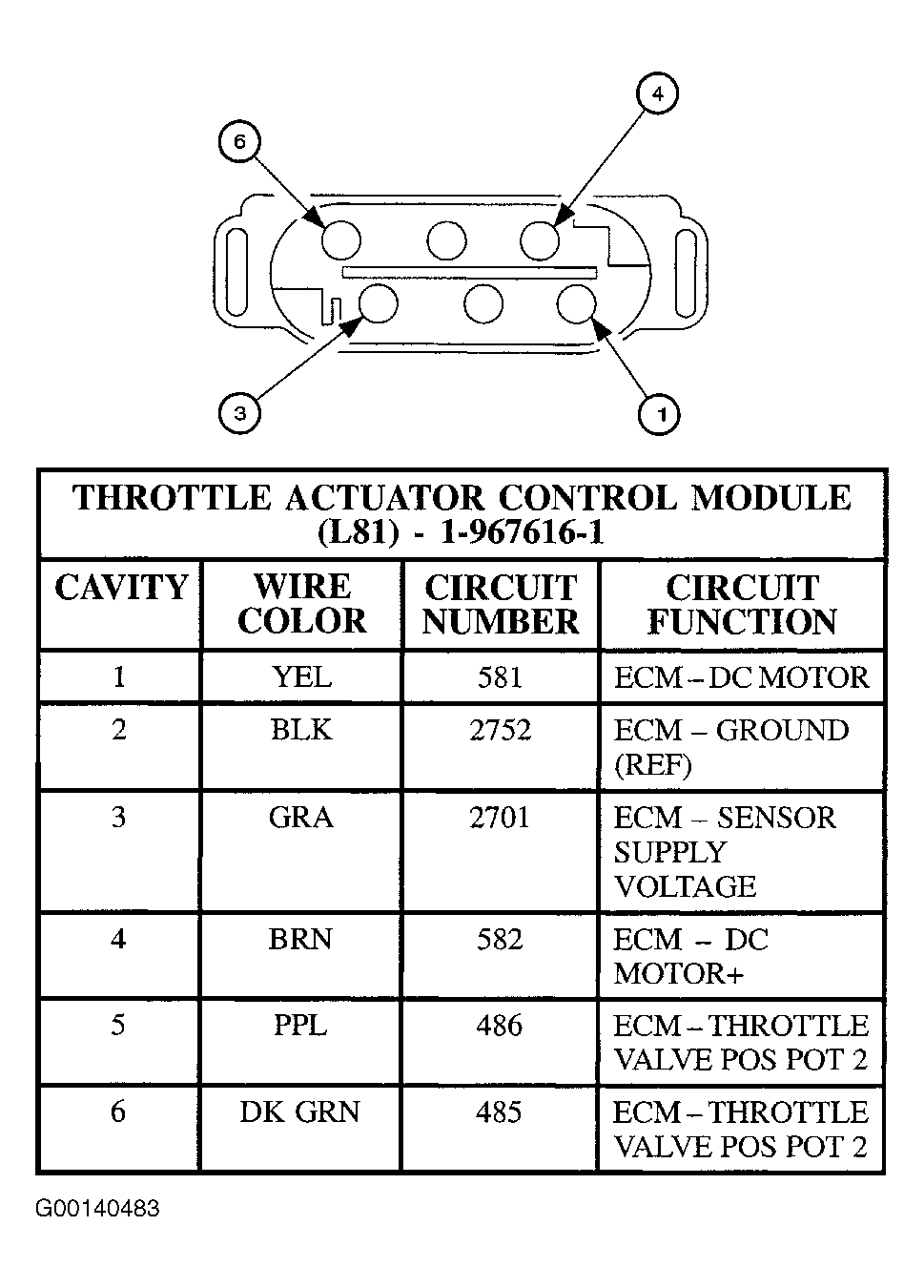

Fig 34: Identifying Throttle Actuator Control Module Connector Terminals

G00140483

Courtesy of GENERAL MOTORS CORP.
