Home
>>
Saturn
>>
2002
>>
VUE V6-3.0L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Control Module, A/T
>>
Transaxle Control Module (TCM) Connector B
Transaxle Control Module (TCM) Connector B

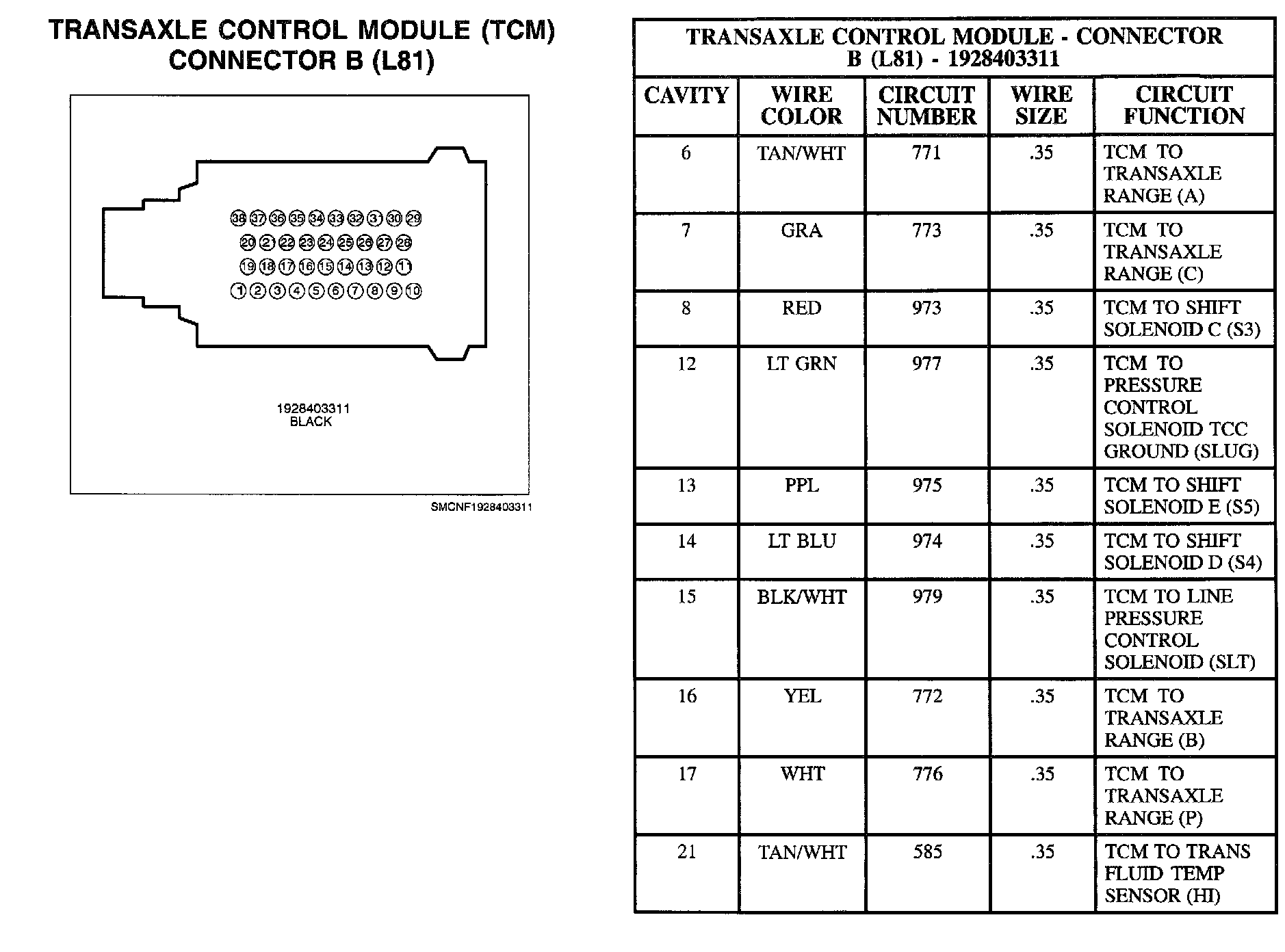

Transaxle Control Module (TCM) Connector B (L81) Part 1:

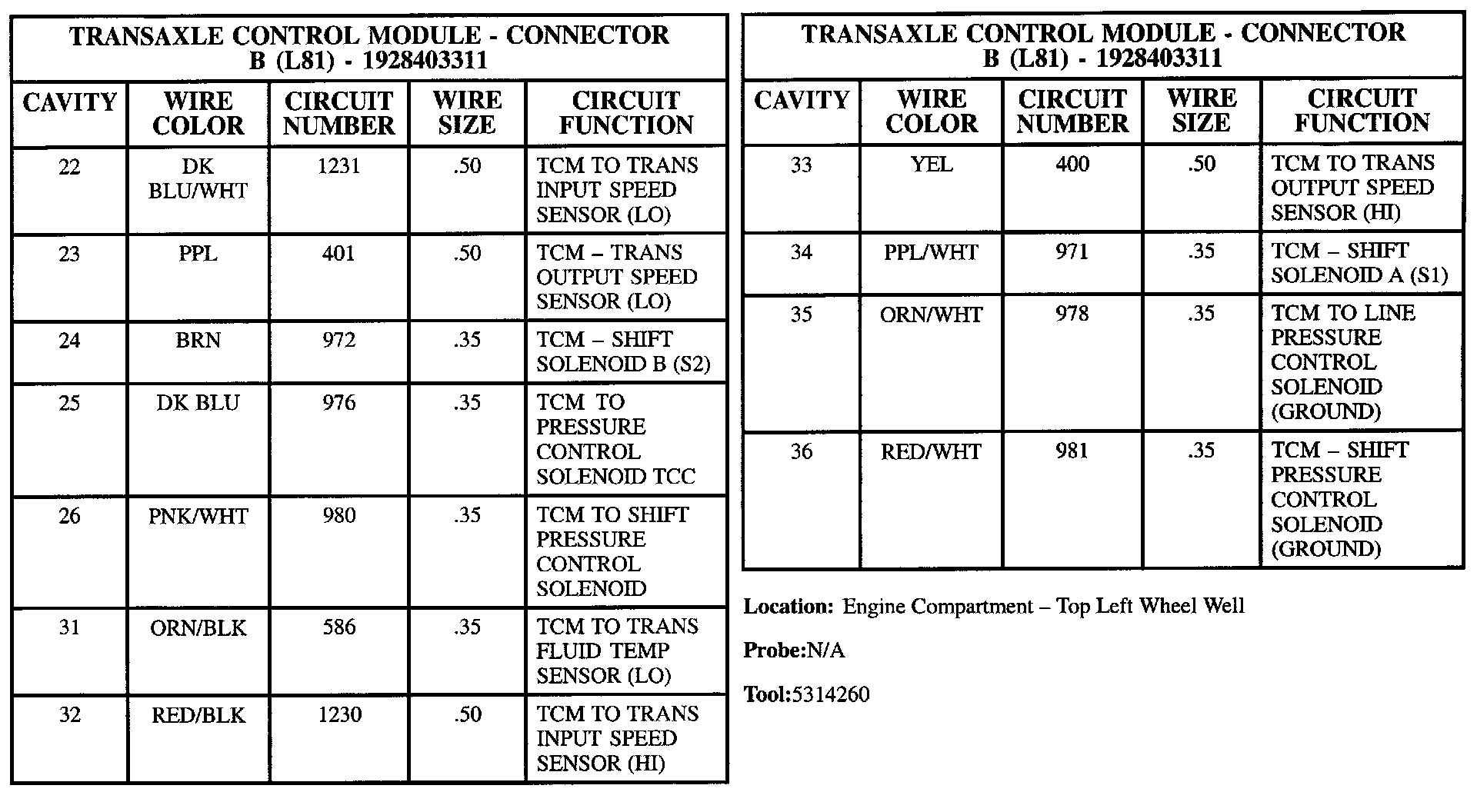

Transaxle Control Module - Connector B (L81) Part 2:
