Home >> Saturn >> 2002 >> VUE L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Continuously Variable Transmission/Transaxle, CVT >> Transmission Position Sensor/Switch, CVT

Transmission Position Sensor/Switch, CVT

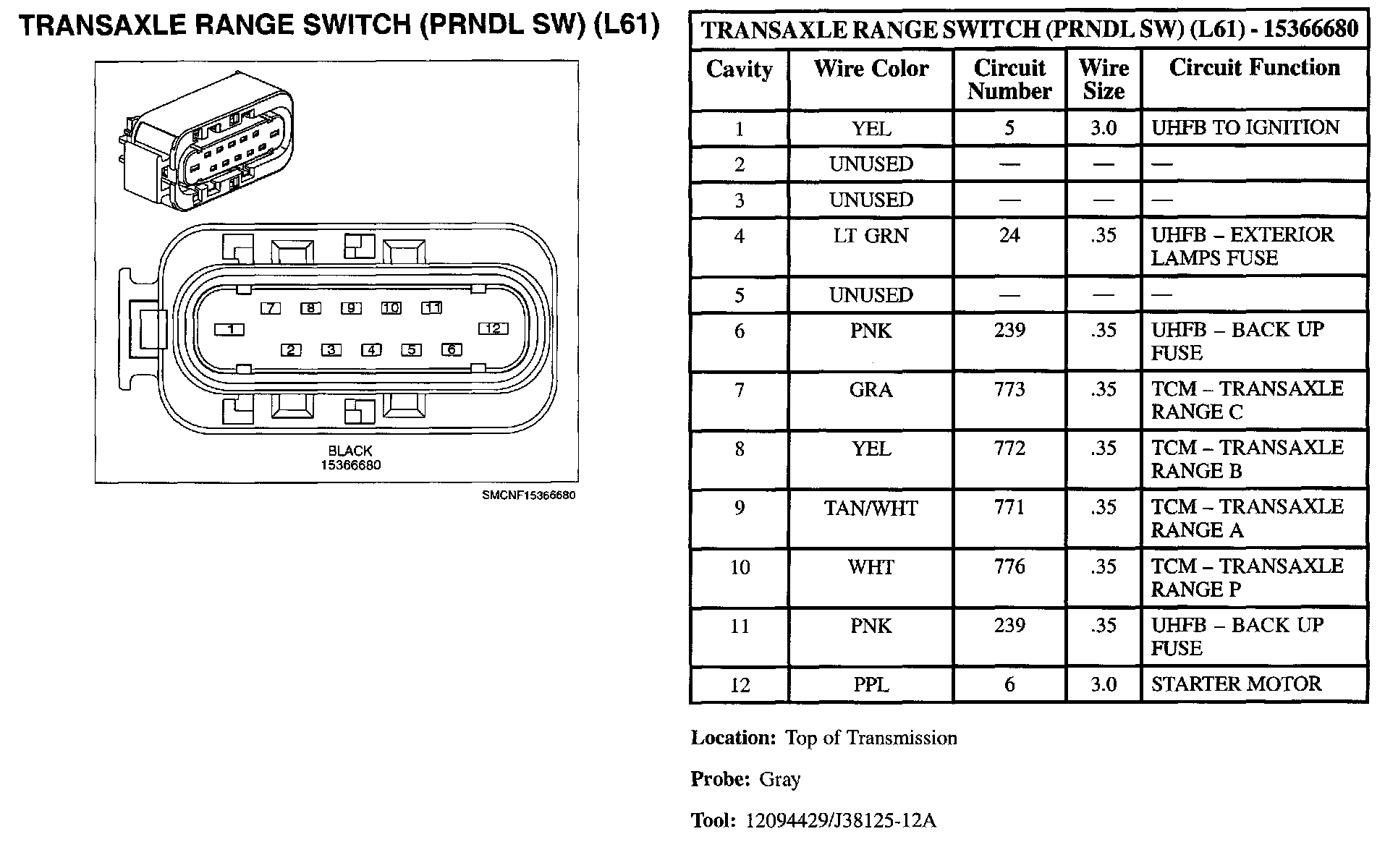

Trasaxle Range Switch (PRNDL SW) L61:
