Cellular Phone
>>
Onstar Communication Interface Module (CIM) J1
Onstar Communication Interface Module (CIM) J1

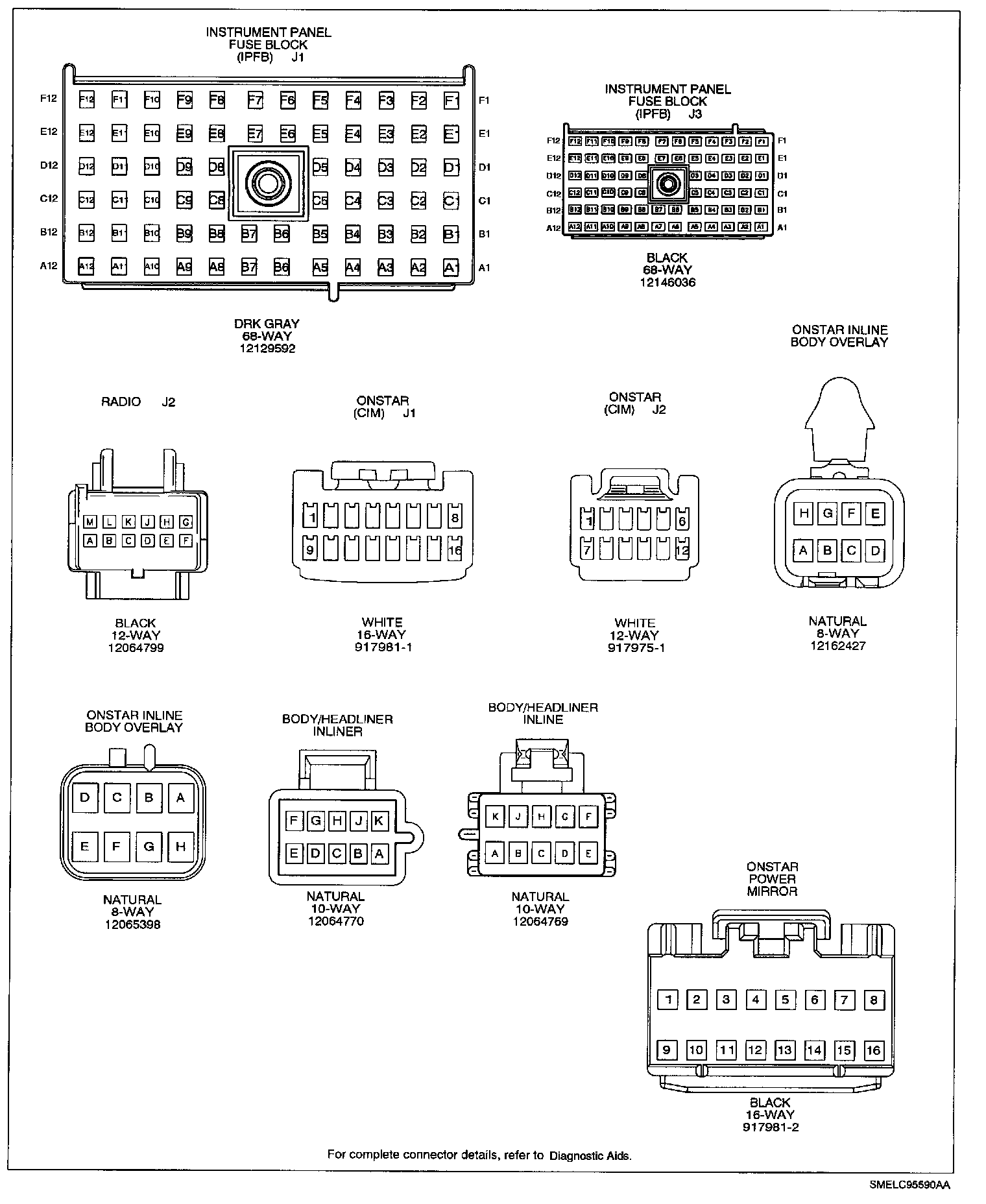

Onstar System Connector Face Views:

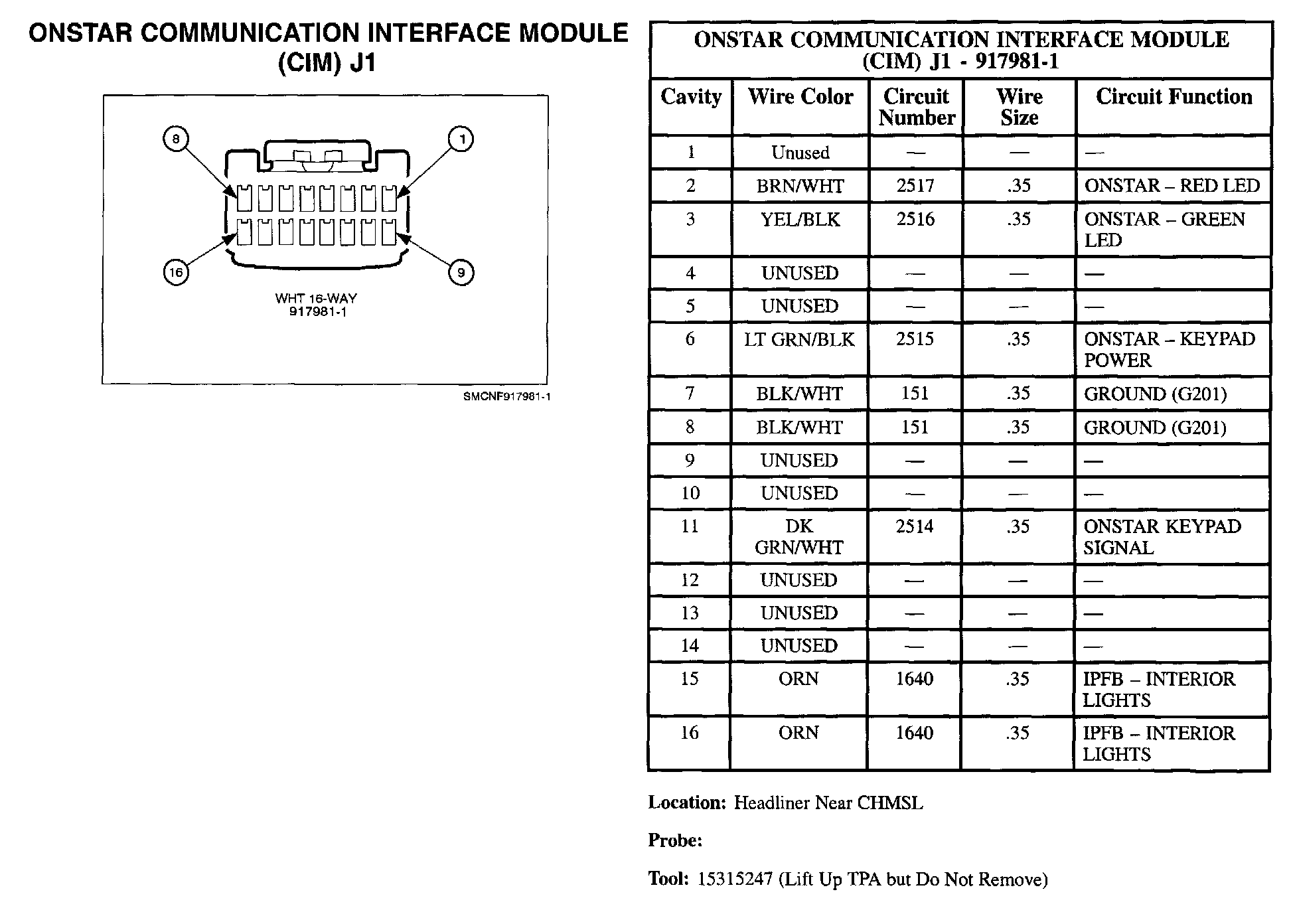

Onstar Communication Interface Module (CIM) J1:
