Home >> Saturn >> 2002 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry

Keyless Entry

RKE/Security System Connector Face Views:

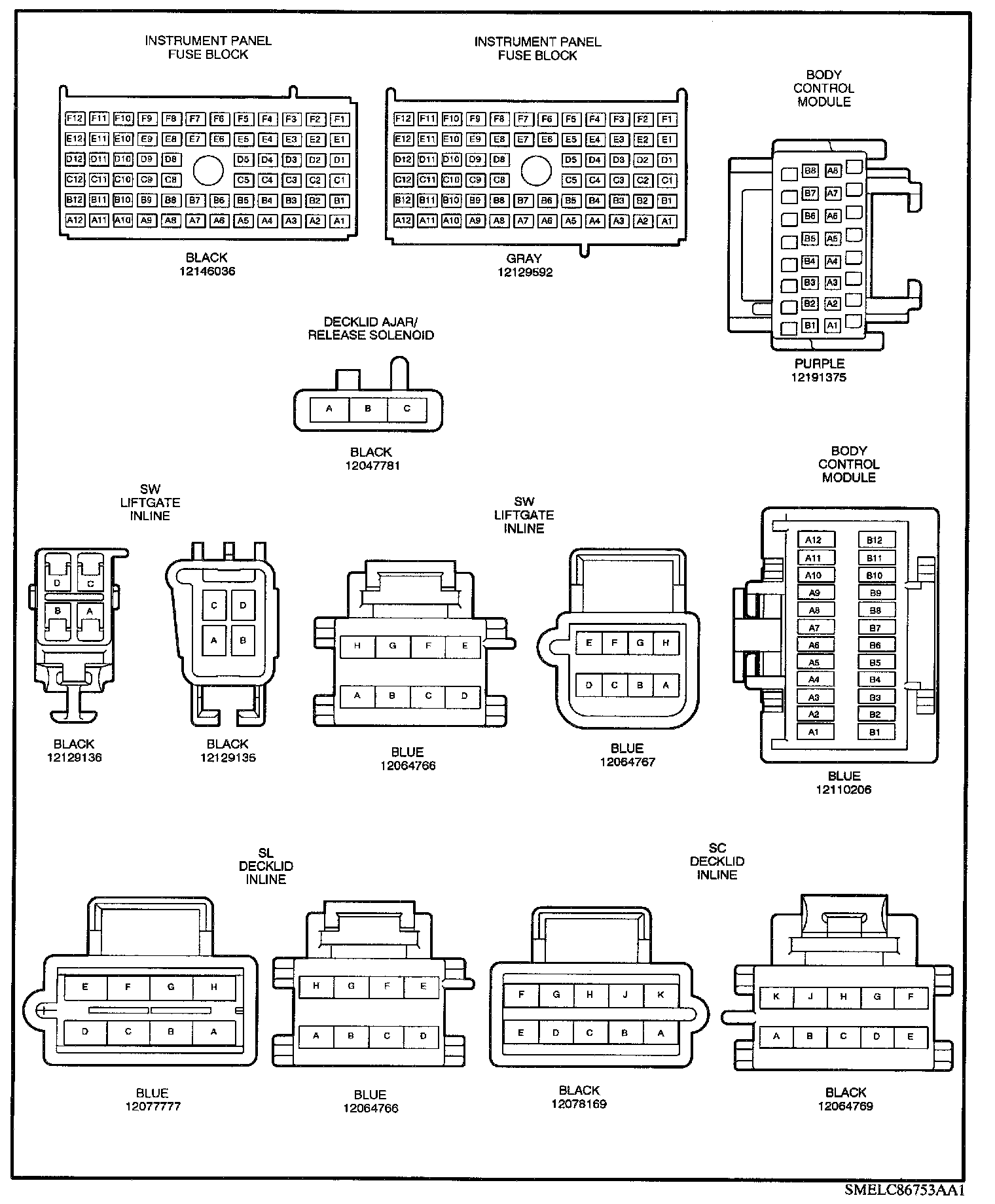

Declid/Liftgate Release Connector Face Views:
