Trunk / Liftgate Lock

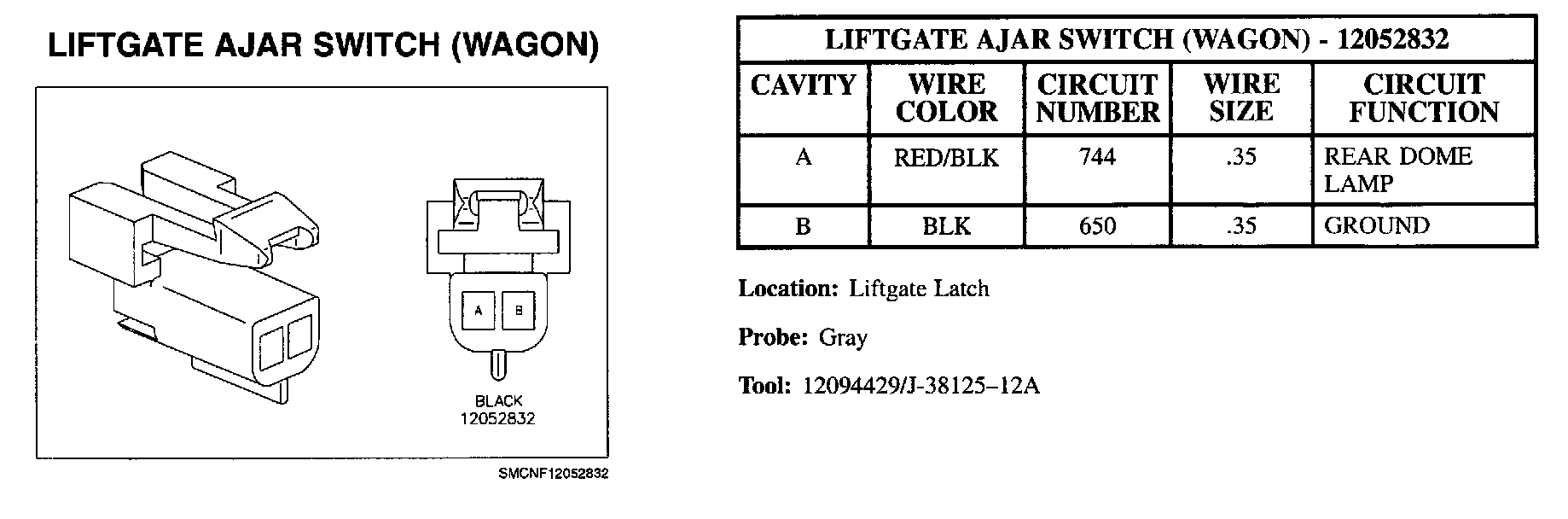

Liftgate Ajar Switch (Wagon):

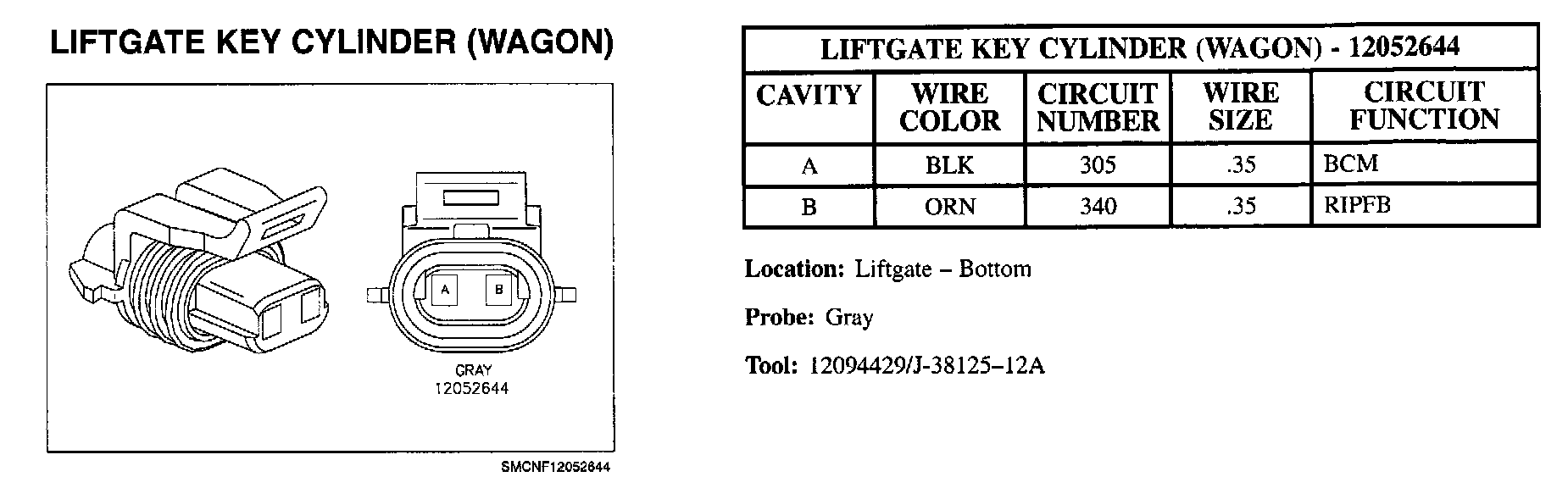

Liftgate Key Cylinder (Wagon):



Liftgate Release Motor (Wagon):
