J2

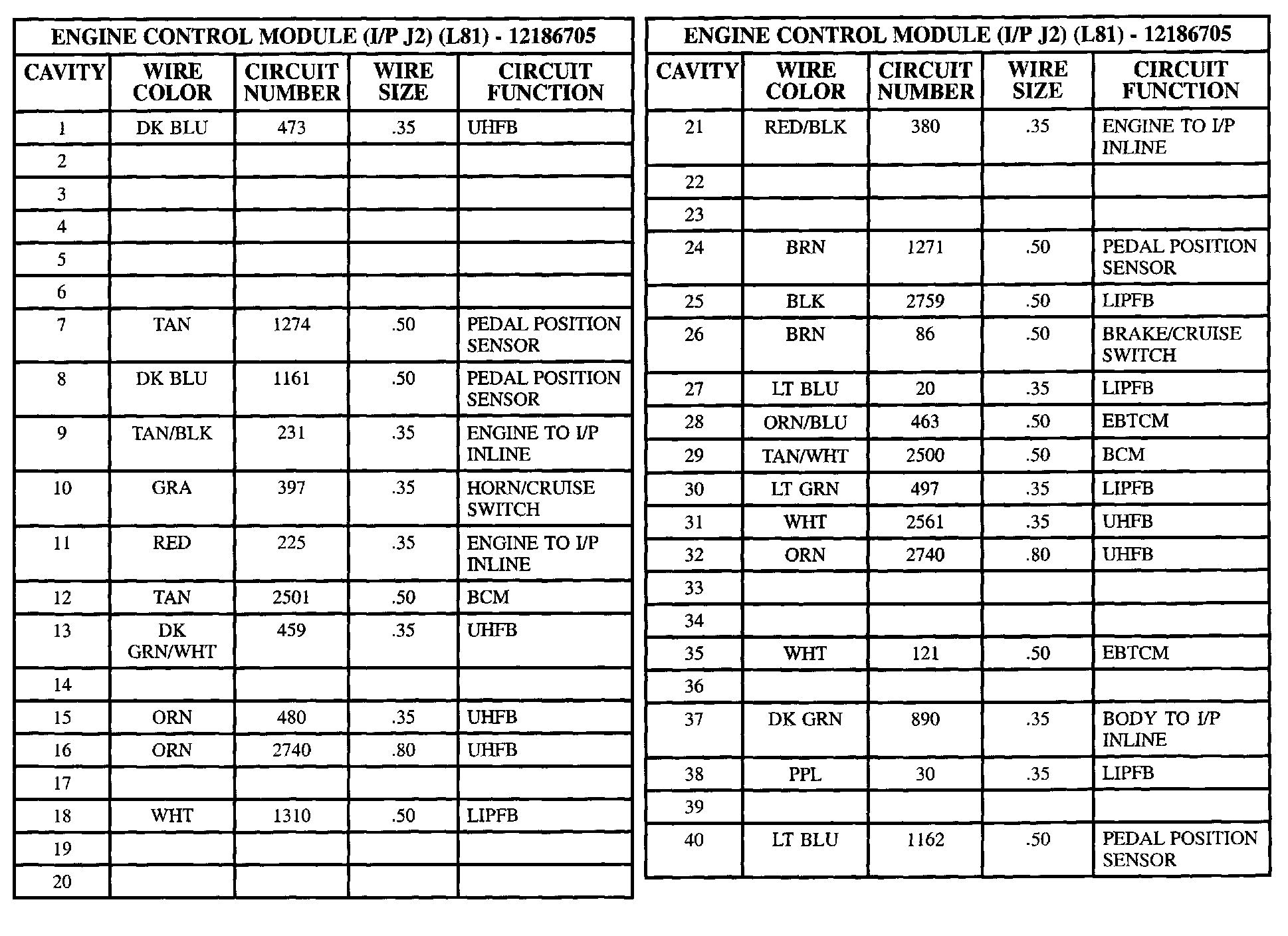

Engine Control Module (I/P J2) Part 1:

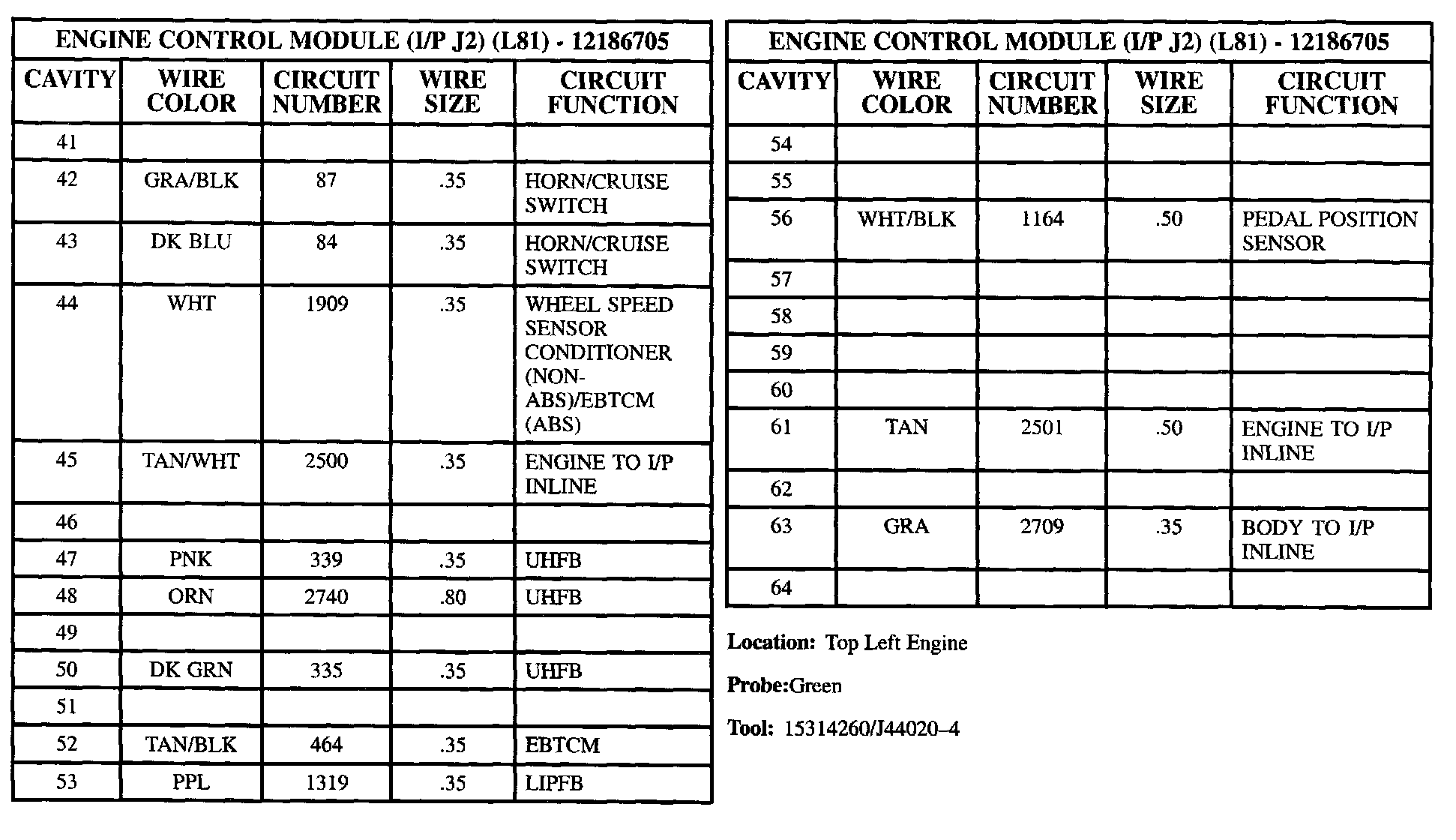

Engine Control Module (I/P J2) Part 2:

Engine Control Module (I/P J2) Part 3:
