J1

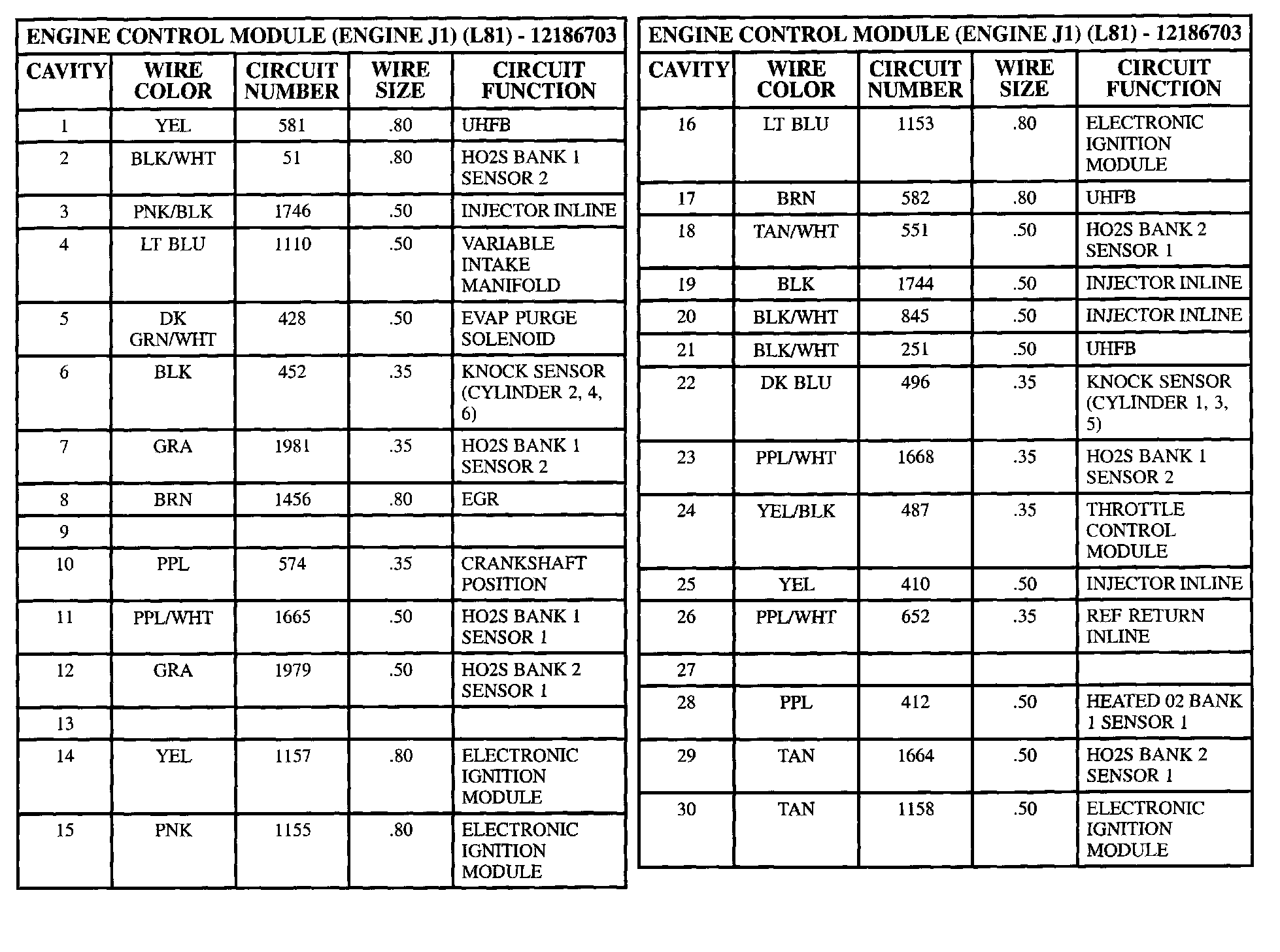

Engine Control Module (Engine J1) Part 1:

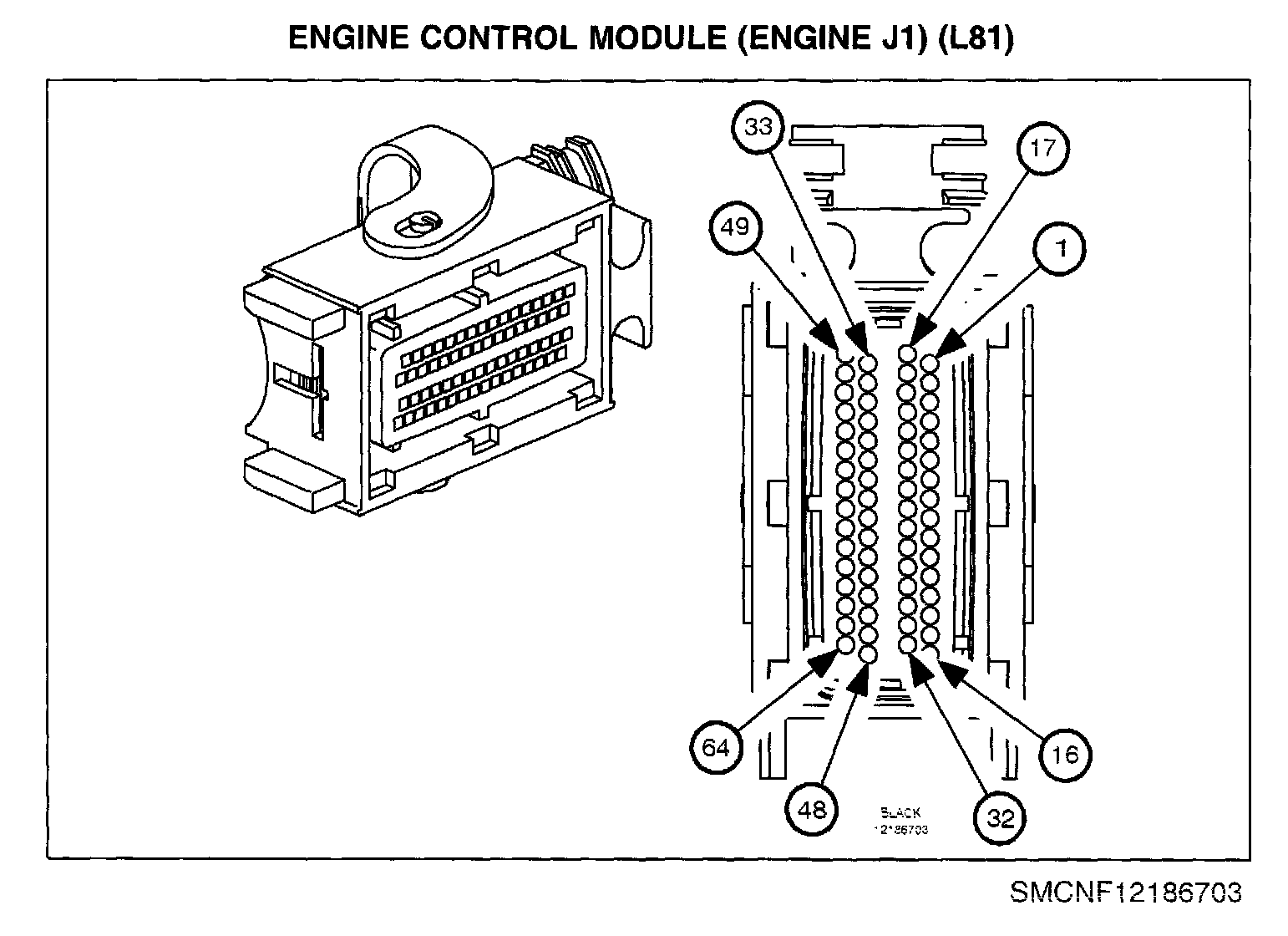

Engine Control Module (Engine J1) Part 2:

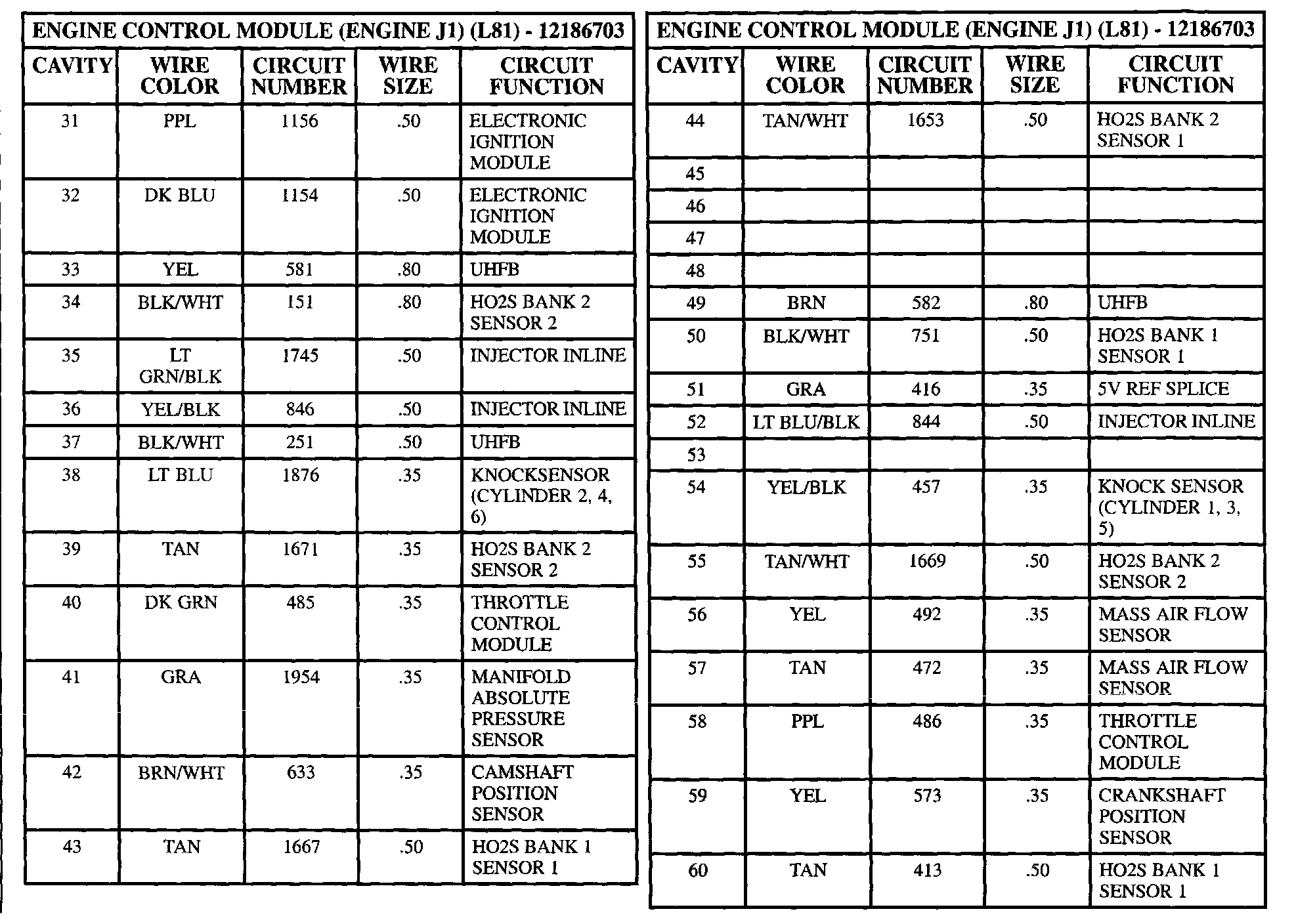

Engine Control Module (Engine J1) Part 3:




Engine Control Module (Engine J1) Part 4:
