Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Connector Views

Connector Views

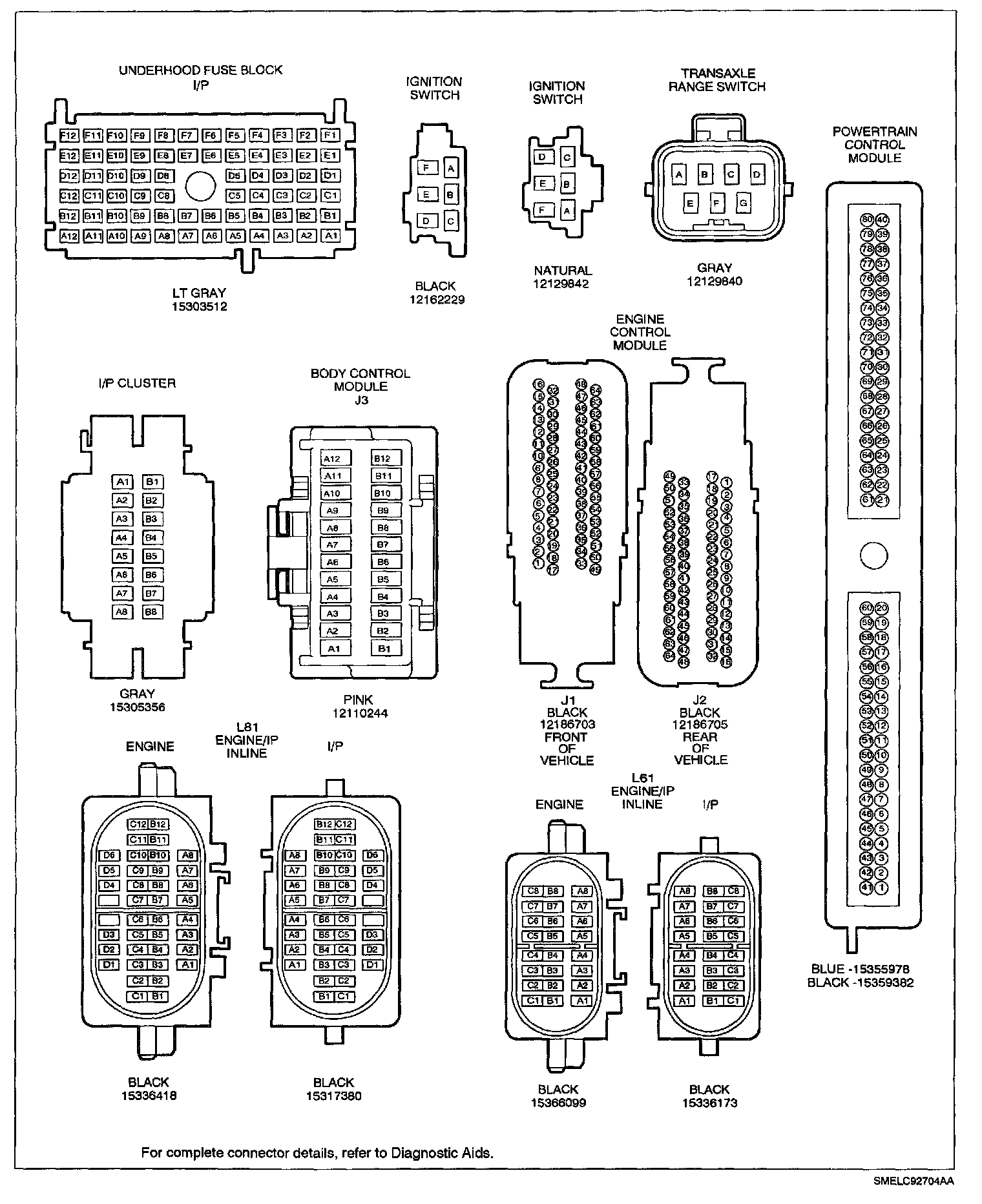

Starting And Charging Connector Face Views:
