Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications

System Specifications

SPECIFICATIONS

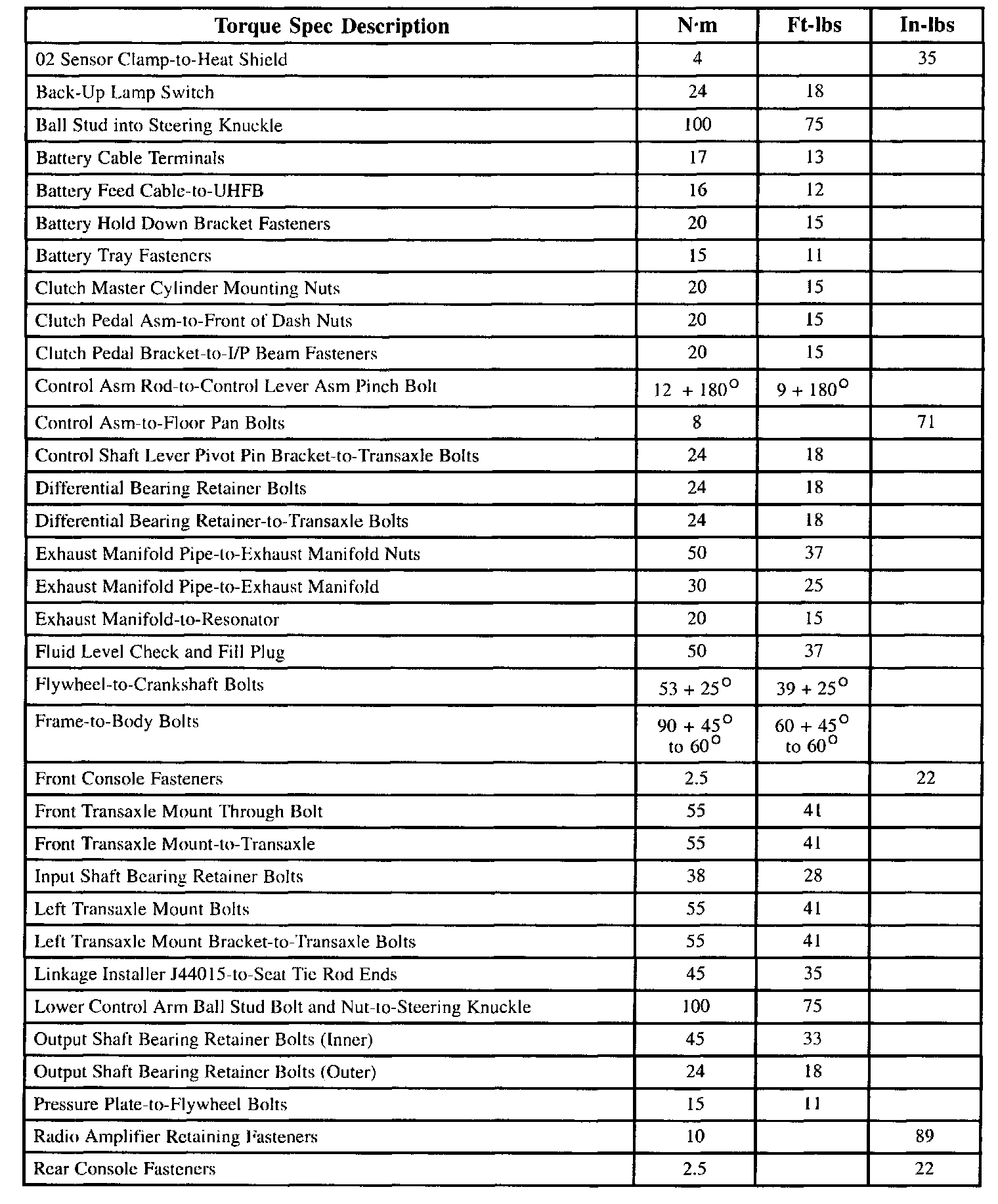

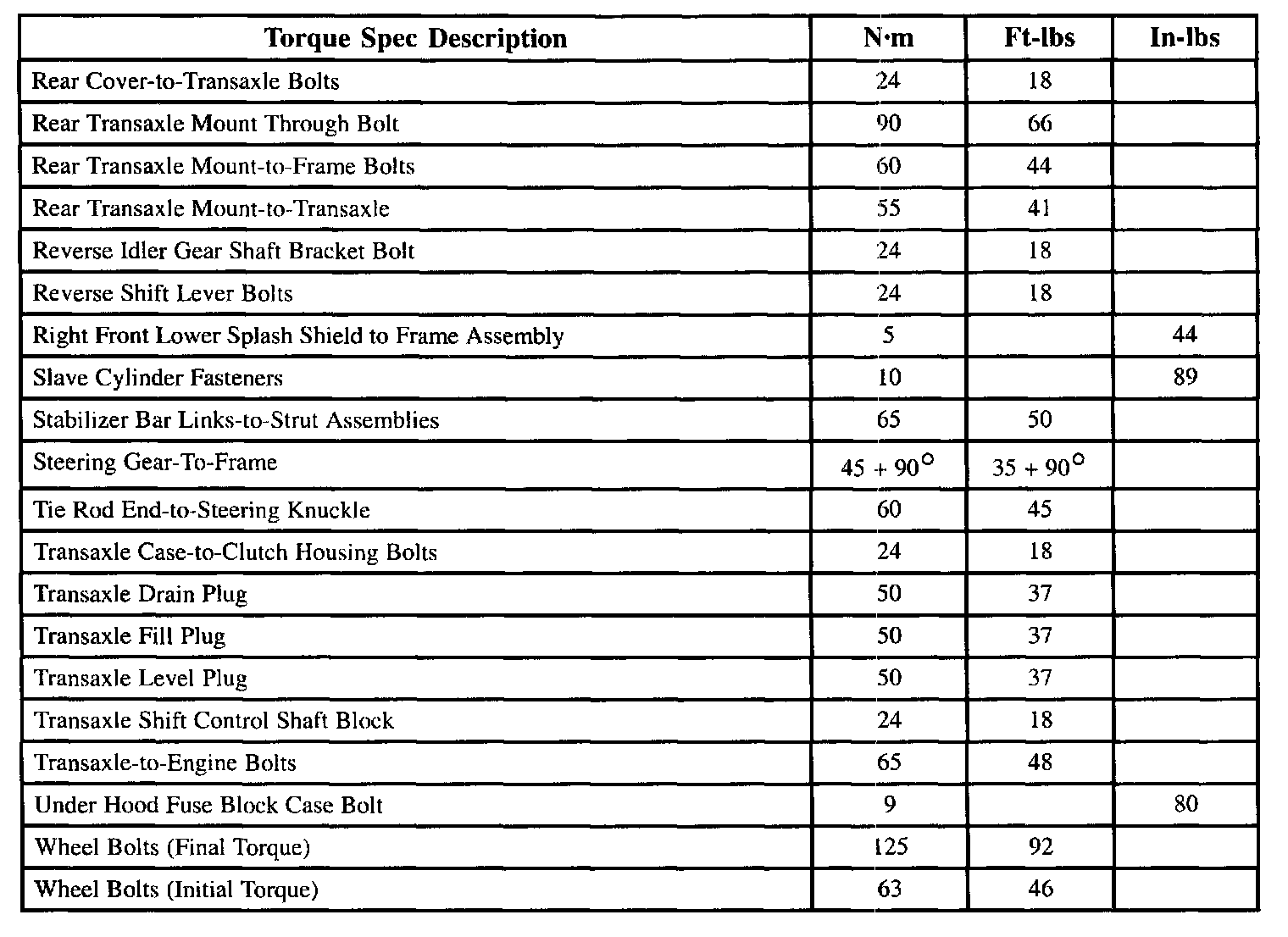

MANUAL TRANSAXLE TORQUE SPECIFICATIONS








GEAR TEETH COUNTS AND RATIOS

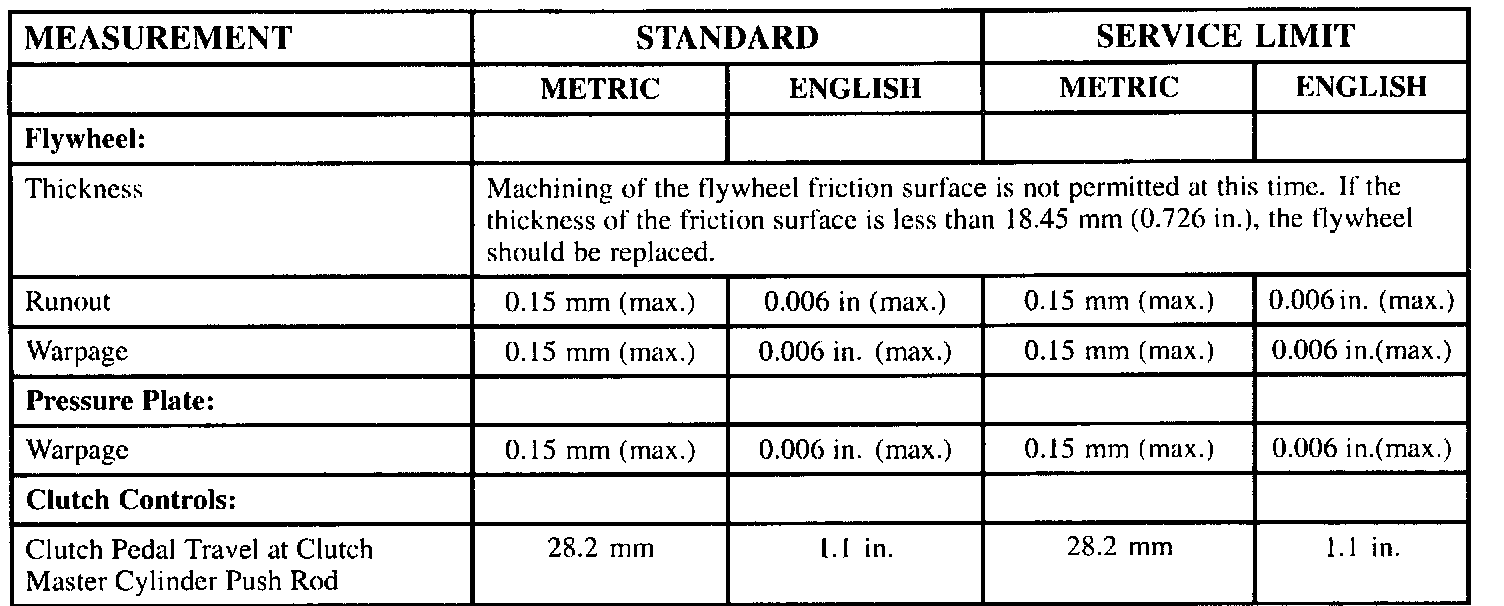

CLUTCH, CLUTCH CONTROLS AND FLYWHEEL





BLOCKING RING CLEARANCES





AXIAL PLAY SPECIFICATIONS
